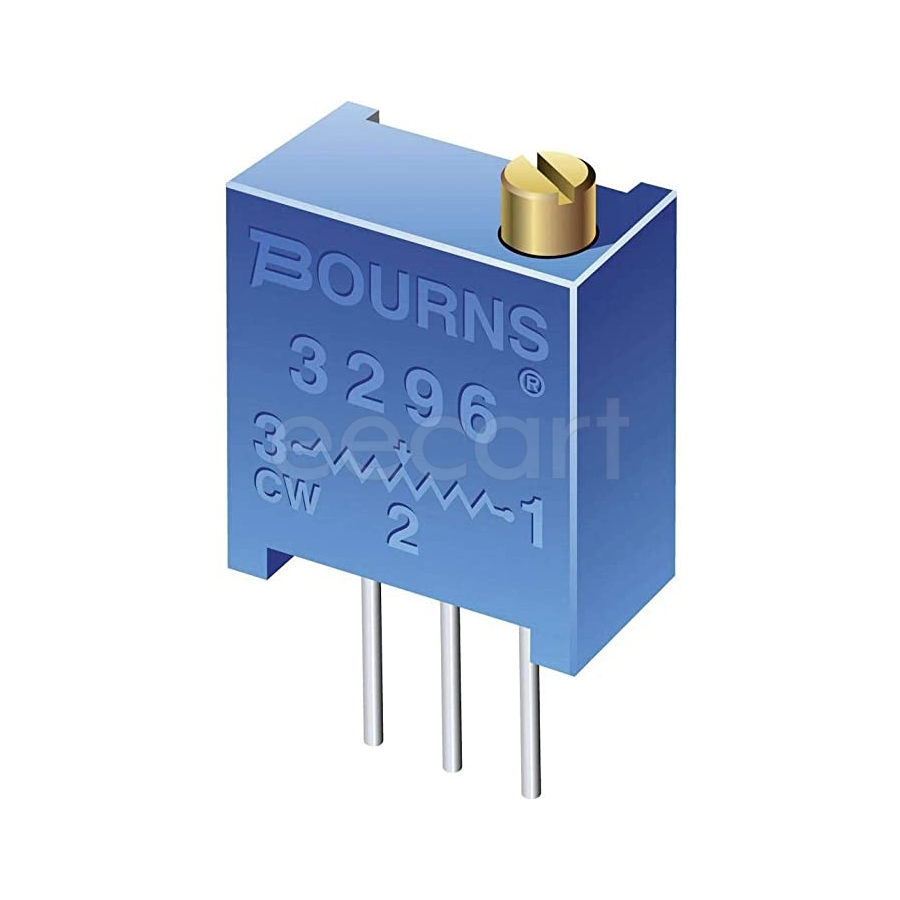

3296W-1-501LF
Manufacturer:
Bourns
Mfr.Part #:
3296W-1-501LF
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 500 Ω 10 % Number of Turns:25 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 9.53 mm |
| Width | 9.53 mm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Resistance | 500 Ω |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 25 |
| Taper | Linear |
| Height | 10.033 mm |
| Packaging | Tube |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 850.485694 mg |
| Contact Plating | Tin |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Color | Blue |
| Schedule B | 8533400080 |
Stock: 126
Distributors
pcbx
pcbxUnit Price$0.72038
Ext.Price$0.72038
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72038 | $0.72038 |
| 10 | $0.57658 | $5.76580 |
| 25 | $0.53907 | $13.47675 |
| 50 | $0.50400 | $25.20000 |
| 100 | $0.43737 | $43.73700 |
| 300 | $0.41538 | $124.61400 |
| 500 | $0.39450 | $197.25000 |
| 1000 | $0.37316 | $373.16000 |
