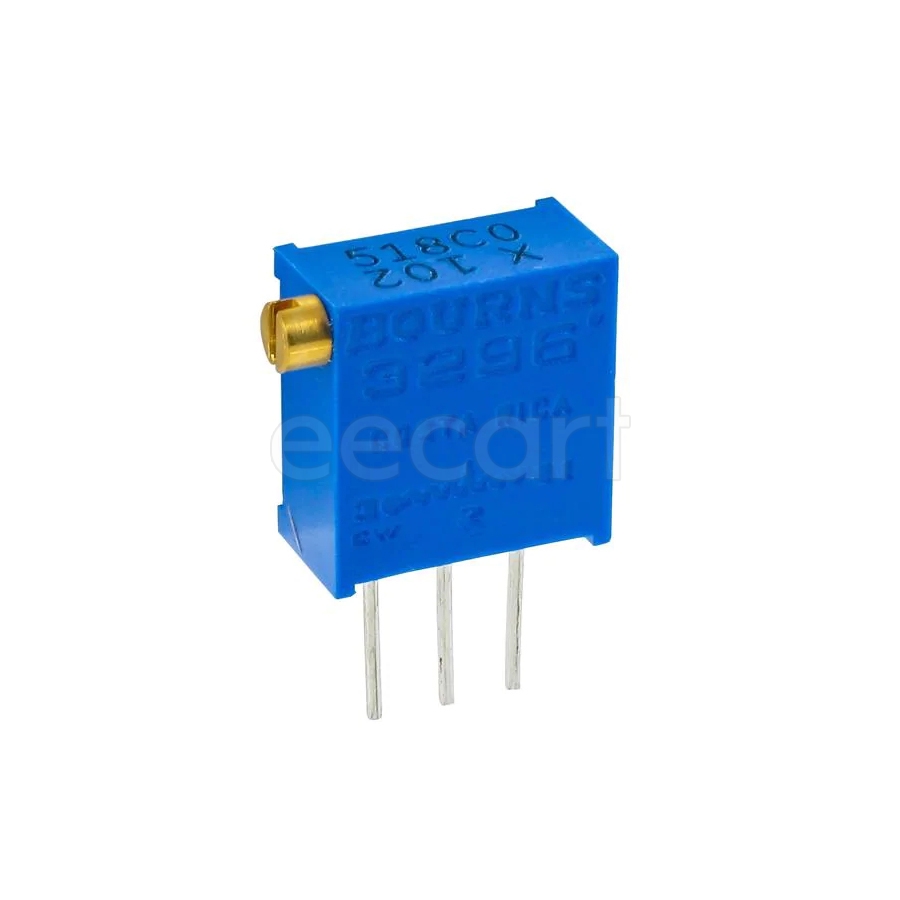

3296X-1-103LF
Manufacturer:
Bourns
Mfr.Part #:
3296X-1-103LF
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 10 % Number of Turns:25 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 11.05 mm |
| Width | 9.53 mm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 25 |
| Taper | Linear |
| Height | 10.033 mm |
| Packaging | Tube |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 850.485694 mg |
| Contact Plating | Tin |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Color | Blue |
| Schedule B | 8533400080 |
Stock: 1026
Distributors
pcbx
pcbxUnit Price$0.84931
Ext.Price$0.84931
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.84931 | $0.84931 |
| 10 | $0.70675 | $7.06750 |
| 25 | $0.61337 | $15.33425 |
| 50 | $0.53232 | $26.61600 |
| 100 | $0.46589 | $46.58900 |
| 300 | $0.44389 | $133.16700 |
| 500 | $0.42292 | $211.46000 |
| 1000 | $0.40148 | $401.48000 |
