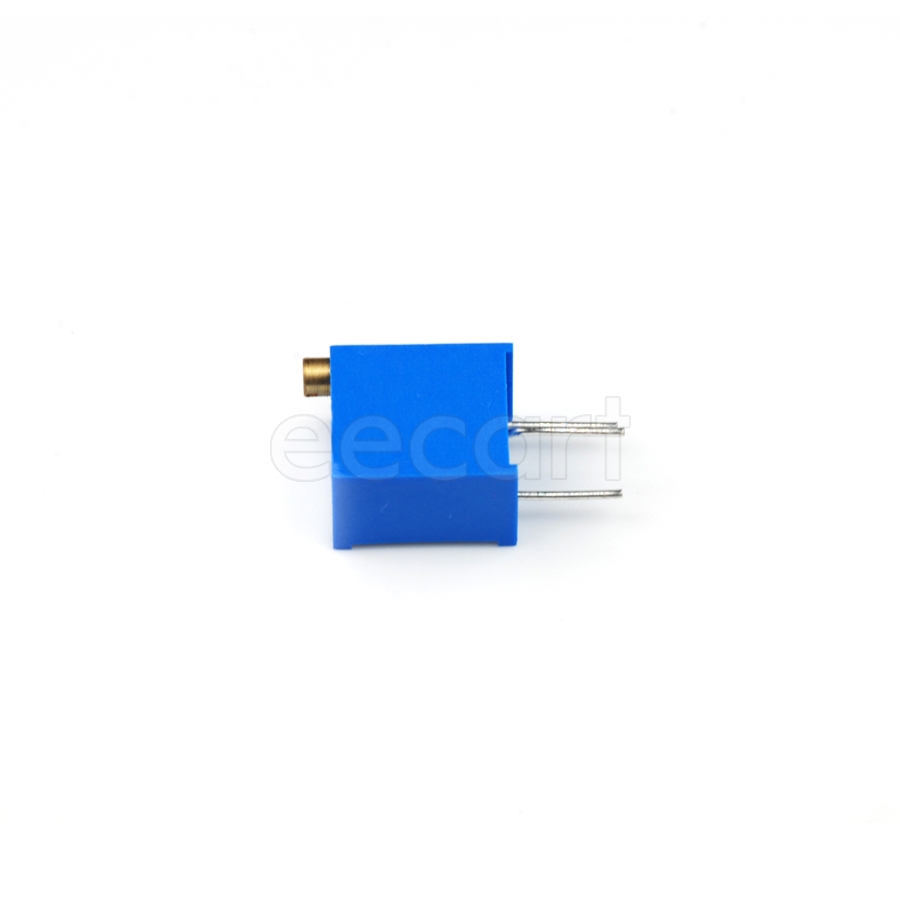

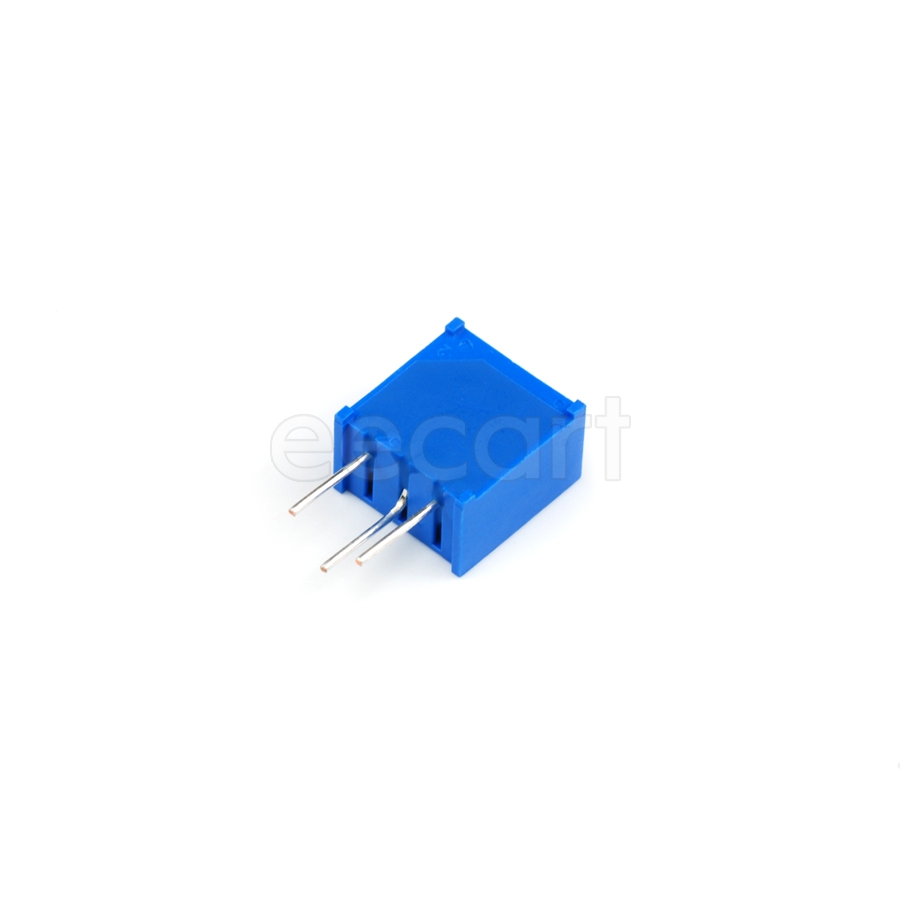

3299W-1-103LF
Manufacturer:
Bourns
Mfr.Part #:
3299W-1-103LF
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 10 % Number of Turns:25 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 9.53 mm |
| Width | 9.53 mm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 3 |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 25 |
| Taper | Linear |
| Height | 10.033 mm |
| Voltage Rating | 300 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 992.233309 mg |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Color | Blue |
| Schedule B | 8533400080 |
| Packaging | Tube |
| RoHS | Compliant |
Stock: 2652
Distributors
pcbx
pcbxUnit Price$1.81427
Ext.Price$1.81427
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.81427 | $1.81427 |
| 10 | $1.52669 | $15.26690 |
| 25 | $1.42457 | $35.61425 |
| 50 | $1.35150 | $67.57500 |
| 100 | $1.28174 | $128.17400 |
| 300 | $1.20480 | $361.44000 |
| 500 | $1.13249 | $566.24500 |
| 1000 | $1.07340 | $1073.40000 |
| 3000 | $1.00842 | $3025.26000 |
| 5000 | $0.94737 | $4736.85000 |
