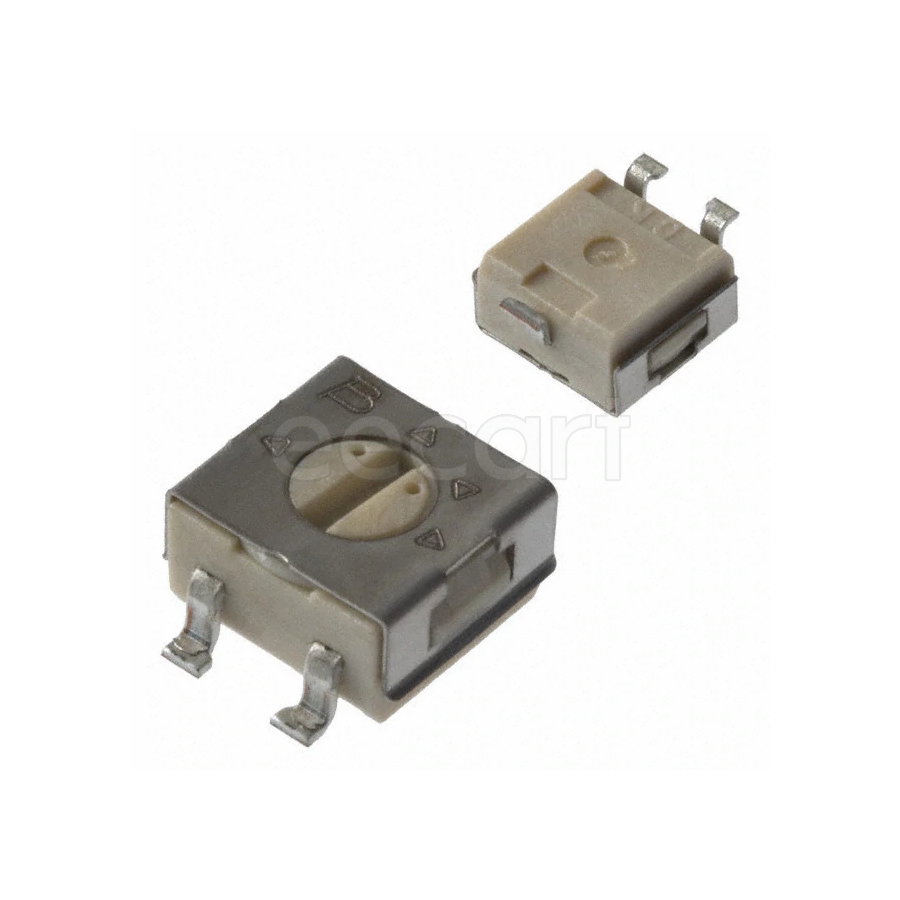

3314G-1-500E
Manufacturer:
Bourns
Mfr.Part #:
3314G-1-500E
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 50 Ω 20 % Number of Turns:1 250 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 500 V |
| Tolerance | 20 % |
| Length | 5 mm |
| Width | 4.4958 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 50 Ω |
| Power Rating | 250 mW |
| Composition(Kit Type) | Cermet, Potentiometer |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 1 |
| Taper | Linear |
| Height | 2.55 mm |
| Packaging | Reel |
| Depth | 6.2 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 0.283 g |
| Military Standard | Not |
| Max Power Dissipation | 250 mW |
| Schedule B | 8533400080 |
| RoHS | Compliant |
Stock: 2204
Distributors
pcbx
pcbxUnit Price$0.98916
Ext.Price$0.98916
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98916 | $0.98916 |
| 10 | $0.74464 | $7.44640 |
| 25 | $0.73189 | $18.29725 |
| 50 | $0.71936 | $35.96800 |
| 100 | $0.70703 | $70.70300 |
| 300 | $0.62730 | $188.19000 |
| 500 | $0.55656 | $278.28000 |
| 1000 | $0.54459 | $544.59000 |
| 3000 | $0.52544 | $1576.32000 |
| 5000 | $0.50697 | $2534.85000 |
| 10000 | $0.48474 | $4847.40000 |
