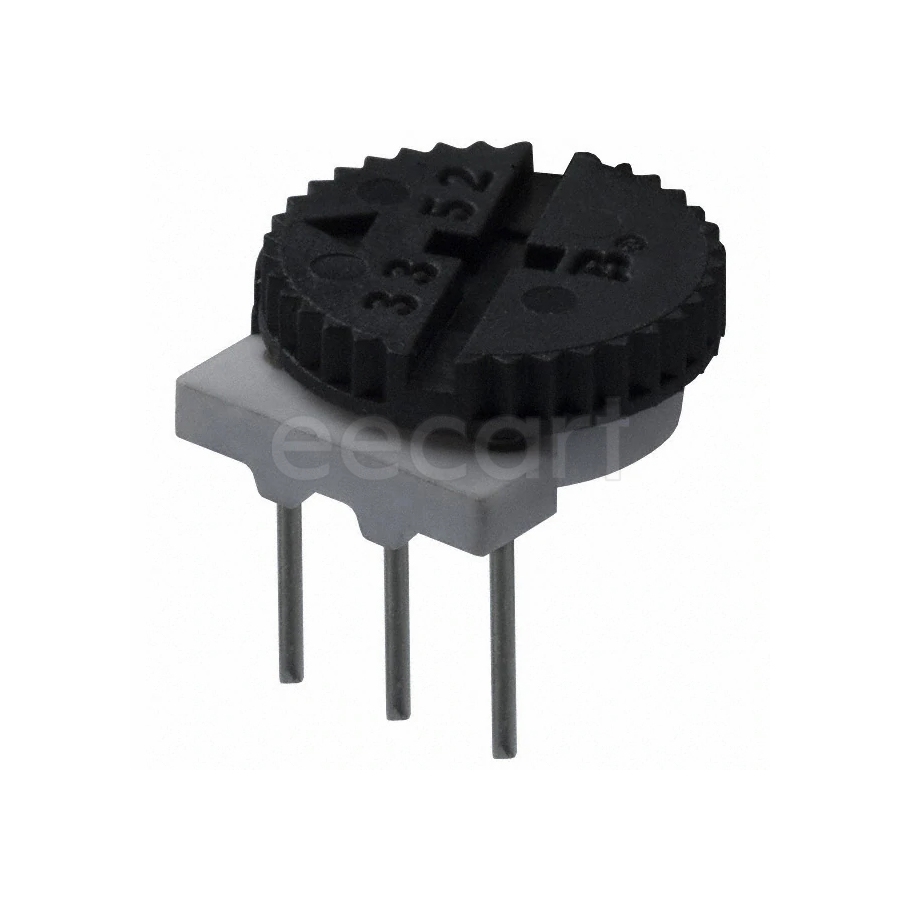

3352T-1-103LF
Manufacturer:
Bourns
Mfr.Part #:
3352T-1-103LF
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 20 % Number of Turns:1 500 mW
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 8.89 mm |
| Width | 8.89 mm |
| Termination | Pin |
| Diameter | 8.89 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 1 |
| Taper | Linear |
| Height | 3.81 mm |
| Packaging | Bulk |
| Depth | 9.53 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 283.495231 mg |
| Contact Plating | Tin |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Color | Black |
| Schedule B | 8533400080 |
| Voltage Rating | 250 V |
| RoHS | Compliant |
Stock: 707
Distributors
pcbx
pcbxUnit Price$1.65856
Ext.Price$1.65856
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.65856 | $1.65856 |
| 10 | $1.48929 | $14.89290 |
| 25 | $1.45118 | $36.27950 |
| 50 | $1.41406 | $70.70300 |
| 100 | $1.31403 | $131.40300 |
| 300 | $1.24646 | $373.93800 |
| 500 | $1.18237 | $591.18500 |
| 1000 | $1.11996 | $1119.96000 |
| 3000 | $1.04888 | $3146.64000 |
| 5000 | $0.98231 | $4911.55000 |
