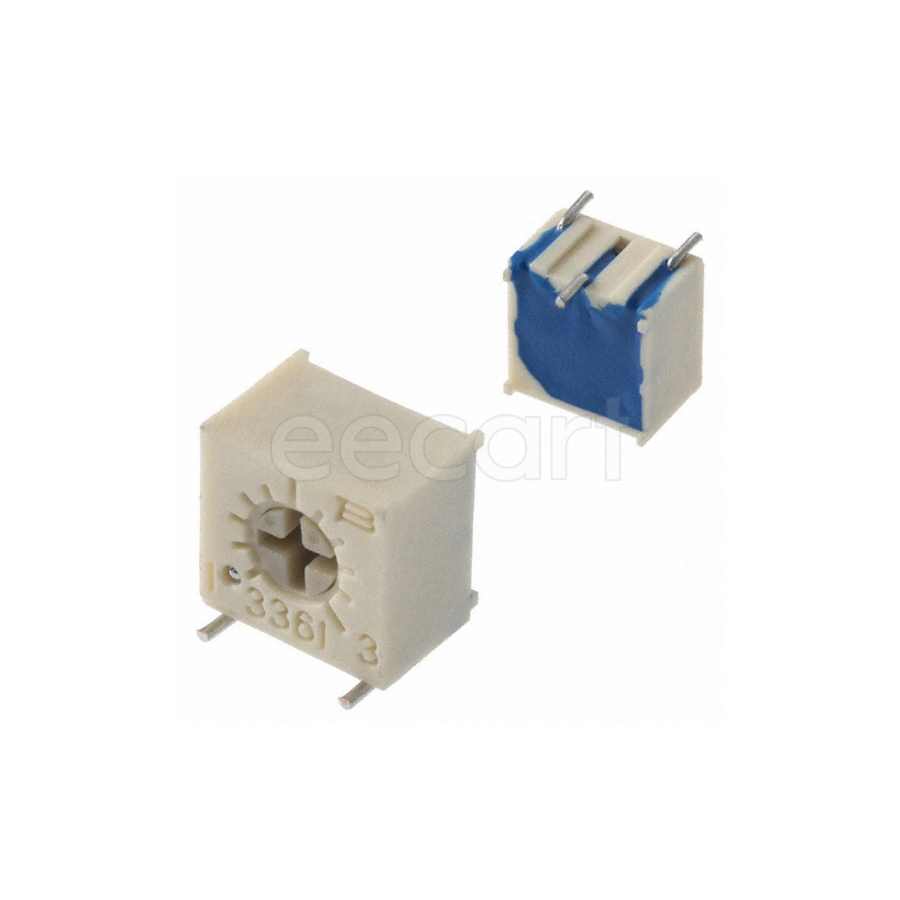

3361S-1-104GLF
Manufacturer:
Bourns
Mfr.Part #:
3361S-1-104GLF
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 100 kΩ 10 % Number of Turns:1 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 6.7056 mm |
| Width | 4.8768 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 100 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet, Potentiometer |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 1 |
| Taper | Linear |
| Height | 7.366 mm |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Depth | 6.65 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 0.567 g |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Color | Natural |
| Schedule B | 8533400080 |
| RoHS | Compliant |
Stock: 618
Distributors
pcbx
pcbxUnit Price$0.88827
Ext.Price$0.88827
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.88827 | $0.88827 |
| 10 | $0.66941 | $6.69410 |
| 25 | $0.65663 | $16.41575 |
| 50 | $0.64410 | $32.20500 |
| 100 | $0.63180 | $63.18000 |
| 300 | $0.57870 | $173.61000 |
| 500 | $0.53006 | $265.03000 |
| 1000 | $0.51296 | $512.96000 |
| 3000 | $0.47200 | $1416.00000 |
| 5000 | $0.43430 | $2171.50000 |
| 10000 | $0.42063 | $4206.30000 |
