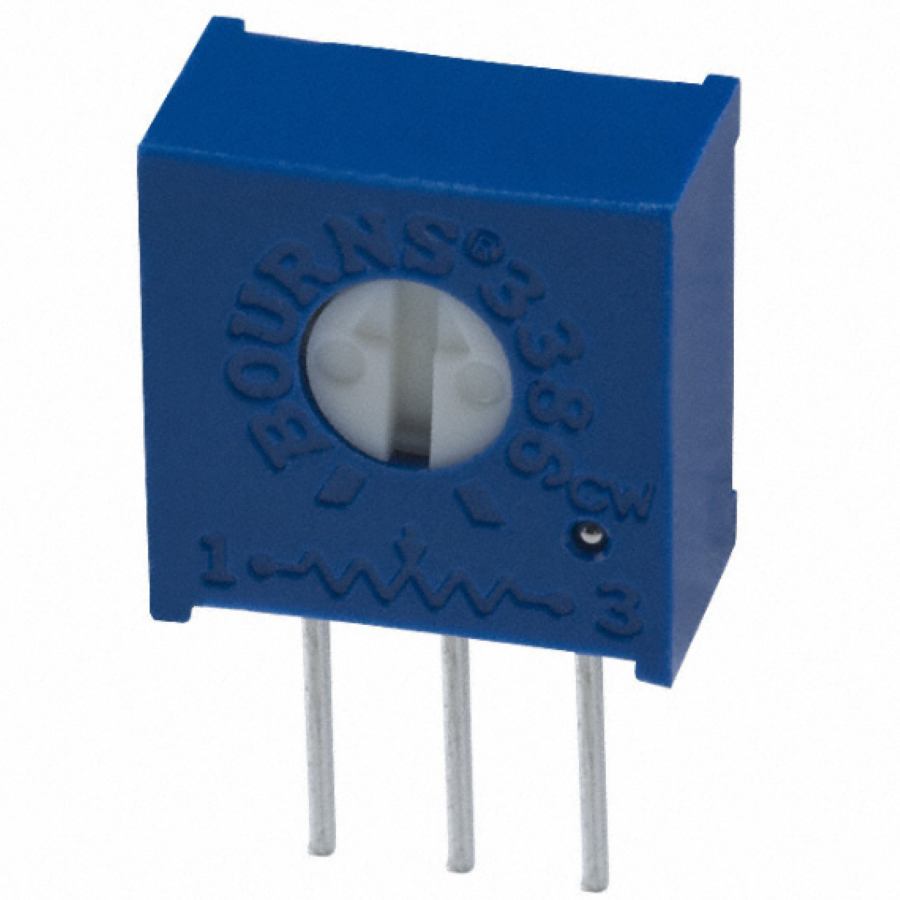

3386W-1-103LF
Manufacturer:
Bourns
Mfr.Part #:
3386W-1-103LF
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 10 % Number of Turns:1 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 9.53 mm |
| Width | 9.53 mm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 1 |
| Taper | Linear |
| Height | 9.525 mm |
| Packaging | Tube |
| Voltage Rating | 300 V |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 850.485694 mg |
| Contact Plating | Tin |
| Type | Potentiometer |
| Number of Terminals | 3 |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Color | Blue |
| Schedule B | 8533400080 |
Stock: 1233
Distributors
pcbx
pcbxUnit Price$0.85750
Ext.Price$0.85750
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85750 | $0.85750 |
| 10 | $0.64462 | $6.44620 |
| 25 | $0.60875 | $15.21875 |
| 50 | $0.57487 | $28.74350 |
| 100 | $0.54288 | $54.28800 |
| 300 | $0.50890 | $152.67000 |
| 500 | $0.47705 | $238.52500 |
| 1000 | $0.46337 | $463.37000 |
| 3000 | $0.43788 | $1313.64000 |
| 5000 | $0.41379 | $2068.95000 |
| 10000 | $0.41037 | $4103.70000 |
