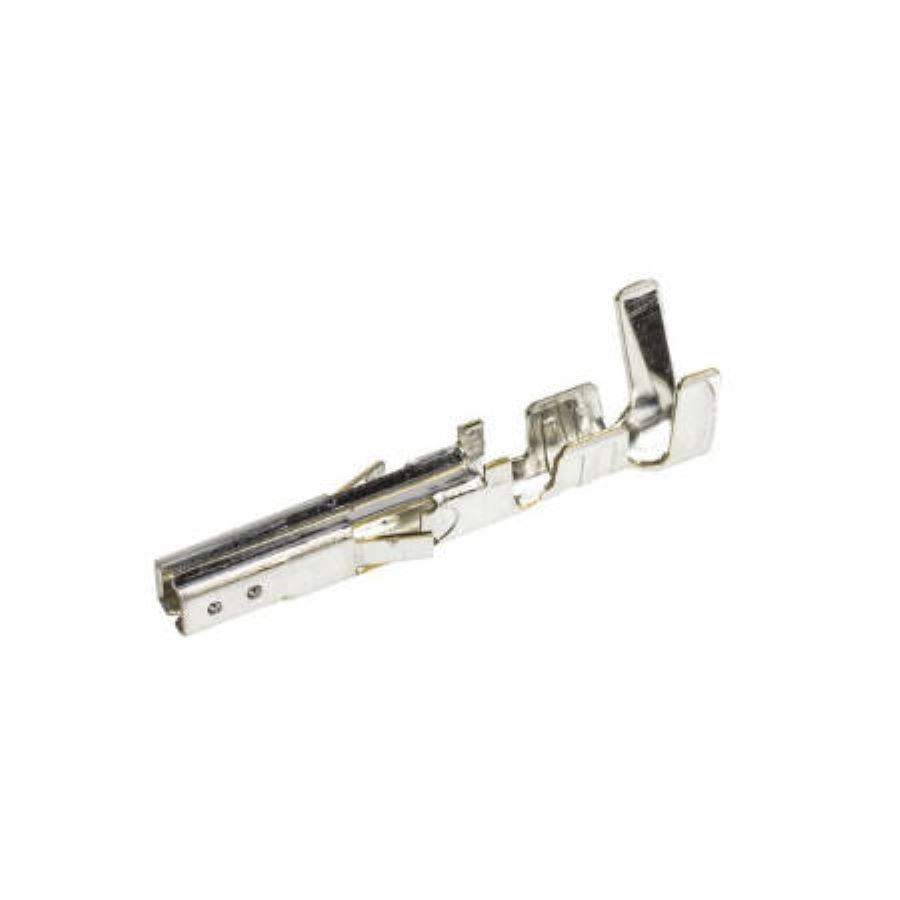

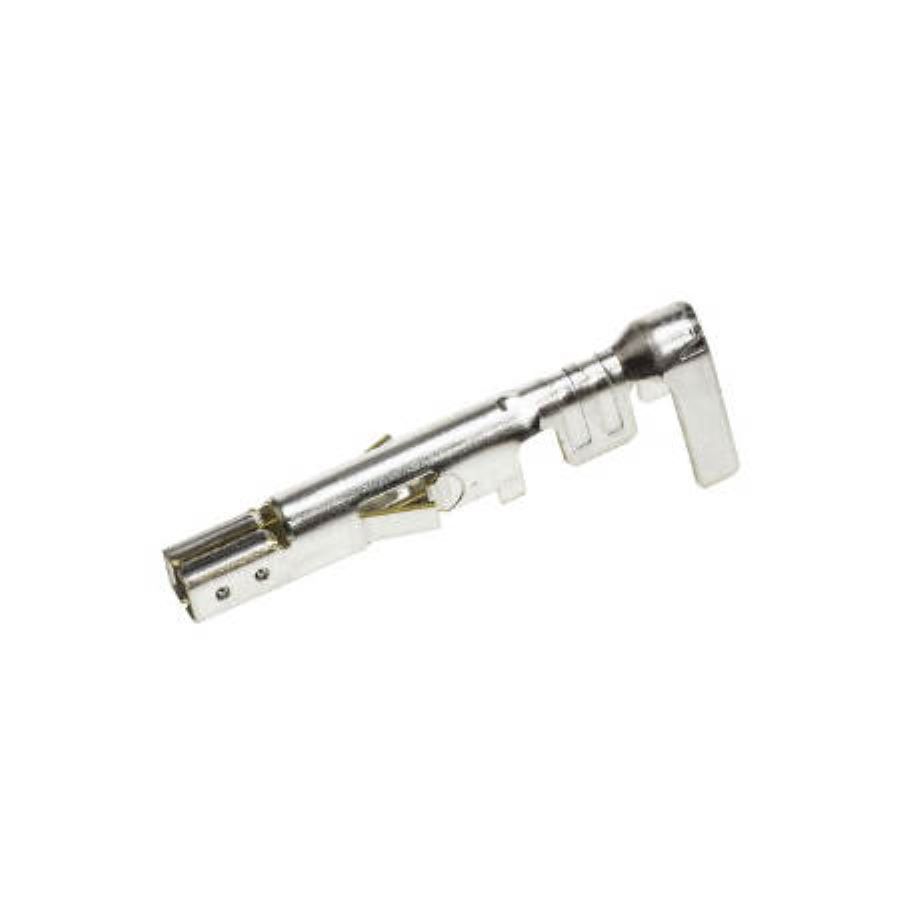

39000038
Manufacturer:
Molex
Mfr.Part #:
39000038
Datasheet:
Description:
Headers and Wire Housings Cable Connector, Crimp, PCB, Power, Signal, Socket Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 14.7 mm |
| Width | 3.6 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.5 mm |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 3.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 9 A |
| Max Current Rating | 9 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Number of Poles | 1 |
| Connector Type | Connector, Crimp, PCB, Power, Signal, Socket |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Contact Resistance | 10 mΩ |
| Shape | Straight |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 24 AWG |
| Plating | Tin |
| Contact Gender | Female |
| Mating Post Length | |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 86953
Distributors
pcbx
pcbxUnit Price$0.04020
Ext.Price$0.04020
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.04020 | $0.04020 |
| 10 | $0.02010 | $0.20100 |
| 50 | $0.01546 | $0.77300 |
| 100 | $0.01380 | $1.38000 |
| 500 | $0.01232 | $6.16000 |
| 1000 | $0.01133 | $11.33000 |
| 3000 | $0.01042 | $31.26000 |
| 5000 | $0.00959 | $47.95000 |
| 10000 | $0.00882 | $88.20000 |
| 30000 | $0.00812 | $243.60000 |
