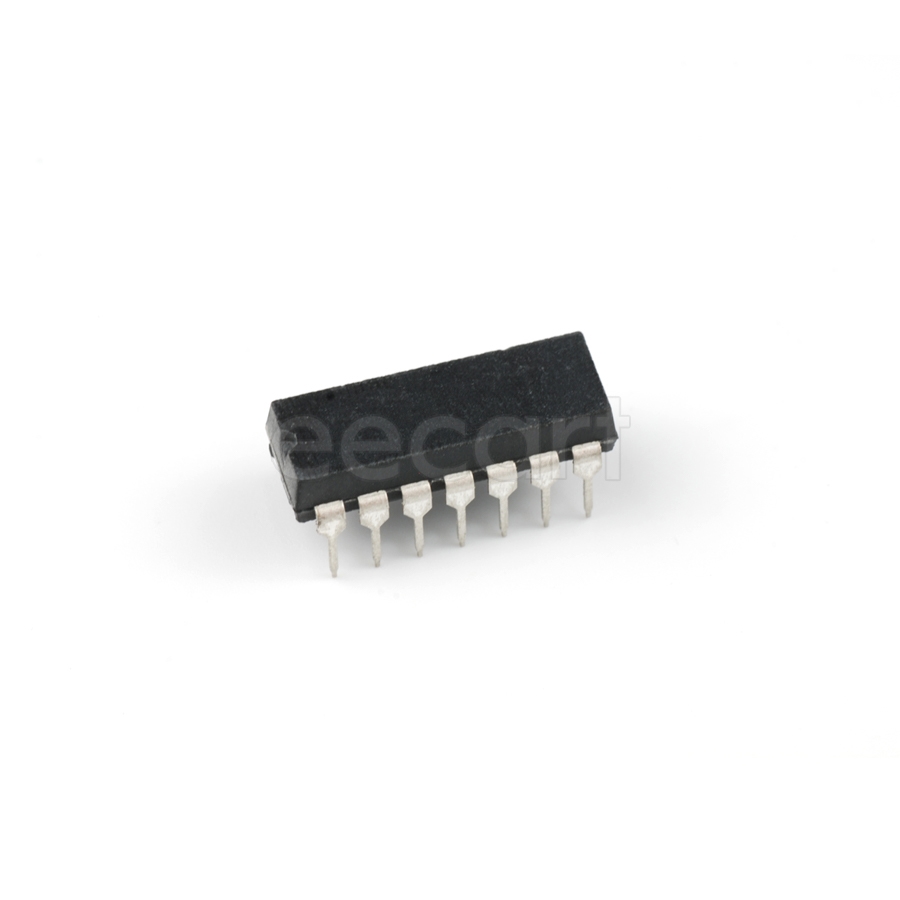

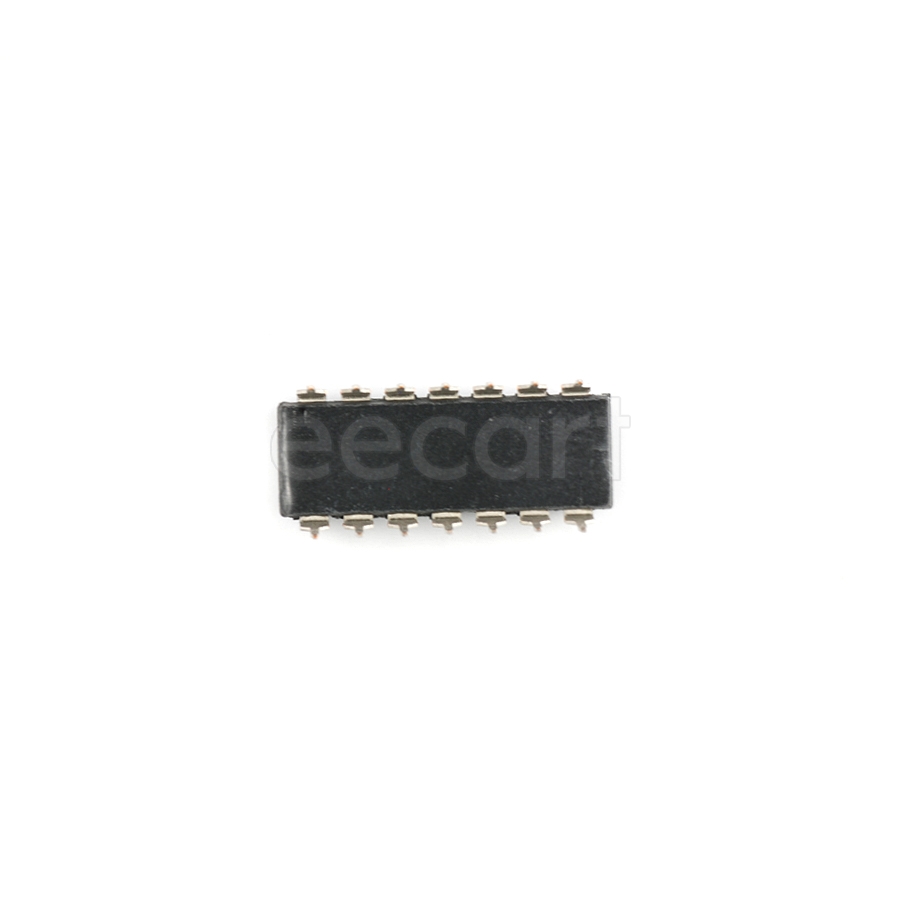

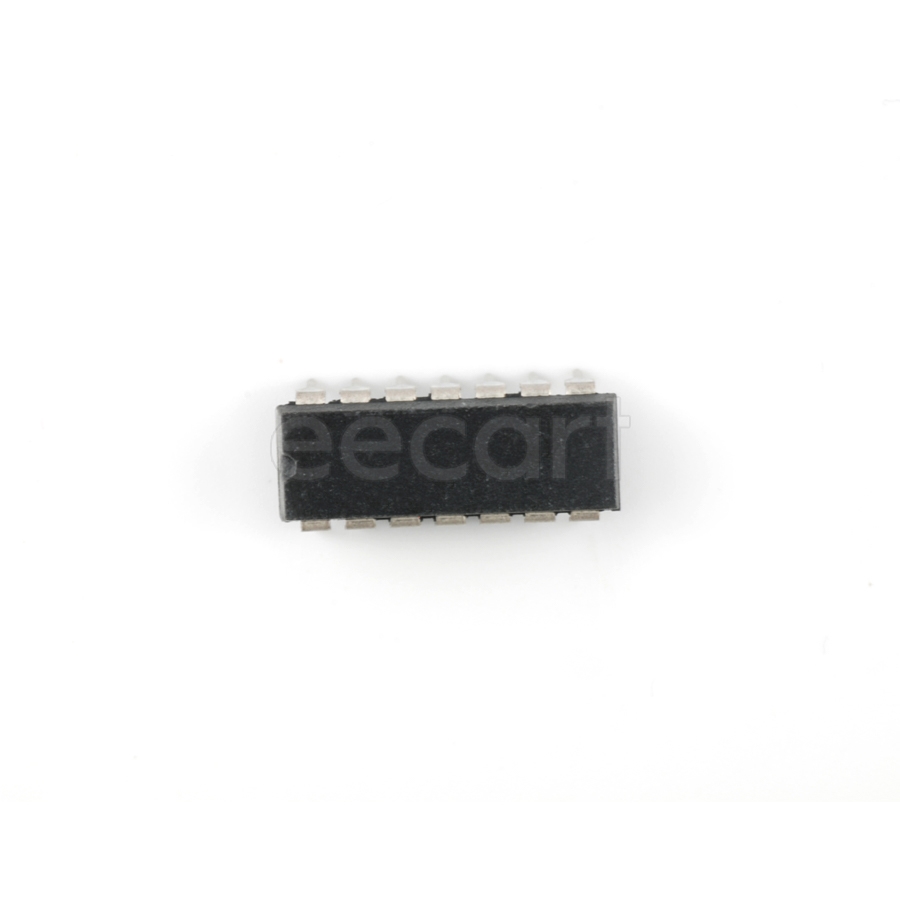

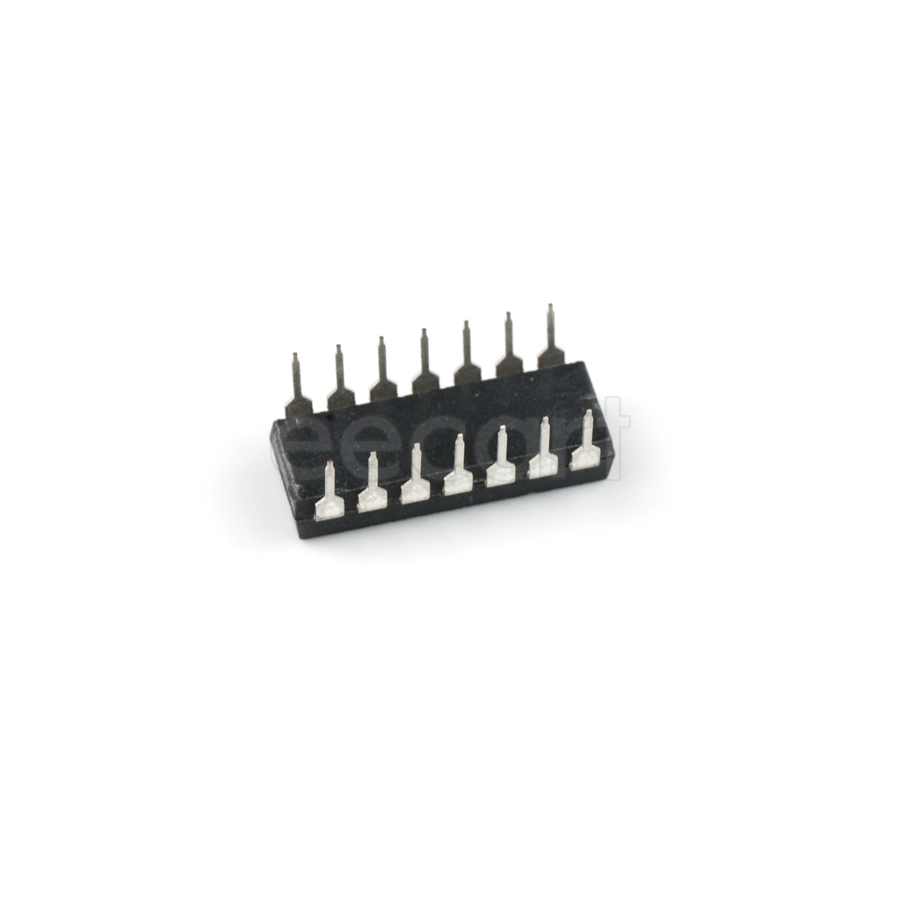

4114R-1-221LF
Manufacturer:
Bourns
Mfr.Part #:
4114R-1-221LF
Datasheet:
Description:
Resistor Arrays DIP-14 Through Hole 220 Ω 2 % Number of Resistors:7 Circuit Type:Isolated
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Tolerance | 2 % |
| Height - Seated (Max) | 4.69 mm |
| Length | 19.43 mm |
| Width | 4.69 mm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 14 |
| Resistance | 220 Ω |
| Power Rating | 2 W |
| Temperature Coefficient | 100 ppm/°C |
| Number of Resistors | 7 |
| Power Per Element | 2 W |
| Height | 7.62 mm |
| Circuit Type | Isolated |
| Voltage Rating | 100 V |
| Depth | 7.87 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 MΩ |
| REACH SVHC | No SVHC |
| Lead Length | 3.18 mm |
| Number of Terminals | 14 |
| Number of Elements | 7 |
| Terminal Pitch | 2.54 mm |
| Military Standard | Not |
| Resistor-Ratio-Drift | 50 ppm/°C |
| Packaging | Tube |
Stock: 62
Distributors
pcbx
pcbxUnit Price$2.41724
Ext.Price$2.41724
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.41724 | $2.41724 |
| 10 | $2.06127 | $20.61270 |
| 25 | $1.90842 | $47.71050 |
| 50 | $1.76691 | $88.34550 |
| 100 | $1.63592 | $163.59200 |
