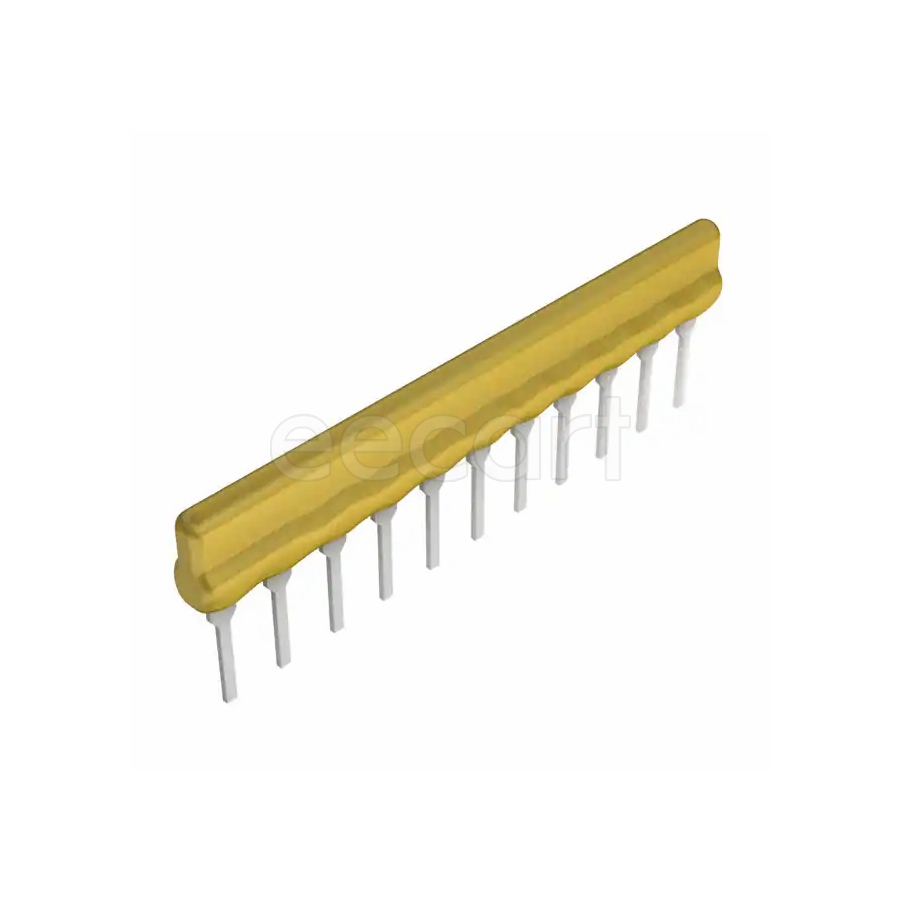

4611X-101-472LF
Manufacturer:
Bourns
Mfr.Part #:
4611X-101-472LF
Datasheet:
Description:
Resistor Arrays SIP-11 Through Hole 4.7 kΩ 2 % Number of Resistors:10 Circuit Type:Bussed
| Parameter | Value |
|---|---|
| Tolerance | 2 % |
| Height - Seated (Max) | 5.08 mm |
| Length | 27.8892 mm |
| Width | 2.4892 mm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 11 |
| Resistance | 4.7 kΩ |
| Power Rating | 1.38 W |
| Temperature Coefficient | 100 ppm/°C |
| Number of Resistors | 10 |
| Power Per Element | 200 mW |
| Height | 5.08 mm |
| Circuit Type | Bussed |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| Depth | 2.49 mm |
| Radiation Hardening | No |
| Lead Pitch | 2.49 mm |
| Number of Terminals | 11 |
| Terminal Pitch | 2.54 mm |
| Military Standard | Not |
| RoHS | Compliant |
Stock: 1135
Distributors
pcbx
pcbxUnit Price$0.33171
Ext.Price$0.33171
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33171 | $0.33171 |
| 10 | $0.21373 | $2.13730 |
| 50 | $0.17521 | $8.76050 |
| 100 | $0.14363 | $14.36300 |
| 500 | $0.11114 | $55.57000 |
| 1000 | $0.11029 | $110.29000 |
| 3000 | $0.09544 | $286.32000 |
| 5000 | $0.08259 | $412.95000 |
