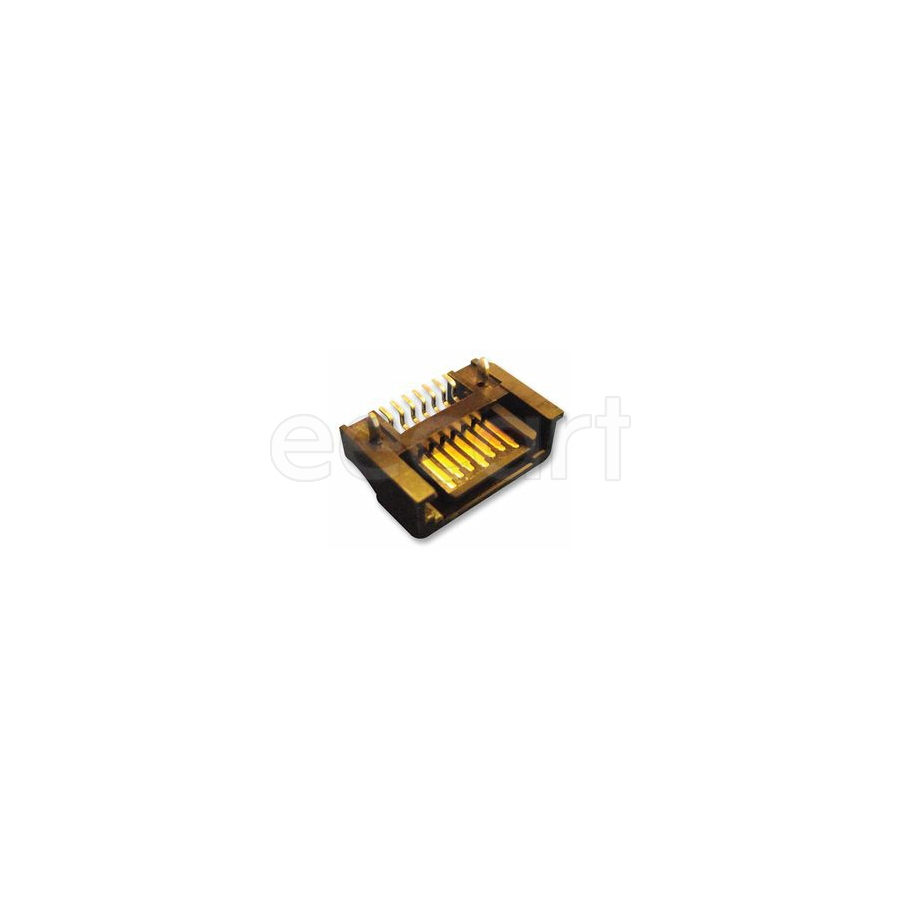

47080-4005
Manufacturer:
Molex
Mfr.Part #:
47080-4005
Datasheet:
Description:
I/O Connectors SMD/SMT Male SATA SATA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Length | 17.54 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Packaging | Reel |
| Depth | 11.56 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.27 mm |
| Number of Terminals | 7 |
| Current Rating | 1.5 A |
| Number of Circuits | 7 |
| Orientation | Right Angle |
| Gender | Male |
| Number of Contacts | 7 |
| Connector Type | SATA |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Number of Ports | 1 |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Country of Origin | US |
| Voltage Rating | 15 V |
| Mounting Angle | Right Angle |
| Connector Style | SATA |
Stock: 6568
Distributors
pcbx
pcbxUnit Price$0.63180
Ext.Price$0.63180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63180 | $0.63180 |
| 10 | $0.53860 | $5.38600 |
| 25 | $0.50526 | $12.63150 |
| 50 | $0.48133 | $24.06650 |
| 100 | $0.45824 | $45.82400 |
| 300 | $0.42636 | $127.90800 |
| 500 | $0.39669 | $198.34500 |
| 1000 | $0.38557 | $385.57000 |
