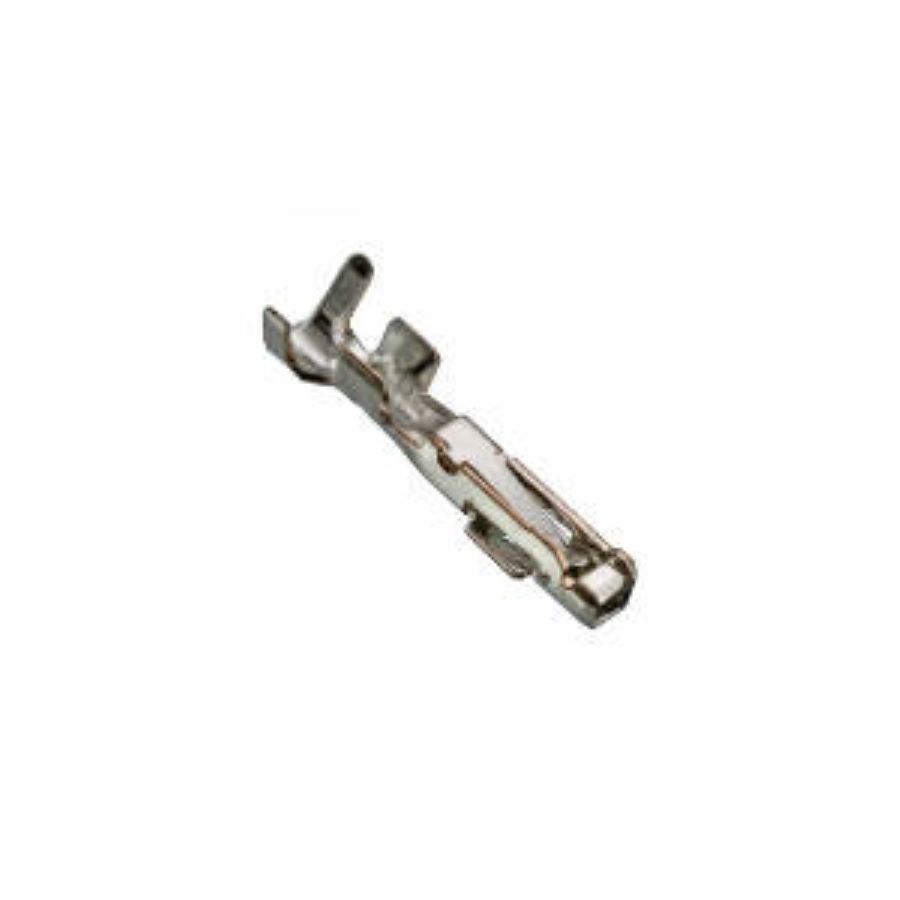

5016471000
Manufacturer:
Molex
Mfr.Part #:
5016471000
Datasheet:
Description:
Headers and Wire Housings Cable Connector, Crimp, PCB, Receptacle, Signal
| Parameter | Value |
|---|---|
| Length | 9 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.08 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 2.47 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Pitch | |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Connector Type | Connector, Crimp, PCB, Receptacle, Signal |
| Wire/Cable Gauge | 26 AWG |
| Number of Positions | |
| Number of Rows | 2 |
| Row Spacing | |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 26 AWG |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Mating Post Length | |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Tin |
Stock: 68783
Distributors
pcbx
pcbxUnit Price$0.05148
Ext.Price$0.05148
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05148 | $0.05148 |
| 10 | $0.02574 | $0.25740 |
| 50 | $0.01980 | $0.99000 |
| 100 | $0.01523 | $1.52300 |
| 500 | $0.01348 | $6.74000 |
| 1000 | $0.01193 | $11.93000 |
| 3000 | $0.01019 | $30.57000 |
| 5000 | $0.00951 | $47.55000 |
| 10000 | $0.00887 | $88.70000 |
| 30000 | $0.00828 | $248.40000 |
| 50000 | $0.00772 | $386.00000 |
