5607-4200-SH
Manufacturer:
3M
Mfr.Part #:
5607-4200-SH
Datasheet:
Description:

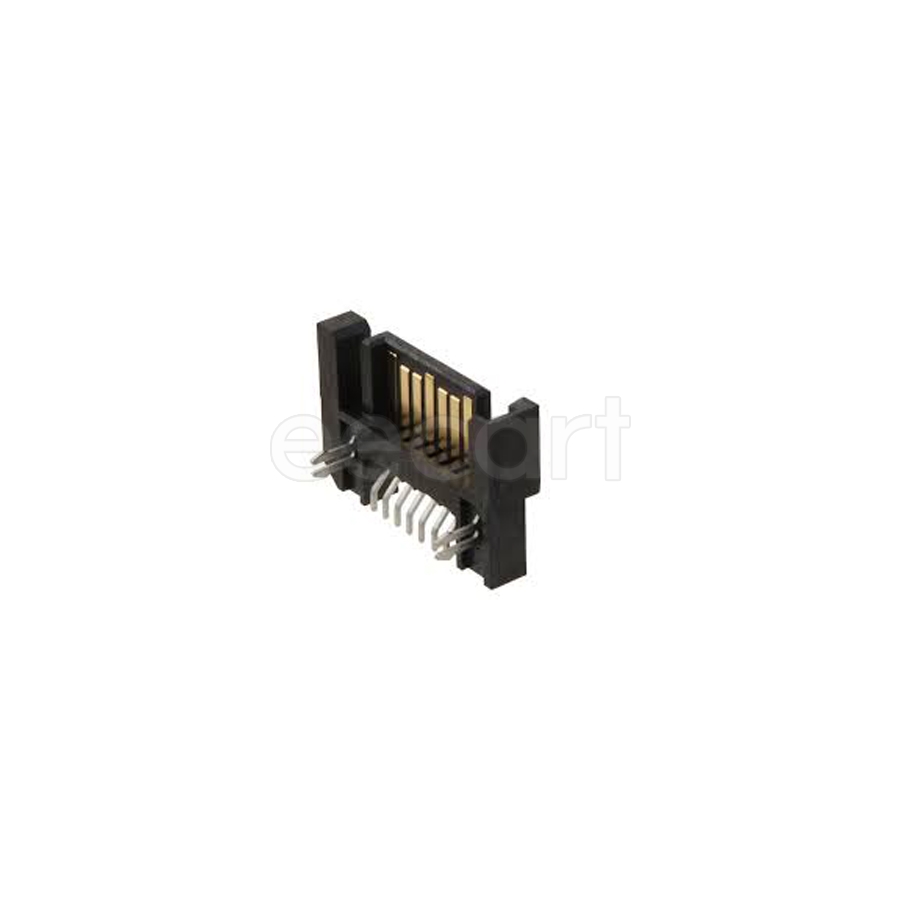

I/O Connectors SMD/SMT Male SATA Plug, SATA
| Parameter | Value |
|---|---|
| Length | 17.46 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 11.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 1.27 mm |
| Number of Terminals | 7 |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 7 |
| Connector Type | Plug, SATA |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Housing Color | Black |
| Connector Style | SATA |
| Mounting Angle | Right Angle |
