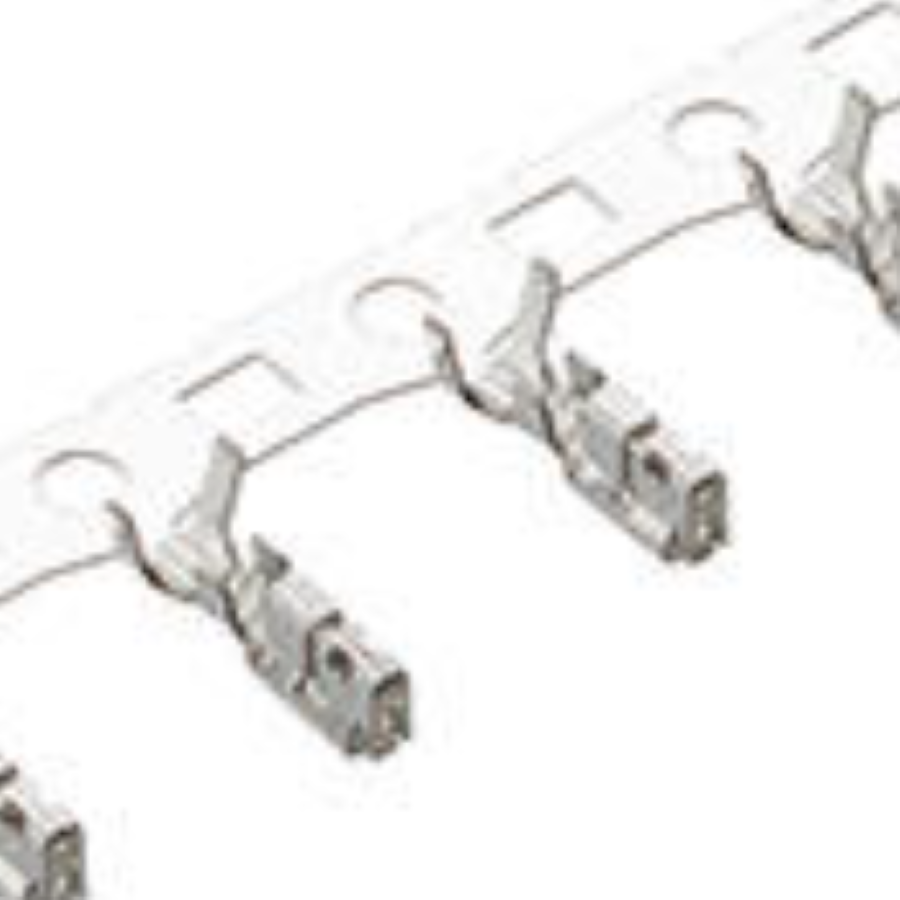

561349000
Manufacturer:
Molex
Mfr.Part #:
561349000
Datasheet:
Description:
Headers and Wire Housings Cable Connector, Crimp, PCB, Signal, Socket
| Parameter | Value |
|---|---|
| Length | 6.7 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 2.51 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 2.64 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Connector Type | Connector, Crimp, PCB, Signal, Socket |
| Wire/Cable Gauge | 28 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Contact Resistance | 20 mΩ |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 28 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Contact Gender | Female |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | MX |
| Termination Post Length |
Stock: 95852
Distributors
pcbx
pcbxUnit Price$0.06424
Ext.Price$0.06424
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06424 | $0.06424 |
| 10 | $0.03212 | $0.32120 |
| 50 | $0.02471 | $1.23550 |
| 100 | $0.01901 | $1.90100 |
| 500 | $0.01734 | $8.67000 |
| 1000 | $0.01581 | $15.81000 |
| 3000 | $0.01411 | $42.33000 |
| 5000 | $0.01332 | $66.60000 |
| 10000 | $0.01257 | $125.70000 |
| 30000 | $0.01186 | $355.80000 |
| 50000 | $0.01119 | $559.50000 |
