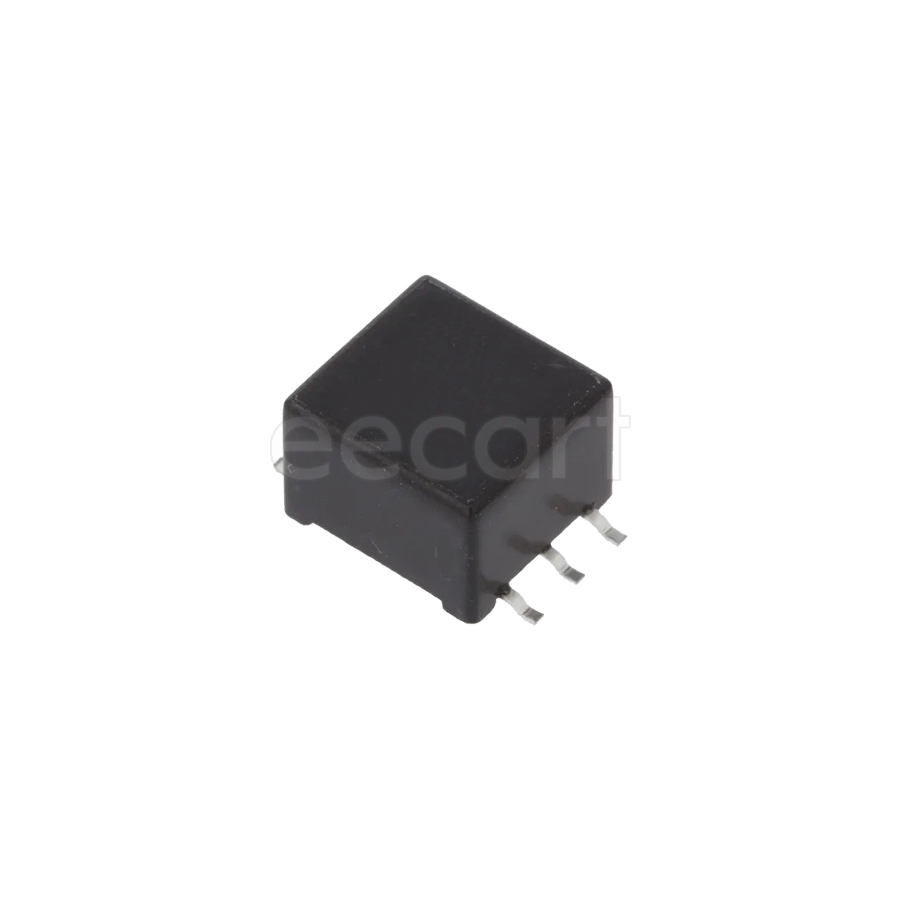

78253/55VC
Manufacturer:
Murata
Mfr.Part #:
78253/55VC
Datasheet:
Description:
Transformers Through Hole 240 µH
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 6.6 mm |
| Length | 9.52 mm |
| Width | 8.89 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Resistance | 400 mΩ |
| Power Rating | 1 W |
| Height | 6.35 mm |
| Packaging | Tube |
| Depth | 9.52 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 10.16 mm |
| REACH SVHC | No SVHC |
| Lead/Base Style | PC Pin |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 600 mΩ |
| Flammability Rating | UL94 V-0 |
| Output Voltage | 5 V |
| Inductance | 240 µH |
| Turns Ratio | 1:1.31 |
| Isolation Voltage | 4 kV |
| Nominal Input Voltage | 5 V |
| Secondary Current | 200 mA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
Stock: 1258
Distributors
pcbx
pcbxUnit Price$2.32798
Ext.Price$2.32798
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.32798 | $2.32798 |
| 10 | $2.30755 | $23.07550 |
| 25 | $2.27360 | $56.84000 |
| 50 | $2.21931 | $110.96550 |
| 100 | $2.10393 | $210.39300 |
| 300 | $1.96714 | $590.14200 |
| 500 | $1.83925 | $919.62500 |
| 1000 | $1.72388 | $1723.88000 |
