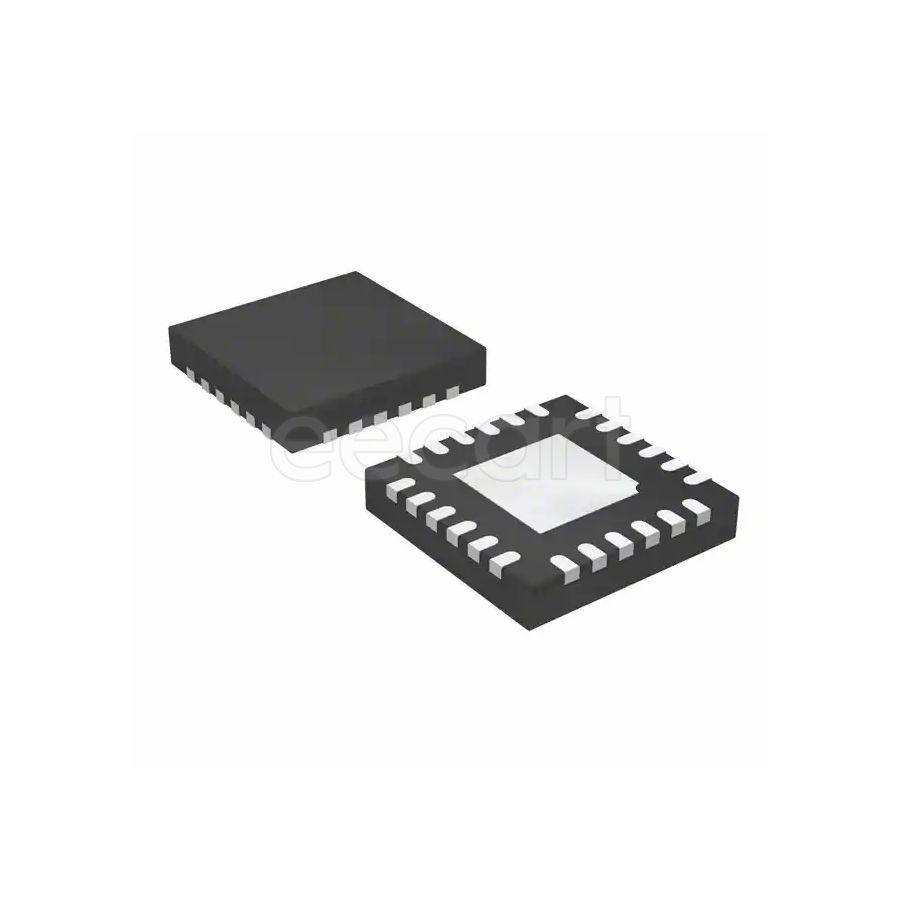

AIS328DQTR
Manufacturer:
STMicroelectronics
Mfr.Part #:
AIS328DQTR
Datasheet:
Description:
Accelerometers QFN-24 SMD/SMT 3 Axis 2 g, 4 g, 8 g 1020 to 255 LSB/g Digital
| Parameter | Value |
|---|---|
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Features | Adjustable Bandwidth, Selectable Scale |
| Axis | X, Y, Z |
| Bandwidth | 500 Hz |
| Operating Supply Voltage | 3.3 V |
| Output Type | Digital |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.4 V |
| Nominal Supply Current | 450 µA |
| Sensor Type | 3 Axis |
| Resolution | 16 bit |
| Schedule B | 8542390000 |
| Sensitivity (mV/g) | |
| Interface Type(Data Interface) | I²C, SPI |
| Acceleration | 2 g, 4 g, 8 g |
| Sensitivity | 1020 to 255 LSB/g |
Stock: 414
Distributors
pcbx
pcbxUnit Price$4.78080
Ext.Price$4.78080
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.78080 | $4.78080 |
| 10 | $4.13687 | $41.36870 |
| 25 | $3.92923 | $98.23075 |
| 50 | $3.78704 | $189.35200 |
| 100 | $3.65676 | $365.67600 |
| 300 | $3.59454 | $1078.36200 |
| 500 | $3.53339 | $1766.69500 |
| 1000 | $3.34032 | $3340.32000 |
| 3000 | $3.15779 | $9473.37000 |
