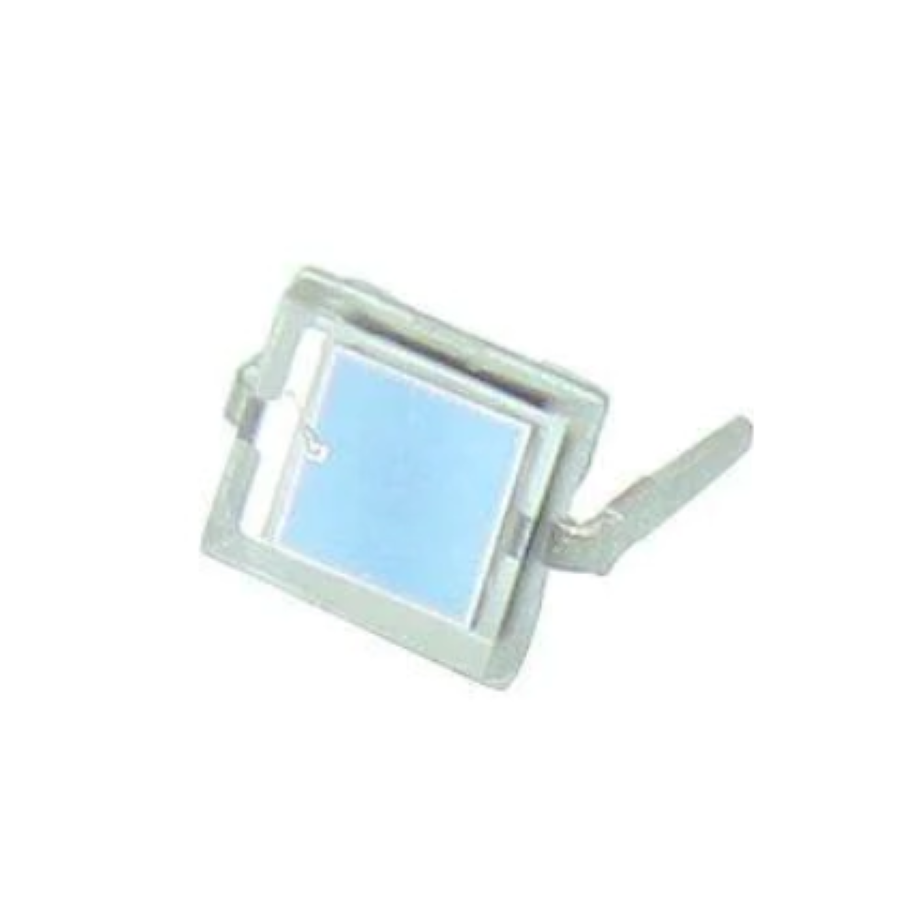

BPW34
Manufacturer:
Vishay
Mfr.Part #:
BPW34
Datasheet:
Description:
Photodiodes DIP-2 Through Hole 900 nm PIN Rise Time:100 ns Fall Time :100 ns
| Parameter | Value |
|---|---|
| Capacitance | 70 pF |
| Length | 4.5 mm |
| Width | 4.3 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 2 mm |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Max Power Dissipation | 215 mW |
| Lens Style | Clear |
| Power Dissipation | 215 mW |
| Max Reverse Voltage (DC) | 60 V |
| Breakdown Voltage | 60 V |
| Fall Time | 100 ns |
| Rise Time | 100 ns |
| Viewing Angle | 130 ° |
| Wavelength | 900 nm |
| Peak Wavelength | 850 nm |
| Dark Current | 2 nA |
| Reverse Breakdown Voltage | 60 V |
| Diode Type | PIN |
| Reverse Voltage (DC) | 60 V |
| RoHS | Compliant |
| Packaging | Bulk |
Stock: 3929
Distributors
pcbx
pcbxUnit Price$0.73046
Ext.Price$0.73046
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73046 | $0.73046 |
| 10 | $0.60010 | $6.00100 |
| 25 | $0.55440 | $13.86000 |
| 50 | $0.51218 | $25.60900 |
| 100 | $0.47317 | $47.31700 |
| 300 | $0.42390 | $127.17000 |
| 500 | $0.37976 | $189.88000 |
| 1000 | $0.35832 | $358.32000 |
