CR1206-JW-153ELF
Manufacturer:
Bourns
Mfr.Part #:
CR1206-JW-153ELF
Datasheet:
Description:

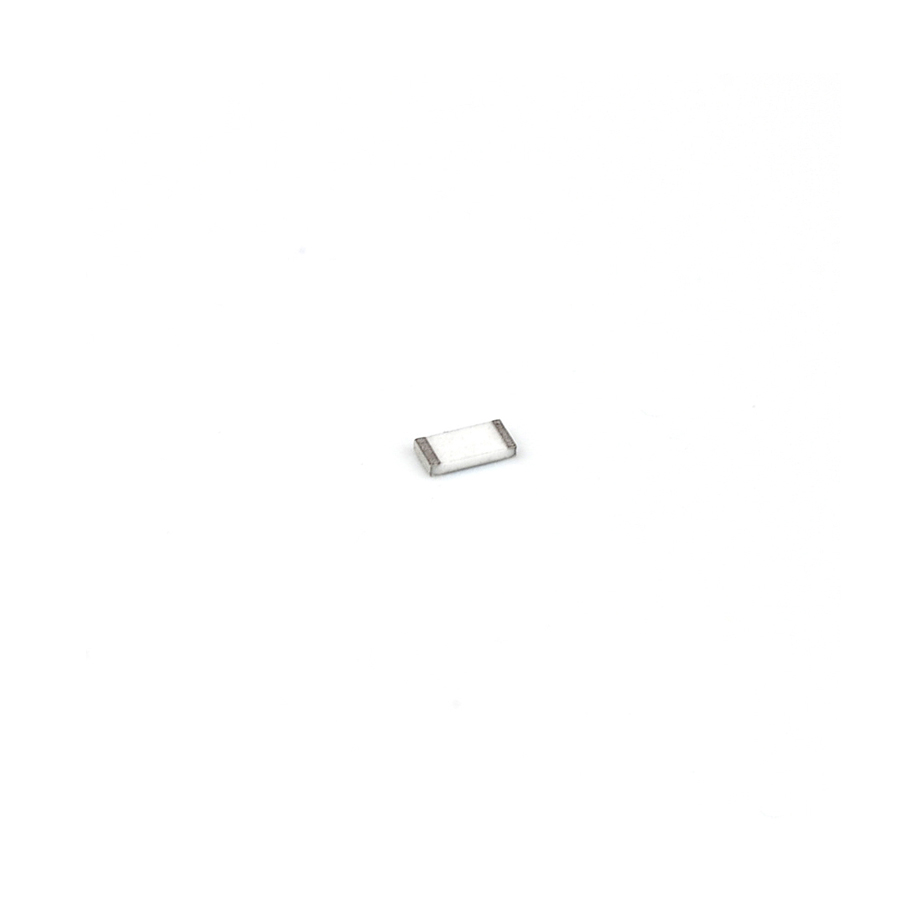

Chip SMD Resistors SMD/SMT 1206 15 kΩ Composition:Thick Film 250 mW 5 %
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 3.2 mm |
| Width | 1.6002 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Resistance | 15 kΩ |
| Power Rating | 250 mW |
| Temperature Coefficient | 200 ppm/°C |
| Height | 650 µm |
| Packaging | Reel |
| Voltage Rating | 200 V |
| Depth | 1.6 mm |
| Thickness | 610 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Features | Moisture Resistant |
| Military Standard | Not |
| Max Power Dissipation | 250 mW |
| Number of Terminations | 2 |
| Composition(Kit Type) | Thick Film |
| Height - Seated (Max) | 0.75 mm |
Stock: 10589
Distributors
pcbx
pcbxUnit Price$0.06156
Ext.Price$0.06156
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06156 | $0.06156 |
| 10 | $0.02582 | $0.25820 |
| 50 | $0.01868 | $0.93400 |
| 100 | $0.01351 | $1.35100 |
| 500 | $0.01111 | $5.55500 |
| 1000 | $0.00735 | $7.35000 |
| 3000 | $0.00639 | $19.17000 |
| 5000 | $0.00555 | $27.75000 |
| 10000 | $0.00427 | $42.70000 |
