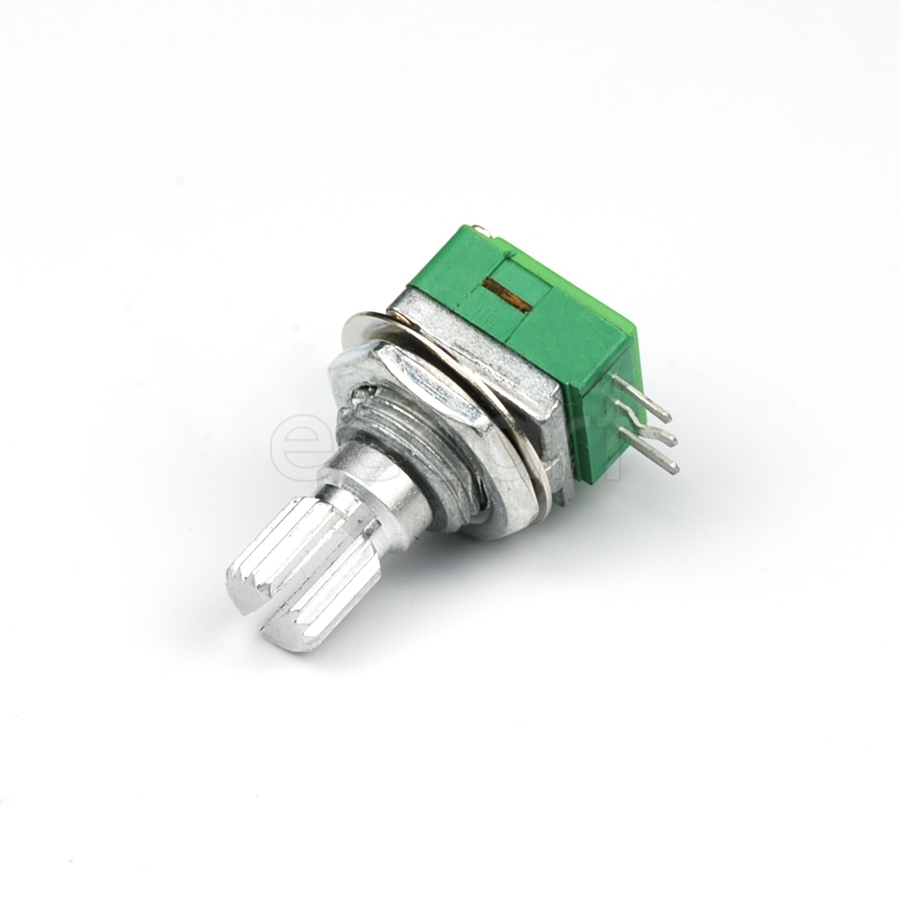

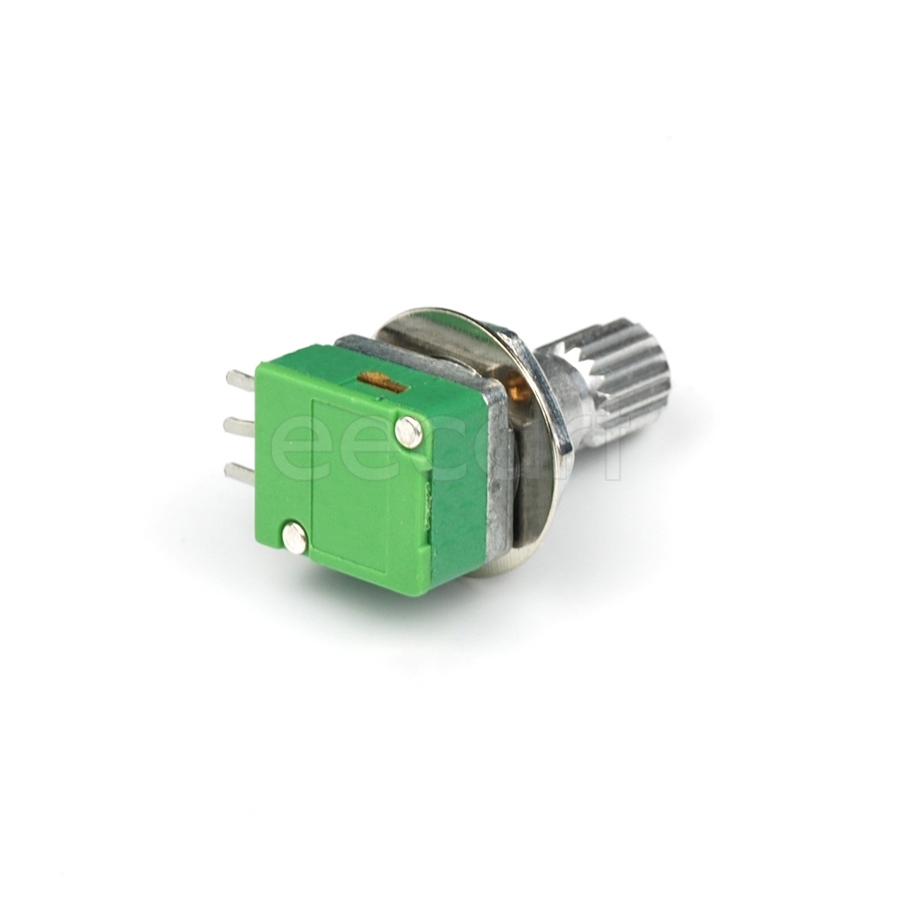

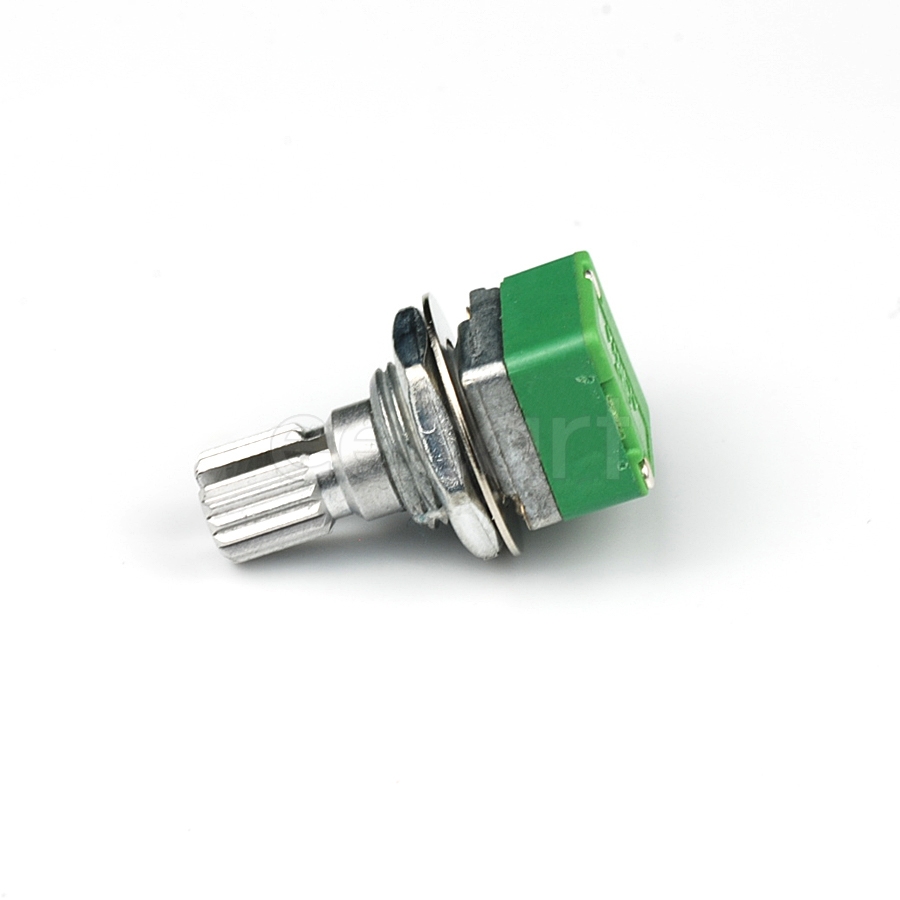

PTD901-2015K-B104
Manufacturer:
Bourns
Mfr.Part #:
PTD901-2015K-B104
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 100 kΩ 20 % Number of Turns:1 Number of Gangs:1 50 mW
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 22.05 mm |
| Termination | Pin |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Resistance | 100 kΩ |
| Power Rating | 50 mW |
| Number of Turns | 1 |
| Taper | Linear |
| Packaging | Bulk |
| Depth | 9.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Potentiometer |
| Military Standard | Not |
| Max Power Dissipation | 50 mW |
| Number of Gangs | 1 |
| Actuator Diameter | 5.9944 mm |
| Actuator Length | 15.0114 mm |
| Schedule B | 8533400080 |
Stock: 236
Distributors
pcbx
pcbxUnit Price$1.43457
Ext.Price$1.43457
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.43457 | $1.43457 |
| 10 | $1.01566 | $10.15660 |
| 25 | $0.99053 | $24.76325 |
| 50 | $0.96602 | $48.30100 |
| 100 | $0.94213 | $94.21300 |
| 300 | $0.87204 | $261.61200 |
| 500 | $0.80717 | $403.58500 |
| 1000 | $0.74712 | $747.12000 |
| 3000 | $0.69154 | $2074.62000 |
| 5000 | $0.64010 | $3200.50000 |
| 10000 | $0.59247 | $5924.70000 |
