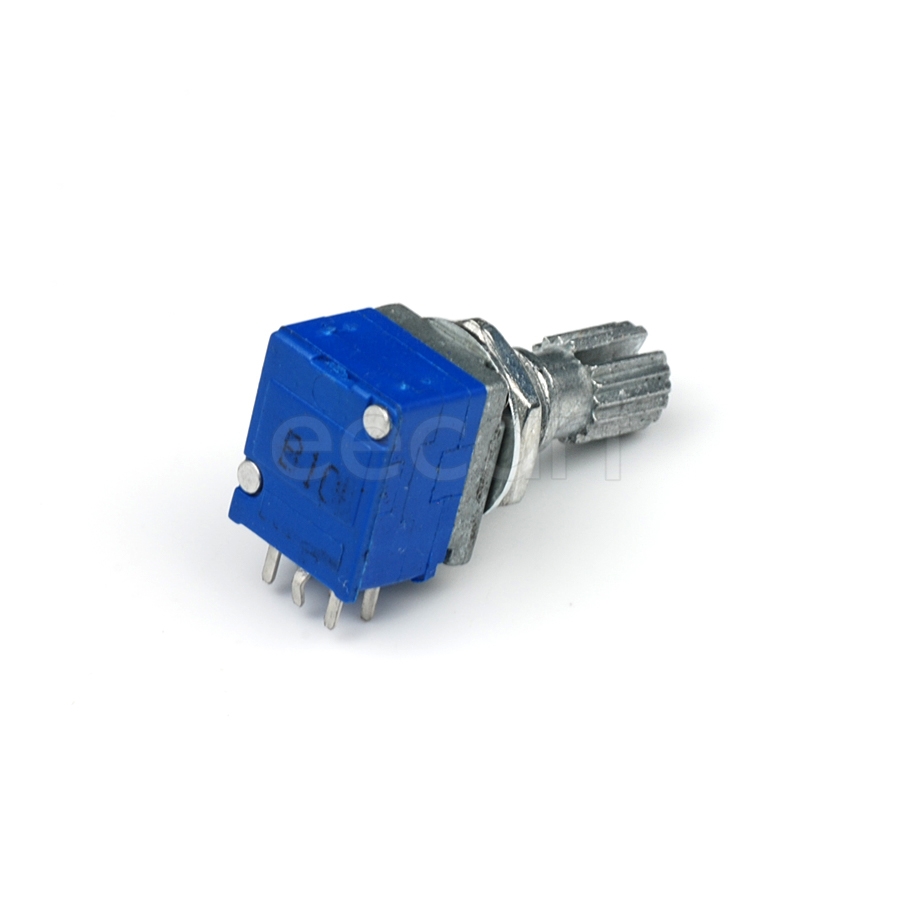

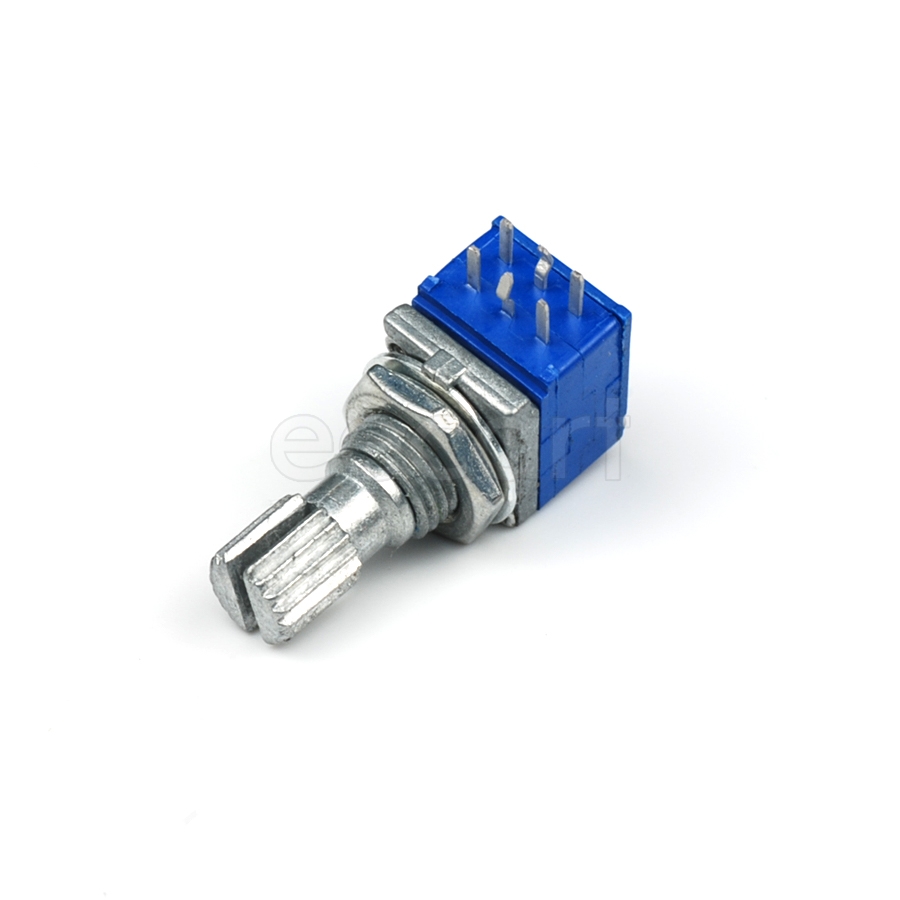

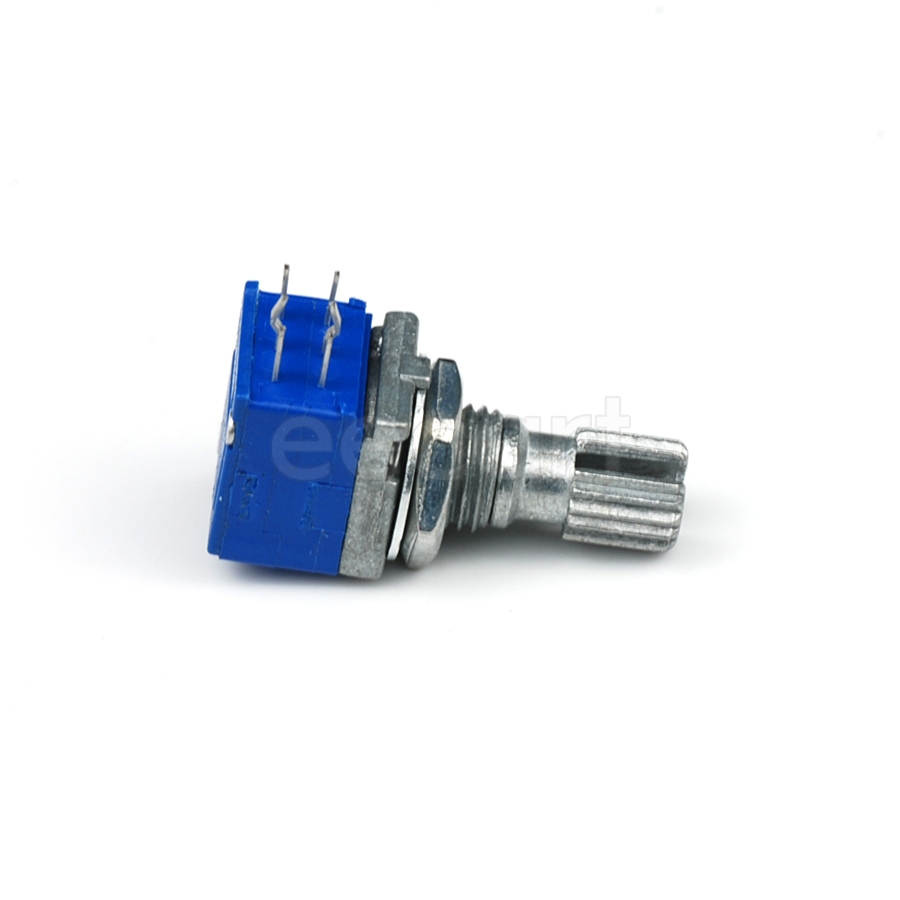

PTD902-2015K-B103
Manufacturer:
Bourns
Mfr.Part #:
PTD902-2015K-B103
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 20 % Number of Turns:1 Number of Gangs:2 50 mW
| Parameter | Value |
|---|---|
| Taper | Linear |
| Number of Turns | 1 |
| Power Rating | 50 mW |
| Type | Potentiometer |
| Min Operating Temperature | -10 °C |
| Military Standard | Not |
| Composition(Kit Type) | Carbon |
| Life (Cycles) | 15 kCycles |
| Ratings | IP40 |
| Actuator Length | 15.0114 mm |
| Actuator Diameter | 5.9944 mm |
| Number of Gangs | 2 |
| Tolerance | 20 % |
| Schedule B | 8533400080 |
| Termination | Pin |
| Voltage Rating (AC) | 150 V |
| Voltage Rating (DC) | 20 V |
| Length | 24.65 mm |
| Max Power Dissipation | 50 mW |
| Packaging | Bulk |
| Resistance | 10 kΩ |
| Depth | 9.5 mm |
| Max Operating Temperature | 50 °C |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
Stock: 1540
Distributors
pcbx
pcbxUnit Price$1.32685
Ext.Price$1.32685
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.32685 | $1.32685 |
| 10 | $1.21400 | $12.14000 |
| 25 | $1.13278 | $28.31950 |
| 50 | $1.08786 | $54.39300 |
| 100 | $1.04473 | $104.47300 |
| 300 | $0.98448 | $295.34400 |
| 500 | $0.92770 | $463.85000 |
| 1000 | $0.87420 | $874.20000 |
| 3000 | $0.82378 | $2471.34000 |
| 5000 | $0.77627 | $3881.35000 |
