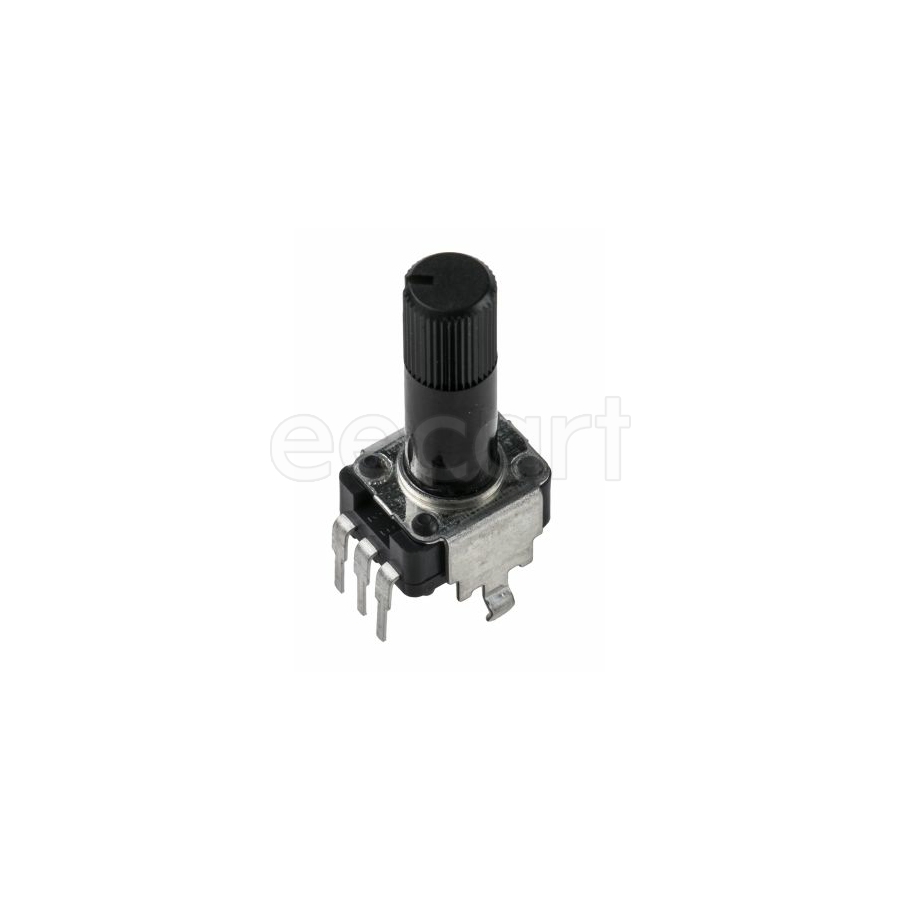

PTV09A-4020F-A103
Manufacturer:
Bourns
Mfr.Part #:
PTV09A-4020F-A103
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 20 % Number of Turns:1 Number of Gangs:1 50 mW
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 11.4 mm |
| Termination | Pin |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Number of Pins | 3 |
| Resistance | 10 kΩ |
| Power Rating | 50 mW |
| Number of Turns | 1 |
| Taper | Logarithmic |
| Packaging | Bulk |
| Depth | 12.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Potentiometer |
| Military Standard | Not |
| Max Power Dissipation | 50 mW |
| Number of Gangs | 1 |
| Actuator Diameter | 5.9944 mm |
| Actuator Length | 19.9898 mm |
| Schedule B | 8533400080 |
| Mount | Brackets, Snap in, Through Hole |
| Composition | Carbon |
Stock: 60
Distributors
pcbx
pcbxUnit Price$0.54801
Ext.Price$0.54801
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54801 | $0.54801 |
| 10 | $0.46508 | $4.65080 |
| 25 | $0.43883 | $10.97075 |
| 50 | $0.41406 | $20.70300 |
| 100 | $0.39070 | $39.07000 |
| 300 | $0.36185 | $108.55500 |
| 500 | $0.33513 | $167.56500 |
| 1000 | $0.32744 | $327.44000 |
| 3000 | $0.30760 | $922.80000 |
| 5000 | $0.28897 | $1444.85000 |
| 10000 | $0.27357 | $2735.70000 |
