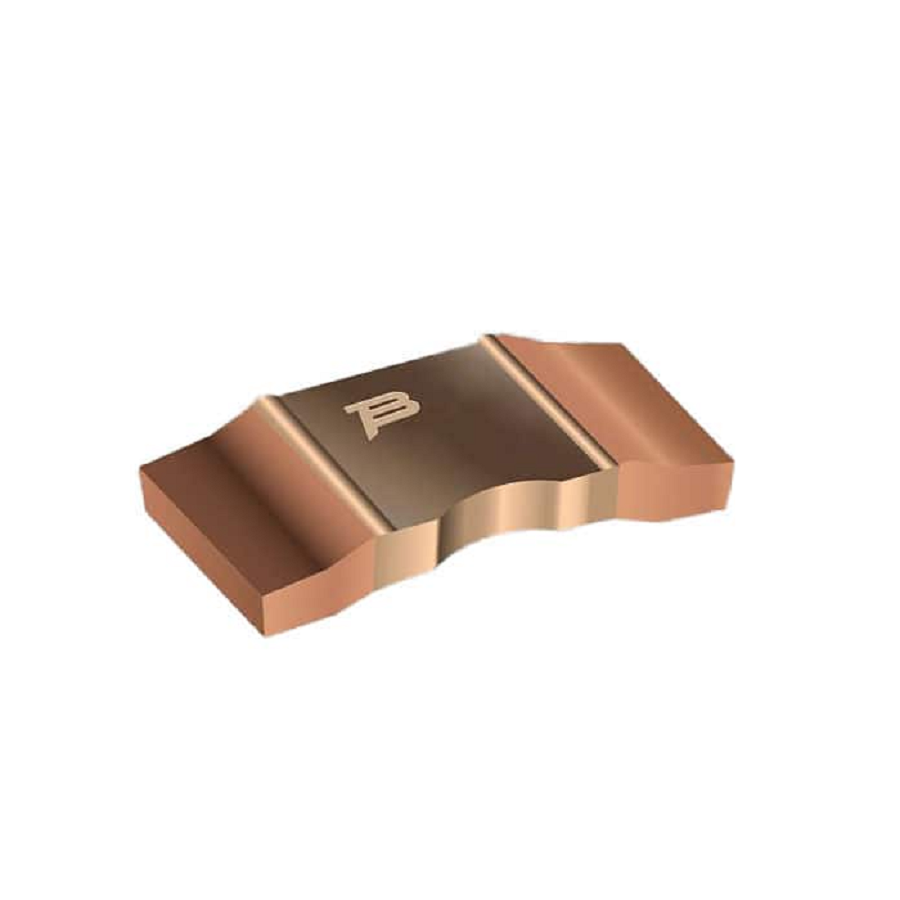

CSS2H-2512R-1L00F
Manufacturer:
Bourns
Mfr.Part #:
CSS2H-2512R-1L00F
Datasheet:
Description:
Chip SMD Resistors 2512(6432 Metric) SMD/SMT Metal Element, Metal Strip 1 mΩ 1 % 5 W 50 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Height - Seated (Max) | 0.51 mm |
| Length | 6.35 mm |
| Width | 3.048 mm |
| Max Operating Temperature | 170 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Resistance | 1 mΩ |
| Power Rating | 5 W |
| Composition(Kit Type) | Metal Element, Metal Strip |
| Temperature Coefficient | 50 ppm/°C |
| Height | 508 µm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | Moisture Resistant |
| Max Power Dissipation | 5 W |
| Number of Terminations | 2 |
| Schedule B | 8533210045 |
Stock: 883
Distributors
pcbx
pcbxUnit Price$0.54374
Ext.Price$0.54374
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54374 | $0.54374 |
| 10 | $0.43536 | $4.35360 |
| 25 | $0.39765 | $9.94125 |
| 50 | $0.36320 | $18.16000 |
| 100 | $0.33174 | $33.17400 |
| 300 | $0.31563 | $94.68900 |
| 500 | $0.30031 | $150.15500 |
| 1000 | $0.28227 | $282.27000 |
