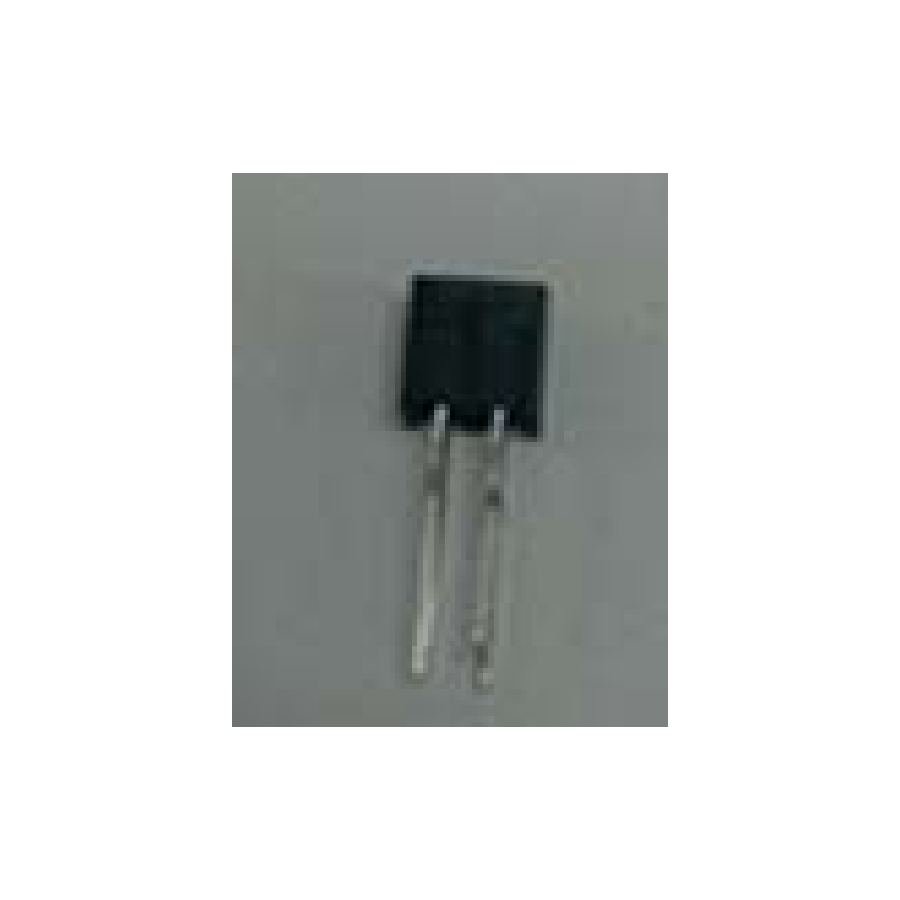

ITR20001/T
Manufacturer:
Everlight
Mfr.Part #:
ITR20001/T
Datasheet:
Description:
Photoelectric Sensors Through Hole Sensing Method:Reflective Sensing Distance:5 mm
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 1.2 V |
| Output Type | Phototransistor |
| Power Dissipation | 75 mW |
| Max Collector Current | 20 mA |
| Collector Emitter Breakdown Voltage | 30 V |
| Output Configuration | Phototransistor |
| Rise Time | 25 µs |
| Wavelength | 940 nm |
| Collector Emitter Voltage (VCEO) | 30 V |
| Reverse Breakdown Voltage | 5 V |
| Sensing Method | Reflective |
| Sensing Distance | 5 mm |
| Reverse Voltage | 5 V |
Stock: 3109
Distributors
pcbx
pcbxUnit Price$0.22906
Ext.Price$0.22906
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22906 | $0.22906 |
| 10 | $0.20180 | $2.01800 |
| 50 | $0.17779 | $8.88950 |
| 100 | $0.15185 | $15.18500 |
| 500 | $0.12969 | $64.84500 |
| 1000 | $0.12318 | $123.18000 |
| 3000 | $0.11700 | $351.00000 |
| 5000 | $0.11113 | $555.65000 |
