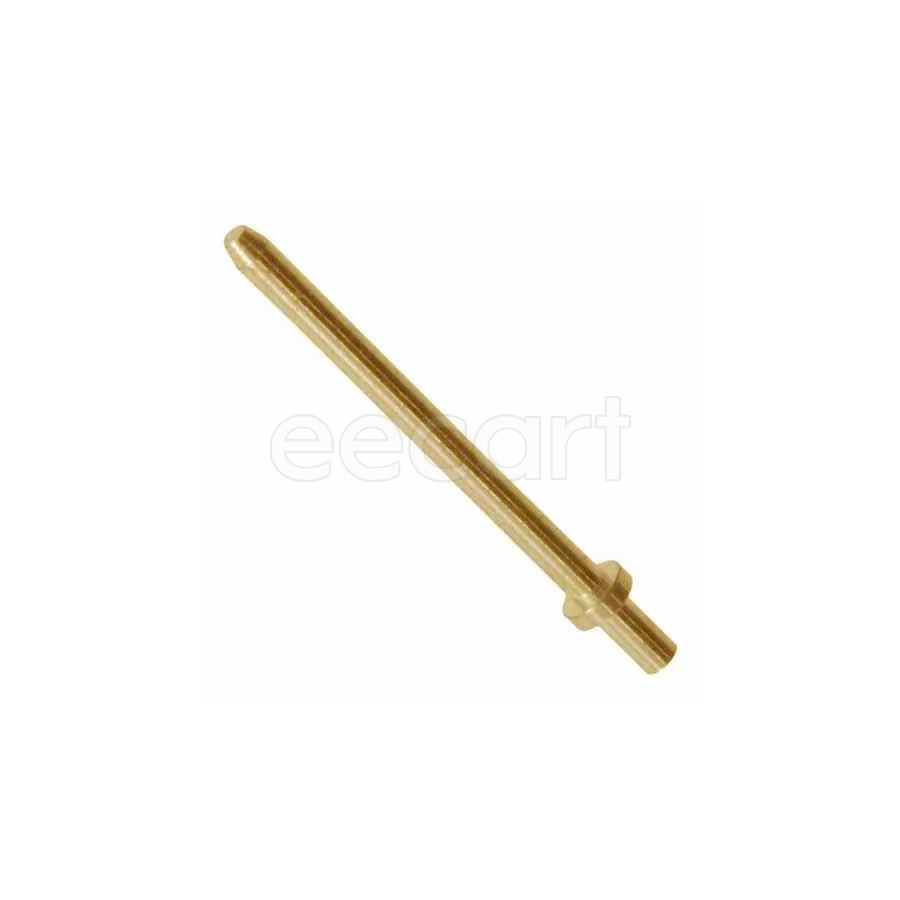

H2170-05
Manufacturer:
Harwin
Mfr.Part #:
H2170-05
Datasheet:
Description:
Terminals Through Hole Female
| Parameter | Value |
|---|---|
| Length | 12.83 mm |
| Termination | PC Pin |
| Material | Brass |
| Packaging | Bulk |
| Depth | 1.78 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Type | PC Pin |
| Gender | Female |
| Body Material | Brass |
| Hole Diameter | 1.143 mm |
| Insulation | Not Insulated |
| Outside Diameter | 1.91 mm |
| Plating | Gold |
| Termination Style | Swage |
| Body Plating | Gold |
| Tail Length | 12.7 mm |
| Flange Diameter | 1.778 mm |
| Board Thickness | 1.6002 mm |
Stock: 11574
Distributors
pcbx
pcbxUnit Price$0.26930
Ext.Price$0.26930
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26930 | $0.26930 |
| 10 | $0.19578 | $1.95780 |
| 50 | $0.17501 | $8.75050 |
| 100 | $0.15645 | $15.64500 |
| 500 | $0.14106 | $70.53000 |
| 1000 | $0.13764 | $137.64000 |
| 3000 | $0.13231 | $396.93000 |
| 5000 | $0.12719 | $635.95000 |
| 10000 | $0.12226 | $1222.60000 |
| 30000 | $0.11790 | $3537.00000 |
| 50000 | $0.11370 | $5685.00000 |
