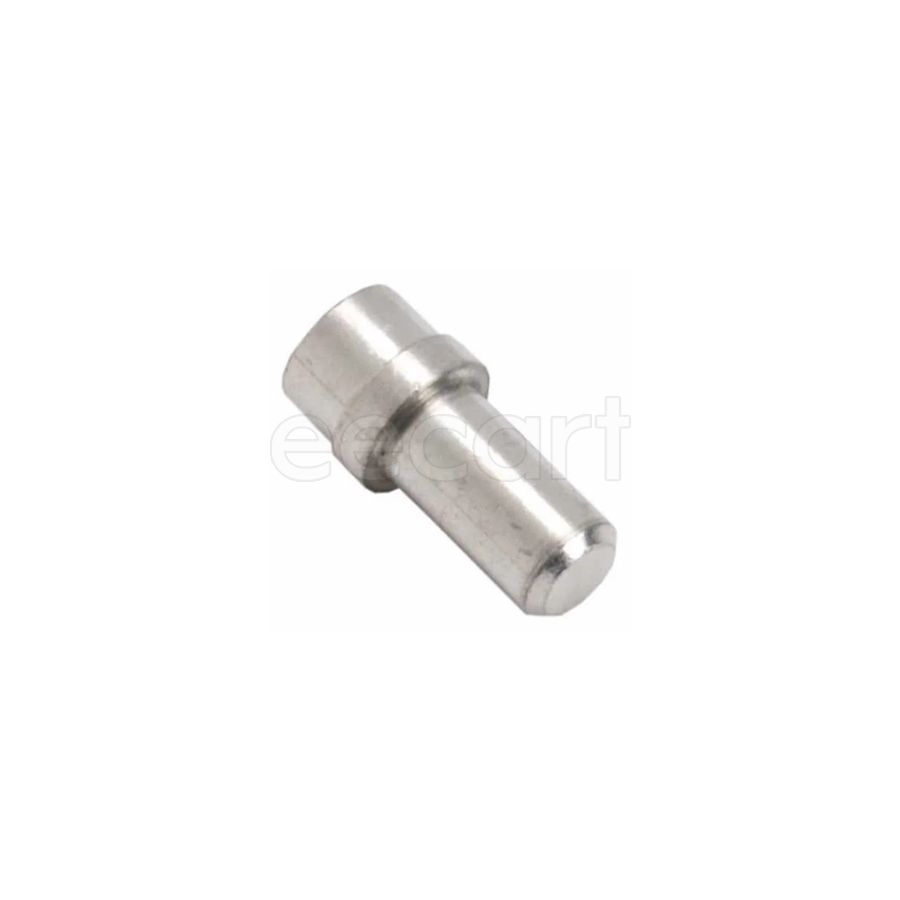

H3182-01
Manufacturer:
Harwin
Mfr.Part #:
H3182-01
Datasheet:
Description:
Terminals SMD/SMT Receptacle
| Parameter | Value |
|---|---|
| Length | 15.65 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Material | Brass |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Beryllium Copper |
| Type | Circuit Board Hardware - PCB |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Orientation | Vertical |
| Gender | Receptacle |
| Number of Contacts | 1 |
| Hole Diameter | 2.01 mm |
| Connector Type | Connector, PCB, Socket |
| Number of Rows | 1 |
| Contact Resistance | 25 mΩ |
| Outside Diameter | 2.67 mm |
| Plating | Tin |
| Termination Style | Solder |
| Flange Diameter | 2.667 mm |
| Socket Depth | 3.556 mm |
| Mounting Hole Diameter | 2.0066 mm |
Stock: 3357
Distributors
pcbx
pcbxUnit Price$0.27529
Ext.Price$0.27529
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27529 | $0.27529 |
| 10 | $0.20860 | $2.08600 |
| 25 | $0.19684 | $4.92100 |
| 50 | $0.18574 | $9.28700 |
| 100 | $0.17526 | $17.52600 |
| 300 | $0.16694 | $50.08200 |
| 500 | $0.15902 | $79.51000 |
| 1000 | $0.15560 | $155.60000 |
| 3000 | $0.15150 | $454.50000 |
| 5000 | $0.14751 | $737.55000 |
| 10000 | $0.14363 | $1436.30000 |
