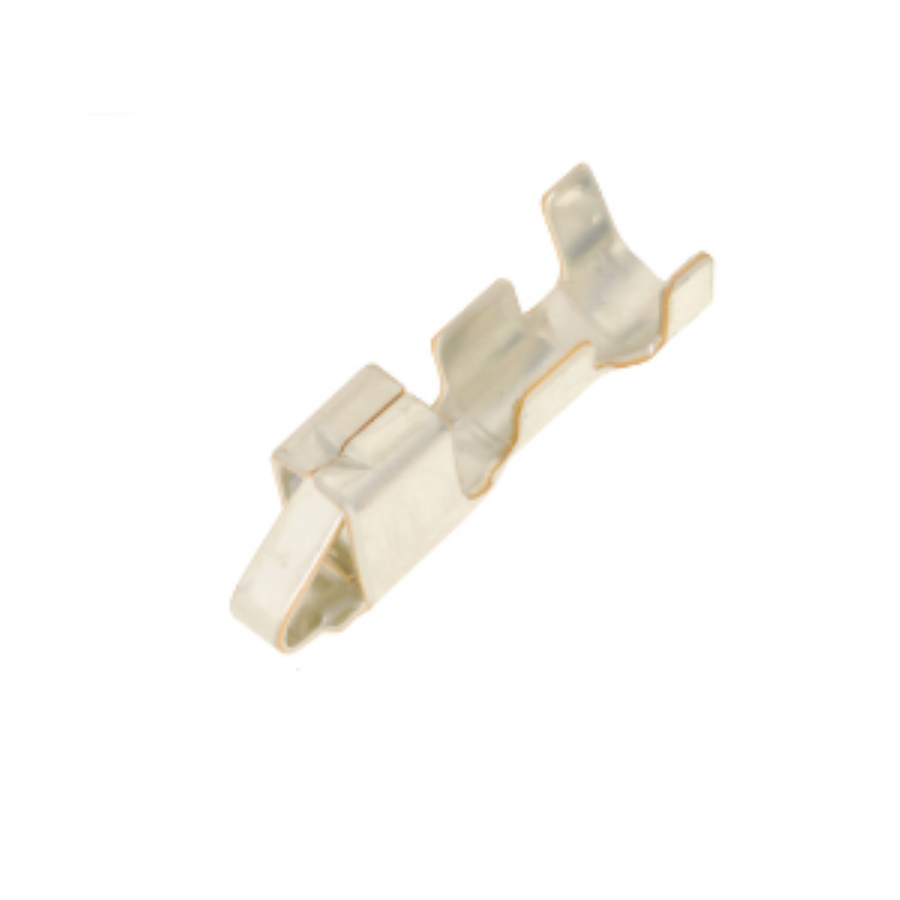

SHF-001T-0.8BS
Manufacturer:
JST
Mfr.Part #:
SHF-001T-0.8BS
Datasheet:
Description:
Terminals Free Hanging (In-Line) 28 AWG Female
| Parameter | Value |
|---|---|
| Length | 9 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Gender | Female |
| Connector Type | Crimp |
| Wire/Cable Gauge | 28 AWG |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Termination Style | Crimp |
Stock: 104133
Distributors
pcbx
pcbxUnit Price$0.06034
Ext.Price$0.06034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06034 | $0.06034 |
| 10 | $0.03017 | $0.30170 |
| 50 | $0.02321 | $1.16050 |
| 100 | $0.01785 | $1.78500 |
| 500 | $0.01573 | $7.86500 |
| 1000 | $0.01387 | $13.87000 |
| 3000 | $0.01239 | $37.17000 |
| 5000 | $0.01107 | $55.35000 |
| 10000 | $0.00980 | $98.00000 |
| 30000 | $0.00924 | $277.20000 |
| 50000 | $0.00871 | $435.50000 |
| 100000 | $0.00812 | $812.00000 |
