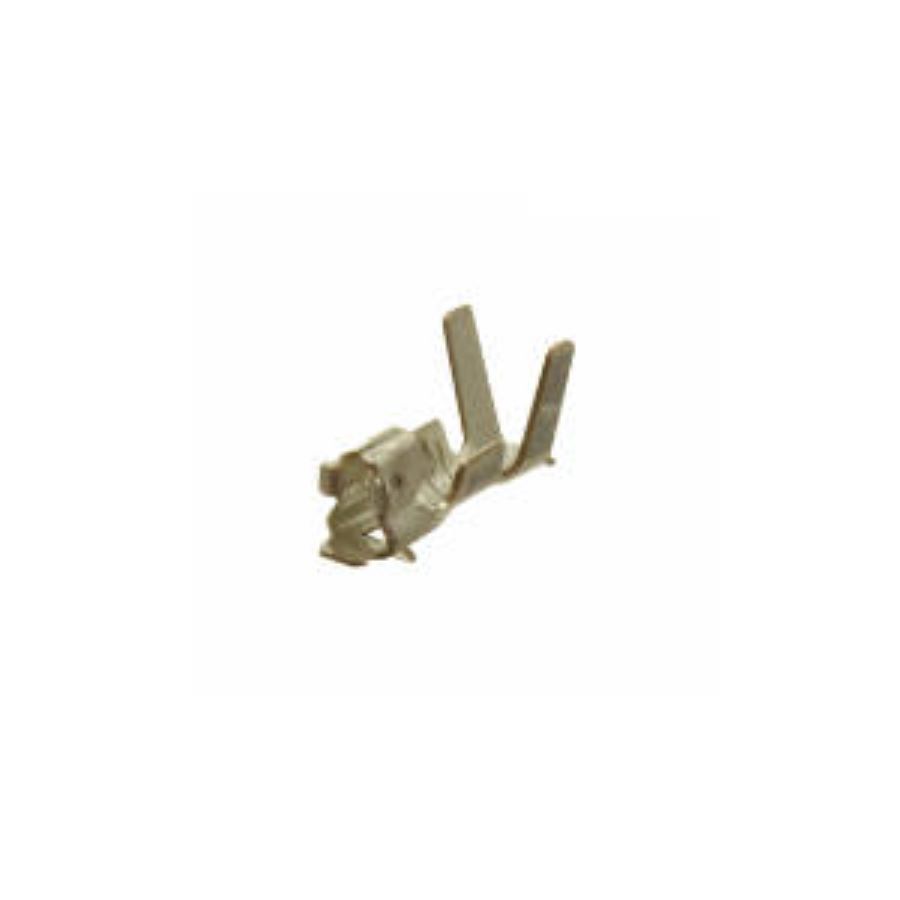

SXH-001T-P0.6N
Manufacturer:
JST
Mfr.Part #:
SXH-001T-P0.6N
Datasheet:
Description:
Terminals Free Hanging 22 AWG to 26 AWG Socket
| Parameter | Value |
|---|---|
| Length | 6.5 mm |
| Width | 1.8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Type | Stamped |
| Current Rating | 3 A |
| Gender | Socket |
| Number of Poles | 1 |
| Wire/Cable Gauge | 22 AWG to 26 AWG |
| Contact Resistance | 10 mΩ |
| Shape | Straight |
| Termination Style | Crimp |
Stock: 21383
Distributors
pcbx
pcbxUnit Price$0.05016
Ext.Price$0.05016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05016 | $0.05016 |
| 10 | $0.02508 | $0.25080 |
| 50 | $0.01929 | $0.96450 |
| 100 | $0.01484 | $1.48400 |
| 500 | $0.01320 | $6.60000 |
| 1000 | $0.01174 | $11.74000 |
| 3000 | $0.01088 | $32.64000 |
| 5000 | $0.01009 | $50.45000 |
| 10000 | $0.00911 | $91.10000 |
| 30000 | $0.00865 | $259.50000 |
| 50000 | $0.00822 | $411.00000 |
| 100000 | $0.00772 | $772.00000 |
