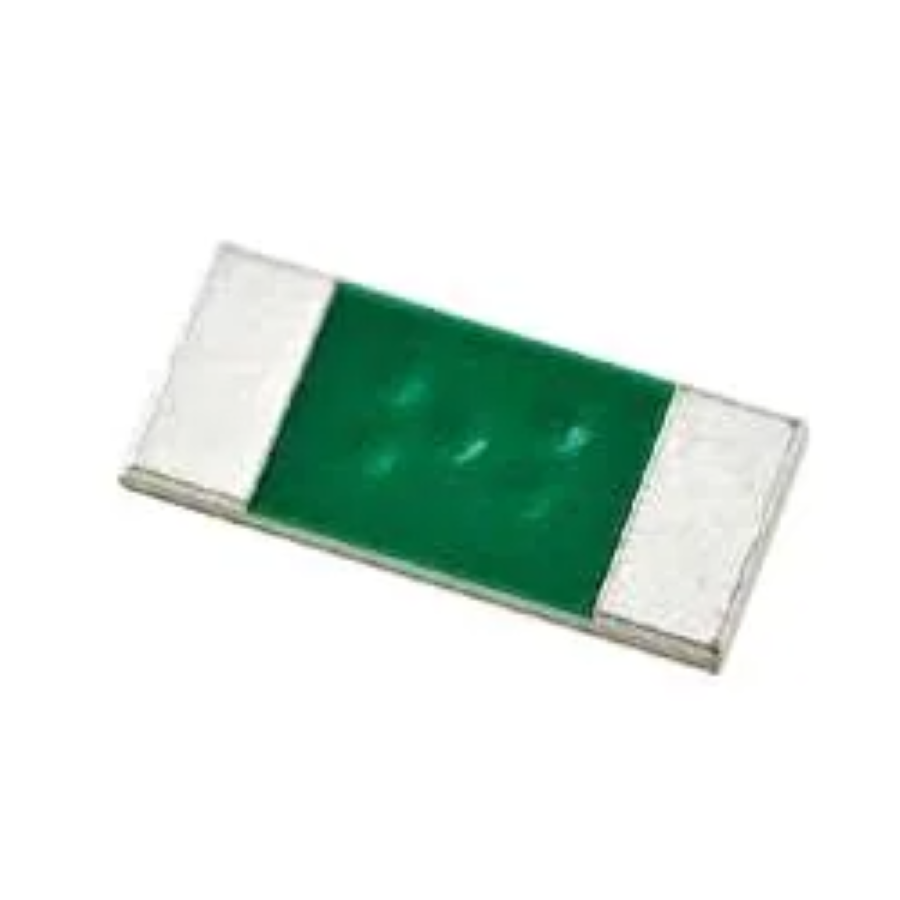

KRL1220E-M-R047-F-T5
Manufacturer:
Susumu
Mfr.Part #:
KRL1220E-M-R047-F-T5
Datasheet:
Description:
Chip SMD Resistors 0805(2012 Metric) SMD/SMT Metal Foil 47 mΩ 1 % 500 mW 50 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Height - Seated (Max) | 0.7 mm |
| Length | 2 mm |
| Width | 1.2446 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Resistance | 47 mΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Metal Foil |
| Temperature Coefficient | 50 ppm/°C |
| Height | 711.2 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Features | Automotive AEC-Q200 |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Power Dissipation | 500 mW |
| Number of Terminations | 2 |
| Max Thickness | 700 µm |
Stock: 8540
Distributors
pcbx
pcbxUnit Price$0.22570
Ext.Price$0.22570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22570 | $0.22570 |
| 10 | $0.14363 | $1.43630 |
| 50 | $0.11727 | $5.86350 |
| 100 | $0.09575 | $9.57500 |
| 500 | $0.07447 | $37.23500 |
| 1000 | $0.06763 | $67.63000 |
| 3000 | $0.06173 | $185.19000 |
| 5000 | $0.05634 | $281.70000 |
| 10000 | $0.05198 | $519.80000 |
