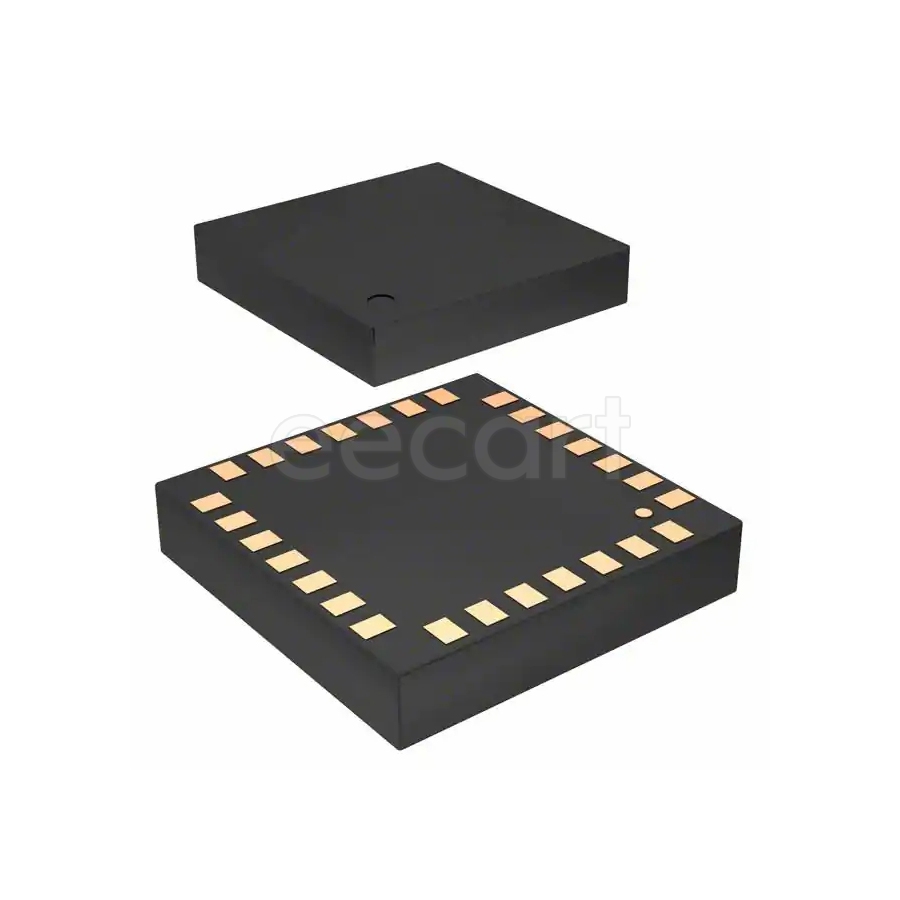

LSM303DLHTR
Manufacturer:
STMicroelectronics
Mfr.Part #:
LSM303DLHTR
Datasheet:
Description:
Accelerometers VFLGA-28 SMD/SMT 3 Axis 2 g, 4 g, 6 g, 8 g, 16 g 0.061 mg/LSB, 0.122 mg/LSB, 0.183 mg/LSB, 0.244 mg/LSB, 0.732 mg/LSB Digital
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 28 |
| Packaging | Reel |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Interface | I²C |
| Axis | X, Y, Z |
| Output Type | Digital |
| Max Supply Voltage | 3.3 V |
| Min Supply Voltage | 2.5 V |
| Max Supply Voltage (DC) | 3.3 V |
| Sensitivity | 0.061 mg/LSB, 0.122 mg/LSB, 0.183 mg/LSB, 0.244 mg/LSB, 0.732 mg/LSB |
| Sensor Type | 3 Axis |
| Min Supply Voltage (DC) | 2.5 V |
| Resolution | 16 bit |
| Sensitivity (mV/g) | |
| Interface Type(Data Interface) | I²C |
| Acceleration | 2 g, 4 g, 6 g, 8 g, 16 g |
Out of Stock
Distributors
--
--Unit Price$--
Ext.Price$--
| Qty | Unit Price | Ext.Price |
|---|---|---|
No data | ||
