LVK25R010FER
Manufacturer:
Ohmite
Mfr.Part #:
LVK25R010FER
Datasheet:
Description:

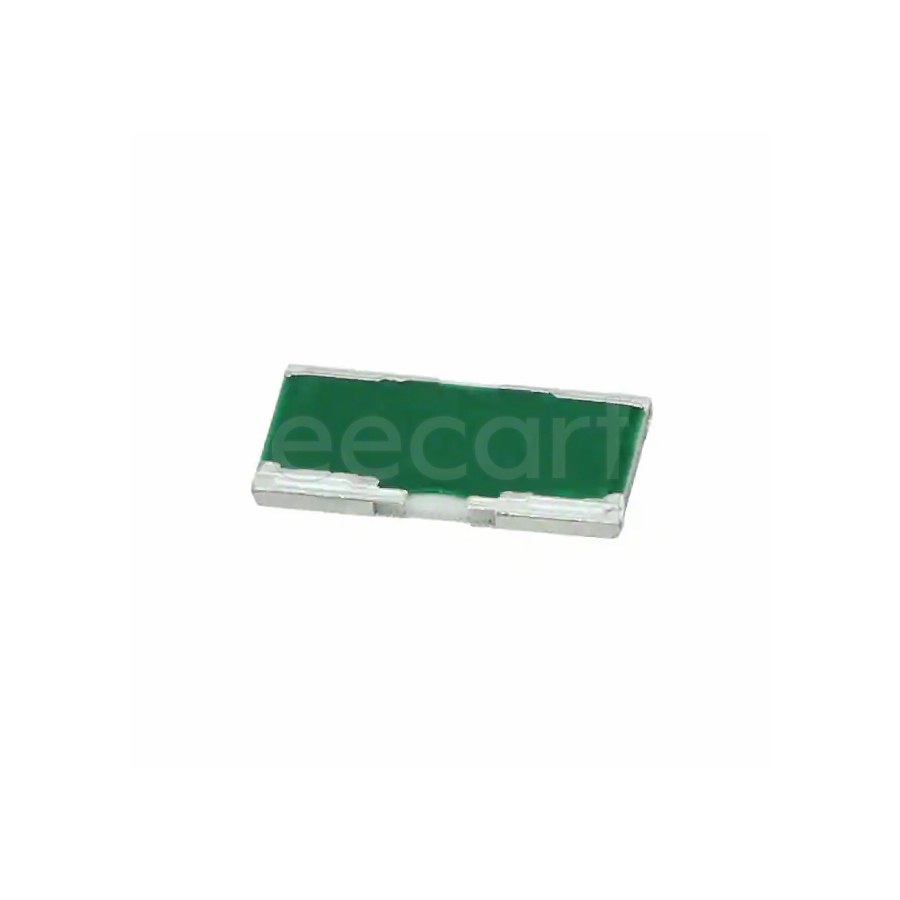

Chip SMD Resistors 1224(3264 Metric) SMD/SMT Metal Film, Thick Film 10 mΩ 1 % 2 W 100 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Length | 3.2 mm |
| Width | 6.4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1224 |
| Case Code (Metric) | 3264 |
| Number of Pins | 2 |
| Resistance | 10 mΩ |
| Power Rating | 2 W |
| Composition(Kit Type) | Metal Film, Thick Film |
| Temperature Coefficient | 100 ppm/°C |
| Height | 500 µm |
| Packaging | Reel |
| Depth | 6.4 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Height - Seated (Max) | 0.7 mm |
Stock: 2365
Distributors
pcbx
pcbxUnit Price$1.50810
Ext.Price$1.50810
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50810 | $1.50810 |
| 10 | $1.00796 | $10.07960 |
| 25 | $0.78226 | $19.55650 |
| 50 | $0.74684 | $37.34200 |
| 100 | $0.71301 | $71.30100 |
| 300 | $0.64193 | $192.57900 |
| 500 | $0.57793 | $288.96500 |
| 1000 | $0.54544 | $545.44000 |
| 3000 | $0.53646 | $1609.38000 |
| 5000 | $0.52763 | $2638.15000 |
| 10000 | $0.51894 | $5189.40000 |
