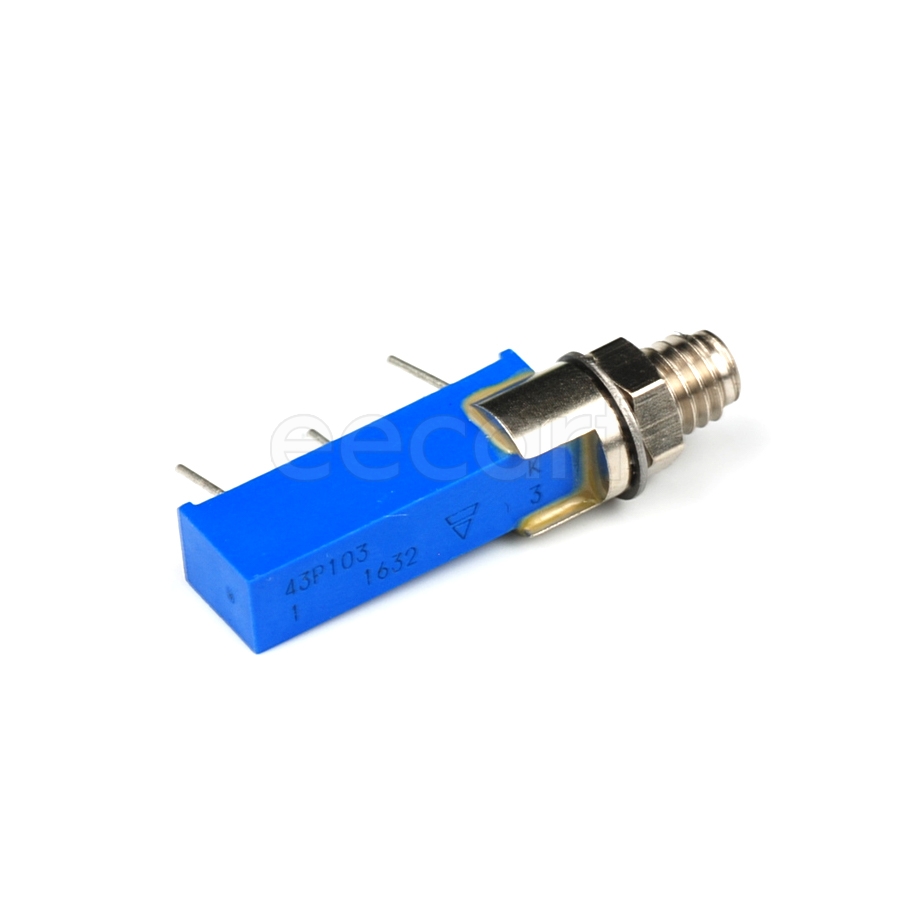

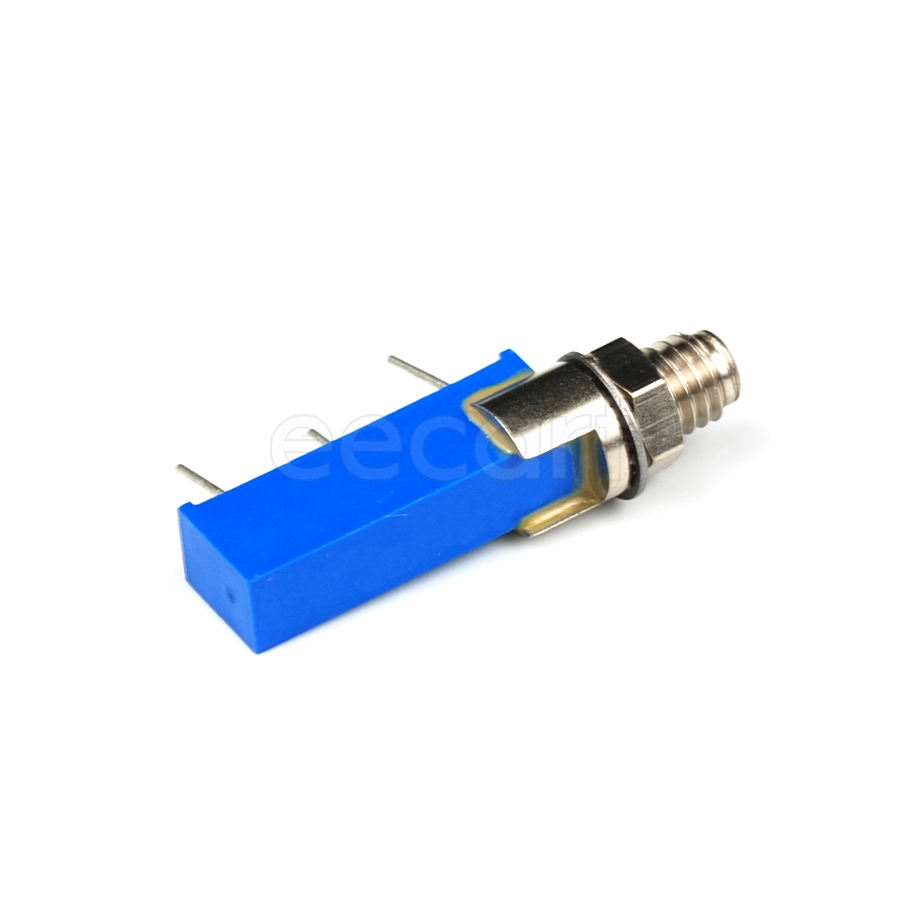

M43P103KB30T601
Manufacturer:
Vishay
Mfr.Part #:
M43P103KB30T601
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 10 % Number of Turns:18 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 400 V |
| Tolerance | 10 % |
| Length | 27.76 mm |
| Termination | Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 18 |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Lead Length | 5.3 mm |
| Military Standard | Not |
| Packaging | Bulk |
Stock: 53
Distributors
pcbx
pcbxUnit Price$4.98053
Ext.Price$4.98053
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.98053 | $4.98053 |
| 10 | $4.18530 | $41.85300 |
| 25 | $3.90308 | $97.57700 |
| 50 | $3.70098 | $185.04900 |
| 100 | $3.50884 | $350.88400 |
| 300 | $3.22330 | $966.99000 |
| 500 | $3.09821 | $1549.10500 |
| 1000 | $2.93594 | $2935.94000 |
