MMA02040C1001FB300
Manufacturer:
Vishay
Mfr.Part #:
MMA02040C1001FB300
Datasheet:
Description:

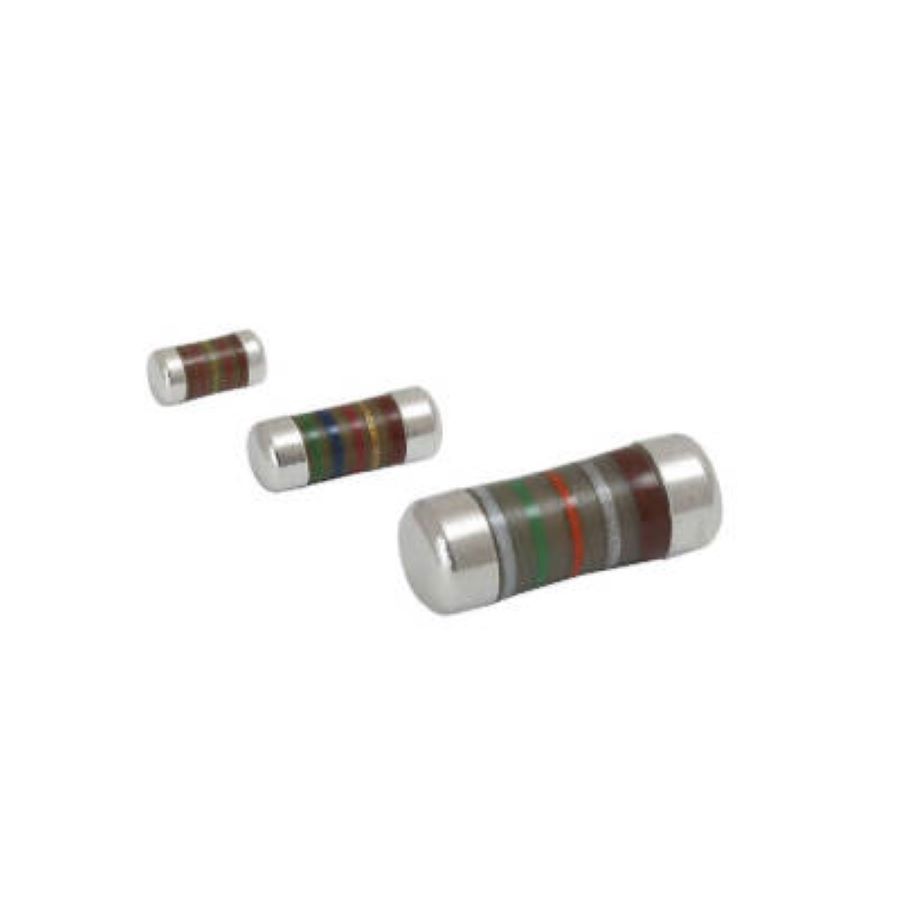

Chip SMD Resistors MELF,0204 PCB Mount Thin Film 1 kΩ 1 % 400 mW 50 ppm/°C
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 200 V |
| Tolerance | 1 % |
| Length | 3.6 mm |
| Diameter | 1.4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 200 V |
| Number of Pins | 2 |
| Resistance | 1 kΩ |
| Power Rating | 400 mW |
| Composition(Kit Type) | Thin Film |
| Temperature Coefficient | 50 ppm/°C |
| Height | 1.4 mm |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Features | Anti-Sulfur, Automotive AEC-Q200 |
| Operating Supply Voltage | 200 V |
| Military Standard | Not |
| Max Power Dissipation | 400 mW |
| Number of Terminations | 2 |
| Schedule B | 8533210045 |
Stock: 10877
Distributors
pcbx
pcbxUnit Price$0.06106
Ext.Price$0.06106
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06106 | $0.06106 |
| 10 | $0.03053 | $0.30530 |
| 50 | $0.02701 | $1.35050 |
| 100 | $0.02390 | $2.39000 |
| 500 | $0.02115 | $10.57500 |
| 1000 | $0.01871 | $18.71000 |
| 3000 | $0.01656 | $49.68000 |
| 5000 | $0.01507 | $75.35000 |
| 10000 | $0.01372 | $137.20000 |
