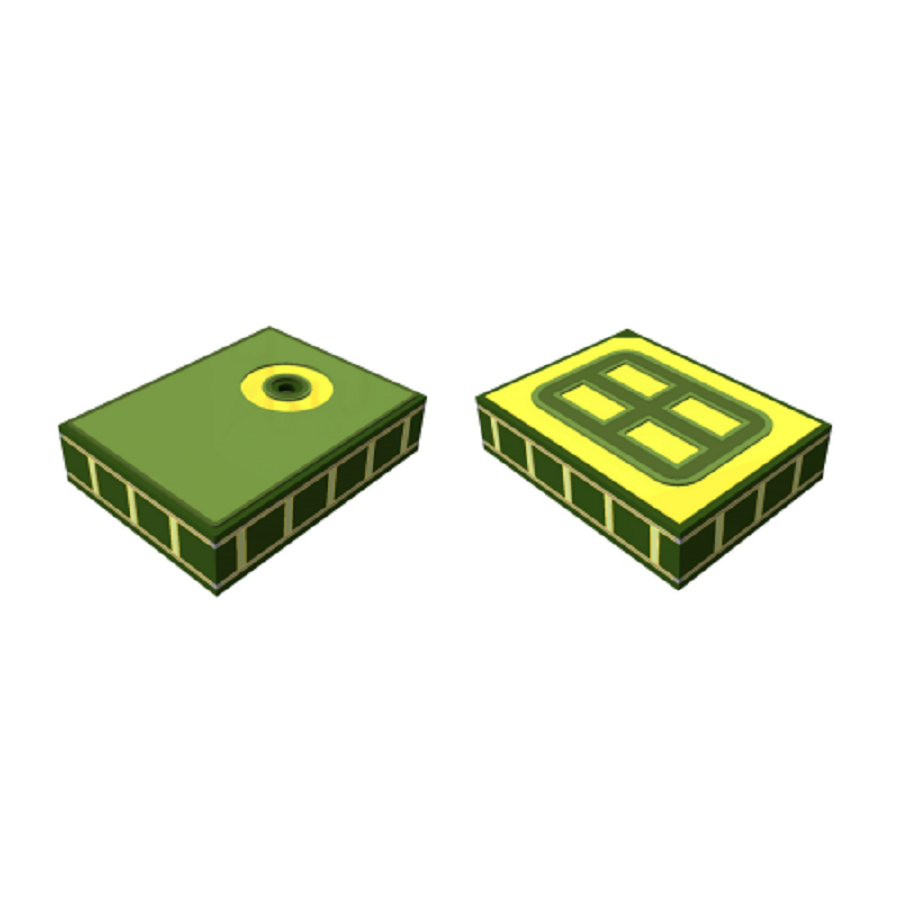

MP34DT05TR-A
Manufacturer:
STMicroelectronics
Mfr.Part #:
MP34DT05TR-A
Datasheet:
Description:
Microphones LLC(QFN) Rectangular 2.4 MHz -26 dB
| Parameter | Value |
|---|---|
| Capacitance | 100 pF |
| Length | 3 mm |
| Width | 4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.1 mm |
| Packaging | Reel |
| Voltage Rating | 1.8 V |
| Depth | 1 mm |
| RoHS | Non-Compliant |
| Manufacturer Package Identifier | HCLGA-DM00231908 |
| Frequency | 2.4 MHz |
| Current | 650 µA |
| Operating Supply Voltage | 1.8 V |
| Output Type | Digital |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.6 V |
| Operating Supply Current | 650 µA |
| Direction(Counting Sequence) | Omnidirectional |
| Sensitivity | -26 dB |
| Nominal Supply Current | 650 µA |
| Shape | Rectangular |
| Signal to Noise Ratio (SNR) | 64 dB |
| Power Supply Rejection Ratio (PSRR) | 64 dB |
| Schedule B | 8518100000 |
| Directional Properties | Omnidirectional |
Stock: 3538
Distributors
pcbx
pcbxUnit Price$1.26444
Ext.Price$1.26444
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.26444 | $1.26444 |
| 10 | $1.03874 | $10.38740 |
| 25 | $0.95154 | $23.78850 |
| 50 | $0.89511 | $44.75550 |
| 100 | $0.83869 | $83.86900 |
| 300 | $0.78709 | $236.12700 |
| 500 | $0.73866 | $369.33000 |
| 1000 | $0.70703 | $707.03000 |
| 3000 | $0.63863 | $1915.89000 |
