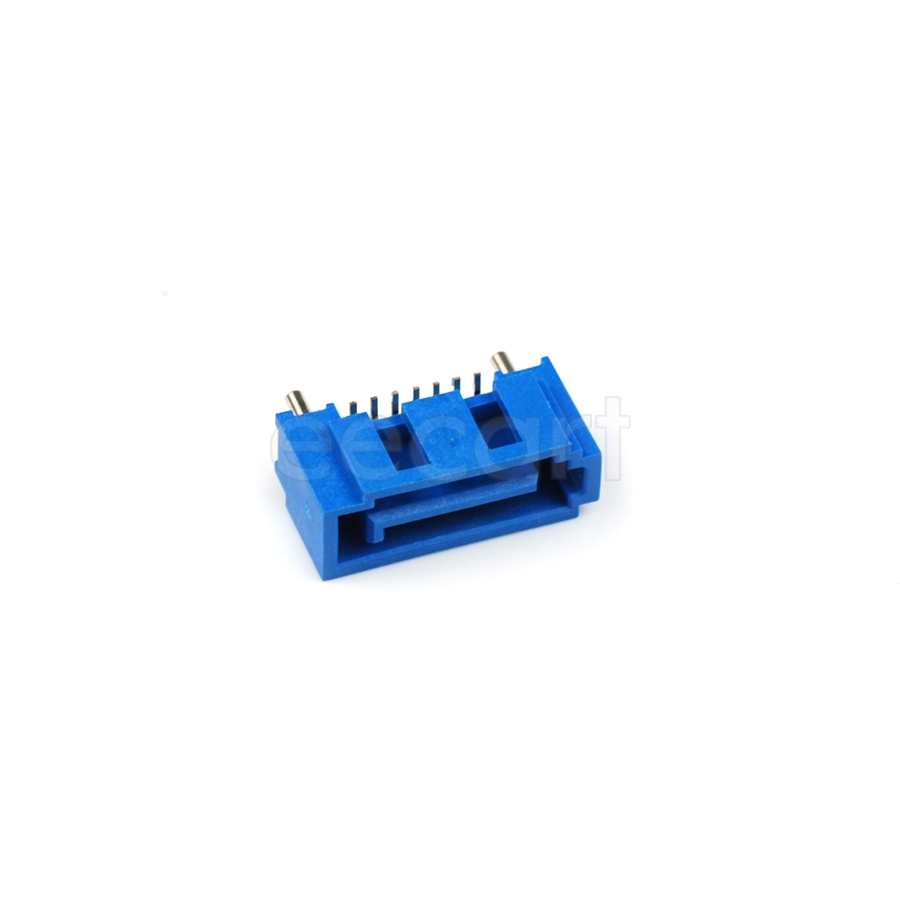

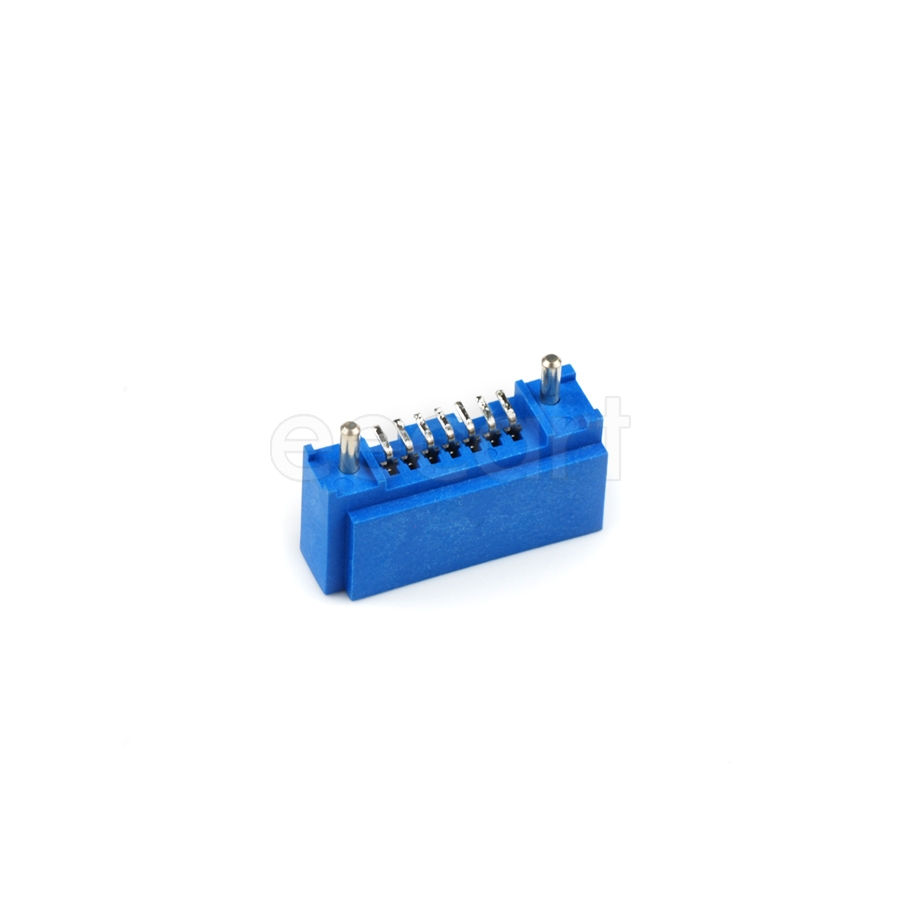

67800-5003
Manufacturer:
Molex
Mfr.Part #:
67800-5003
Datasheet:
Description:
I/O Connectors SMD/SMT Header, Shrouded SATA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Packaging | Tray |
| Voltage Rating | 15 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 15 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 7 |
| Orientation | Vertical |
| Color | Blue |
| Number of Contacts | 7 |
| Connector Type | SATA |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Connector Style | Header, Shrouded |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Country of Origin | US |
| Mounting Angle | Vertical |
Stock: 5318
Distributors
pcbx
pcbxUnit Price$0.83270
Ext.Price$0.83270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83270 | $0.83270 |
| 10 | $0.68209 | $6.82090 |
| 25 | $0.55872 | $13.96800 |
| 50 | $0.45766 | $22.88300 |
| 100 | $0.37488 | $37.48800 |
| 300 | $0.30707 | $92.12100 |
| 500 | $0.25153 | $125.76500 |
| 1000 | $0.20604 | $206.04000 |
| 3000 | $0.19490 | $584.70000 |
| 5000 | $0.18436 | $921.80000 |
| 10000 | $0.17440 | $1744.00000 |
