ORNTA1002AT1
Manufacturer:
Vishay
Mfr.Part #:
ORNTA1002AT1
Datasheet:
Description:

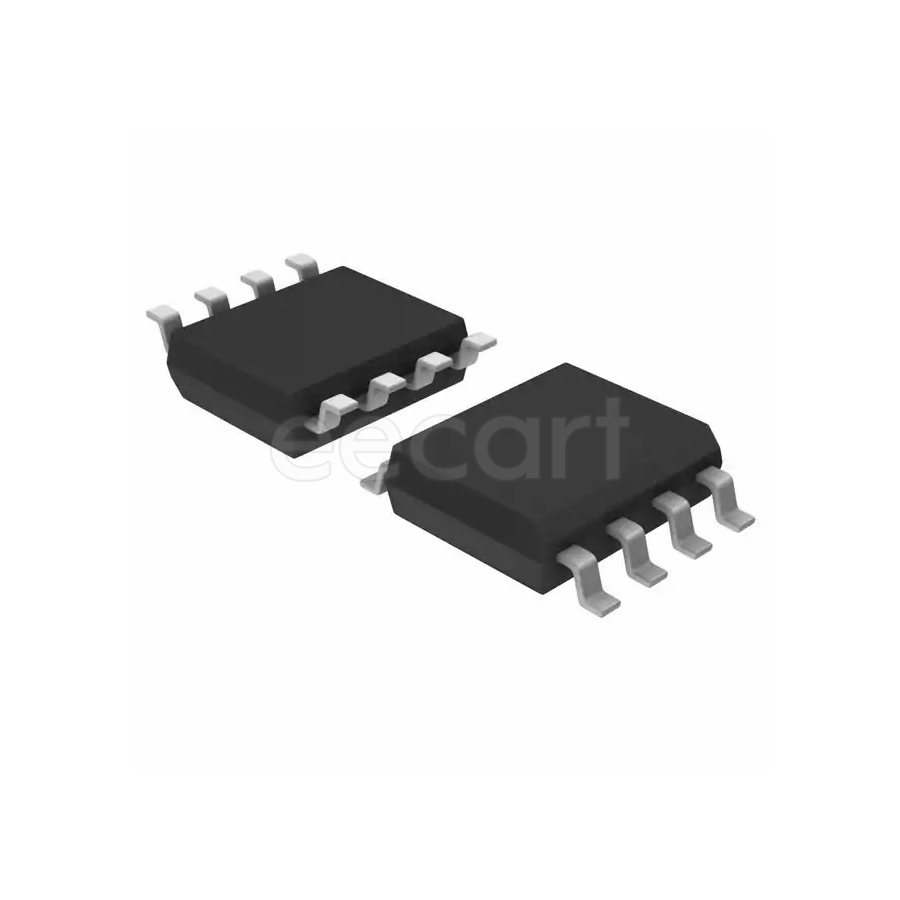

Resistor Arrays SOIC-8 SMD/SMT 10 kΩ 0.1 % Number of Resistors:4 Circuit Type:Isolated
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Tolerance | 0.1 % |
| Length | 4.9276 mm |
| Width | 3.99 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Resistance | 10 kΩ |
| Power Rating | 400 mW |
| Composition(Kit Type) | Thin Film |
| Temperature Coefficient | 25 ppm/°C |
| Number of Resistors | 4 |
| Power Per Element | 100 mW |
| Height | 1.7272 mm |
| Circuit Type | Isolated |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| REACH SVHC | Unknown |
| Number of Terminals | 8 |
| Number of Elements | 4 |
| Schedule B | 8533210025 |
| Height - Seated (Max) | 1.73 mm |
Stock: 1
Distributors
pcbx
pcbxUnit Price$3.80581
Ext.Price$3.80581
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.80581 | $3.80581 |
| 10 | $3.25352 | $32.53520 |
| 25 | $2.92503 | $73.12575 |
