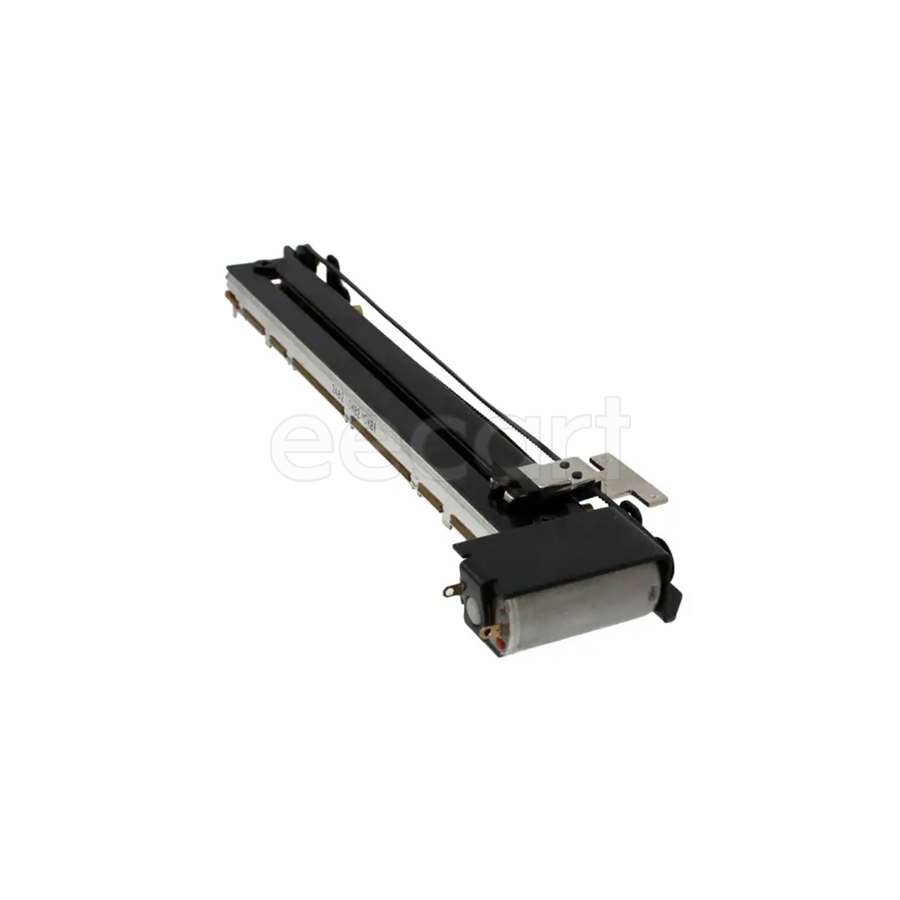

PSM01-081A-103B2
Manufacturer:
Bourns
Mfr.Part #:
PSM01-081A-103B2
Datasheet:
Description:
Variable Resistors and Potentiometers Through Hole 10 kΩ 20 % 500 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| Length | 152 mm |
| Width | 13.0048 mm |
| Termination | Pin |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Carbon, Potentiometer |
| Taper | Linear |
| Height | 13.2 mm |
| Depth | 35 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Potentiometer |
| Max Power Dissipation | 500 mW |
| Hole Diameter | 2 mm |
| Life (Cycles) | 100 kCycles |
| Schedule B | 8533400080 |
| Packaging | Tray |
Stock: 329
Distributors
pcbx
pcbxUnit Price$10.35063
Ext.Price$10.35063
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.35063 | $10.35063 |
| 10 | $9.53076 | $95.30760 |
| 25 | $8.99300 | $224.82500 |
| 50 | $8.61769 | $430.88450 |
| 100 | $8.32458 | $832.45800 |
| 300 | $8.04144 | $2412.43200 |
| 500 | $7.76793 | $3883.96500 |
| 1000 | $7.50372 | $7503.72000 |
