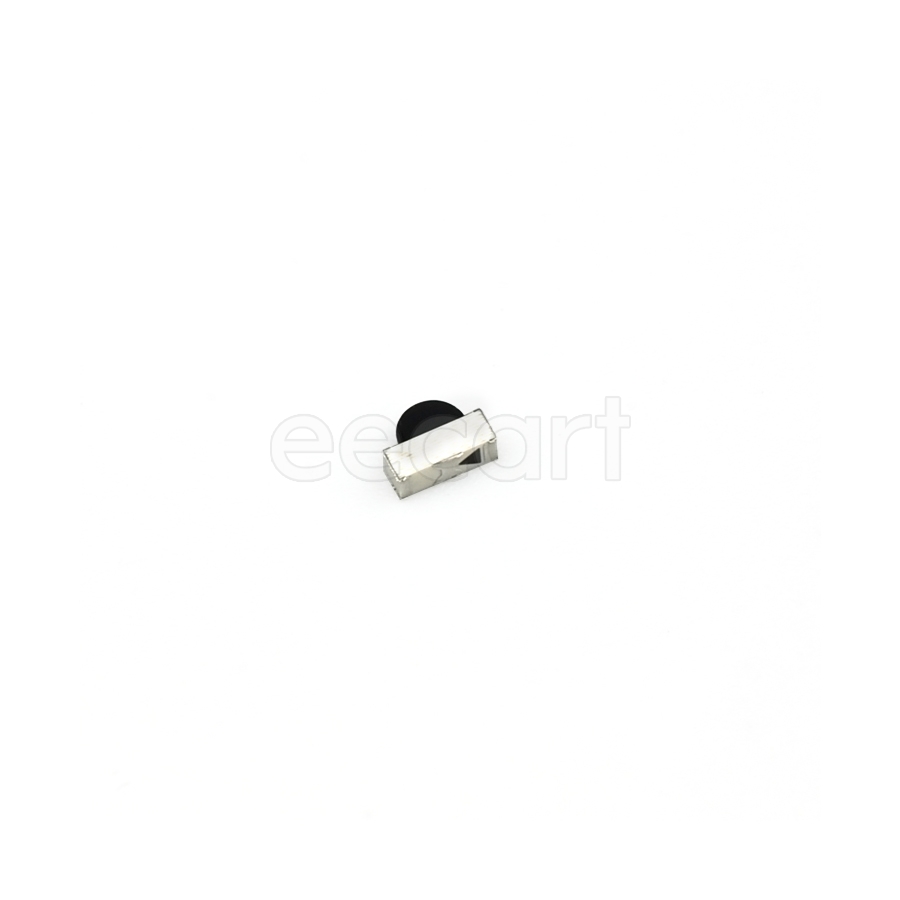

PT12-21B/TR8
Manufacturer:
Everlight
Mfr.Part #:
PT12-21B/TR8
Datasheet:
Description:
Phototransistor SMD SMD/SMT 940 nm
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 2 |
| Polarity | NPN |
| Orientation | Side View |
| Max Power Dissipation | 75 mW |
| Lens Style | Dome |
| Max Collector Current | 50 mA |
| Collector Emitter Breakdown Voltage | 30 V |
| Rise Time | 15 µs |
| Wavelength | 940 nm |
| Lens Color | Black |
| Collector Emitter Voltage (VCEO) | 30 V |
| Dark Current | 100 nA |
| Max Breakdown Voltage | 30 V |
| Collector Emitter Saturation Voltage | 400 mV |
| Schedule B | 8541409500 |
| Fall Time | 15 µs |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 4295
Distributors
pcbx
pcbxUnit Price$0.08832
Ext.Price$0.08832
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08832 | $0.08832 |
| 10 | $0.04416 | $0.44160 |
| 50 | $0.03933 | $1.96650 |
| 100 | $0.03502 | $3.50200 |
| 500 | $0.03201 | $16.00500 |
| 1000 | $0.02926 | $29.26000 |
| 3000 | $0.02674 | $80.22000 |
| 5000 | $0.02444 | $122.20000 |
| 10000 | $0.02234 | $223.40000 |
