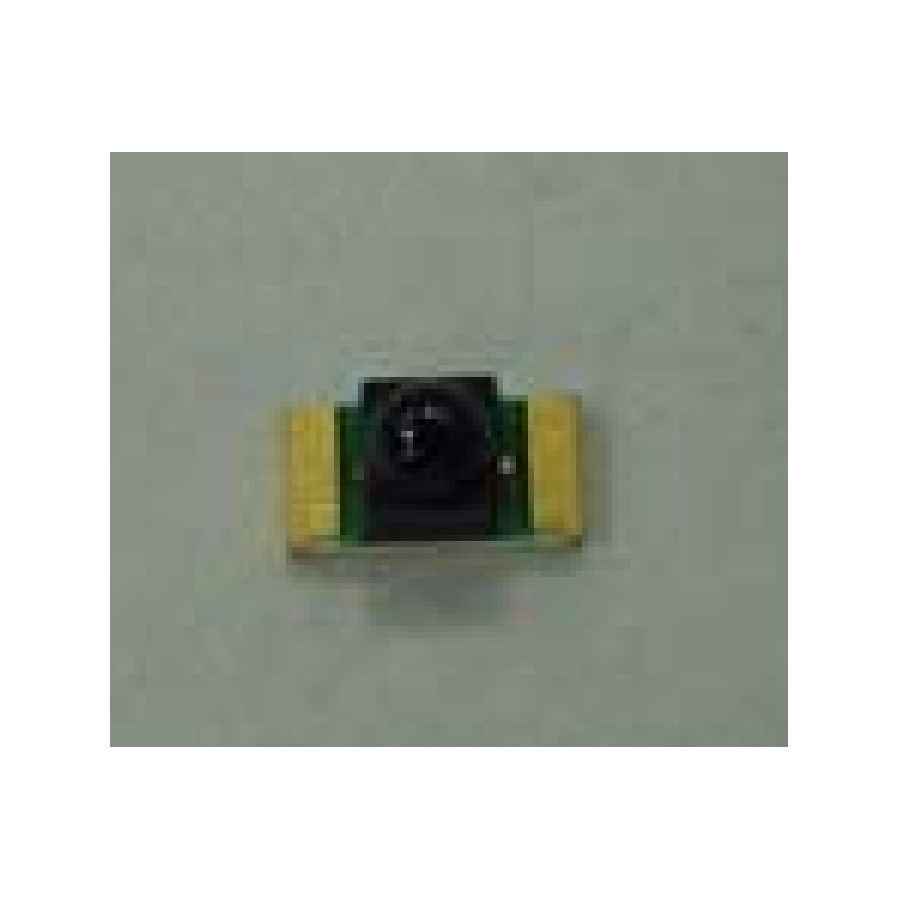

PT26-21B/TR8
Manufacturer:
Everlight
Mfr.Part #:
PT26-21B/TR8
Datasheet:
Description:
Phototransistor SMD/SMT SMD/SMT 940 nm
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Number of Pins | 2 |
| Packaging | Reel |
| RoHS | Compliant |
| Number of Elements | 1 |
| Orientation | Top View |
| Max Power Dissipation | 75 mW |
| Lens Style | Dome |
| Power Dissipation | 75 mW |
| Max Collector Current | 20 mA |
| Collector Emitter Breakdown Voltage | 30 V |
| Fall Time | 15 µs |
| Rise Time | 15 µs |
| Wavelength | 940 nm |
| Lens Color | Black |
| Collector Emitter Voltage (VCEO) | 5 V |
| Dark Current | 50 nA |
| Max Breakdown Voltage | 30 V |
| Collector Emitter Saturation Voltage | 400 mV |
Stock: 1780
Distributors
pcbx
pcbxUnit Price$0.10100
Ext.Price$0.10100
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10100 | $0.10100 |
| 10 | $0.05050 | $0.50500 |
| 50 | $0.04514 | $2.25700 |
| 100 | $0.04035 | $4.03500 |
| 500 | $0.03634 | $18.17000 |
| 1000 | $0.03273 | $32.73000 |
| 3000 | $0.02948 | $88.44000 |
| 5000 | $0.02655 | $132.75000 |
| 10000 | $0.02391 | $239.10000 |
