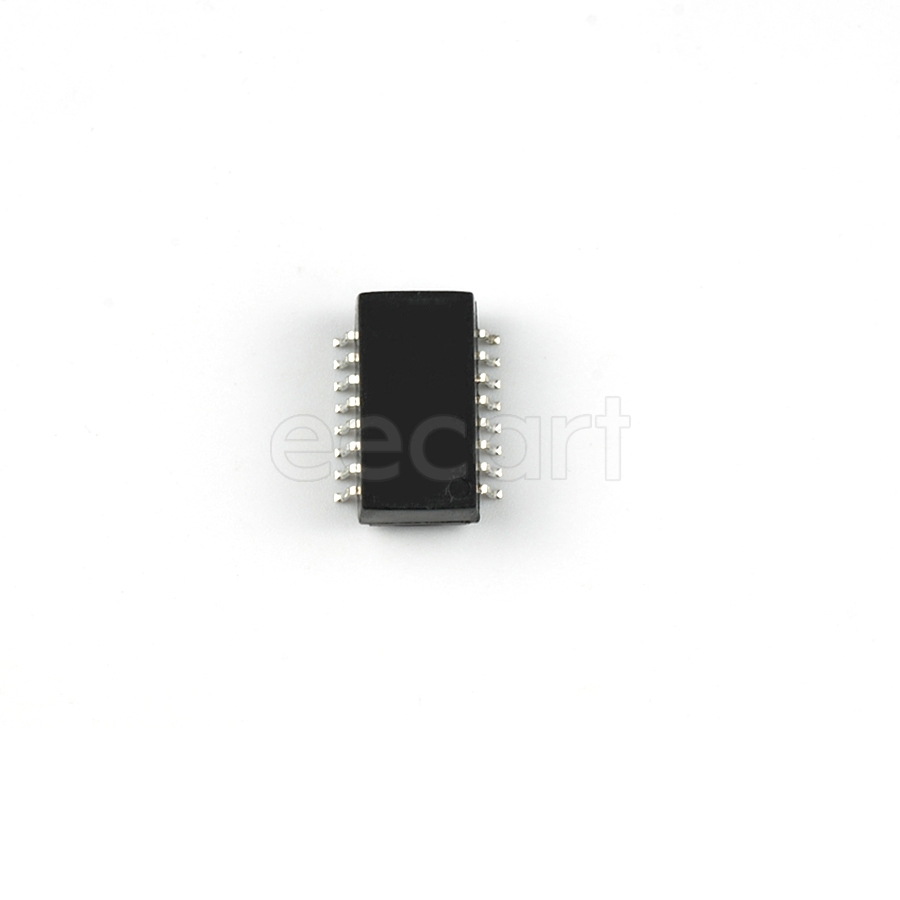

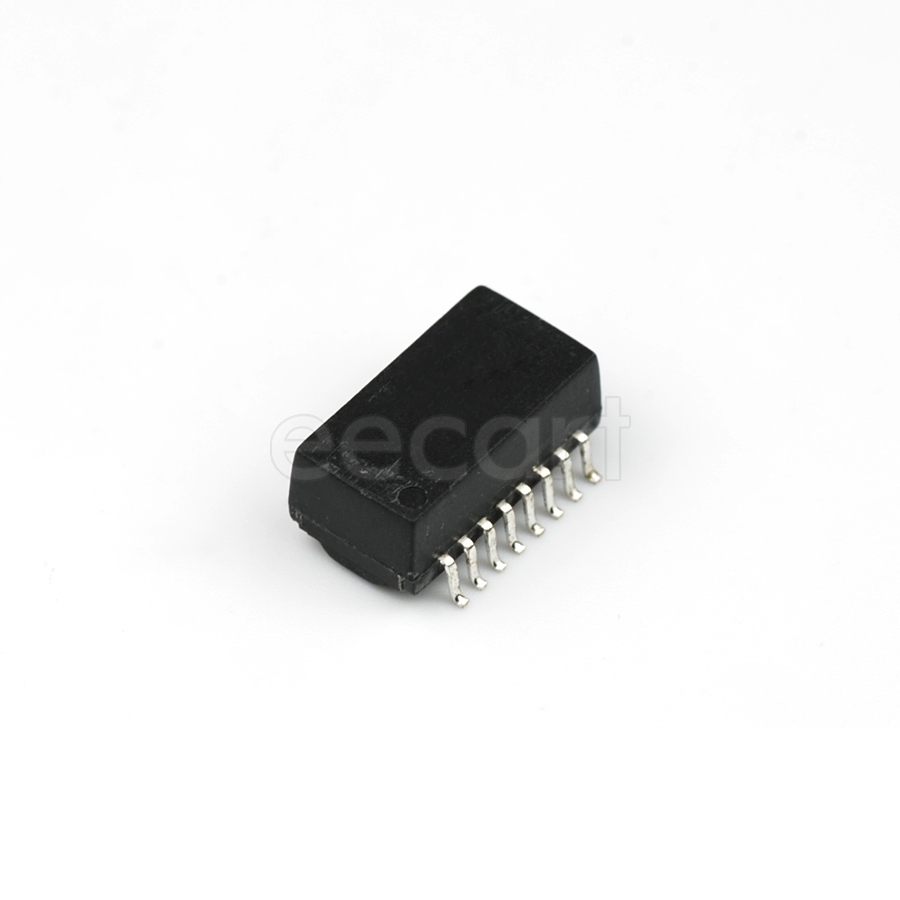

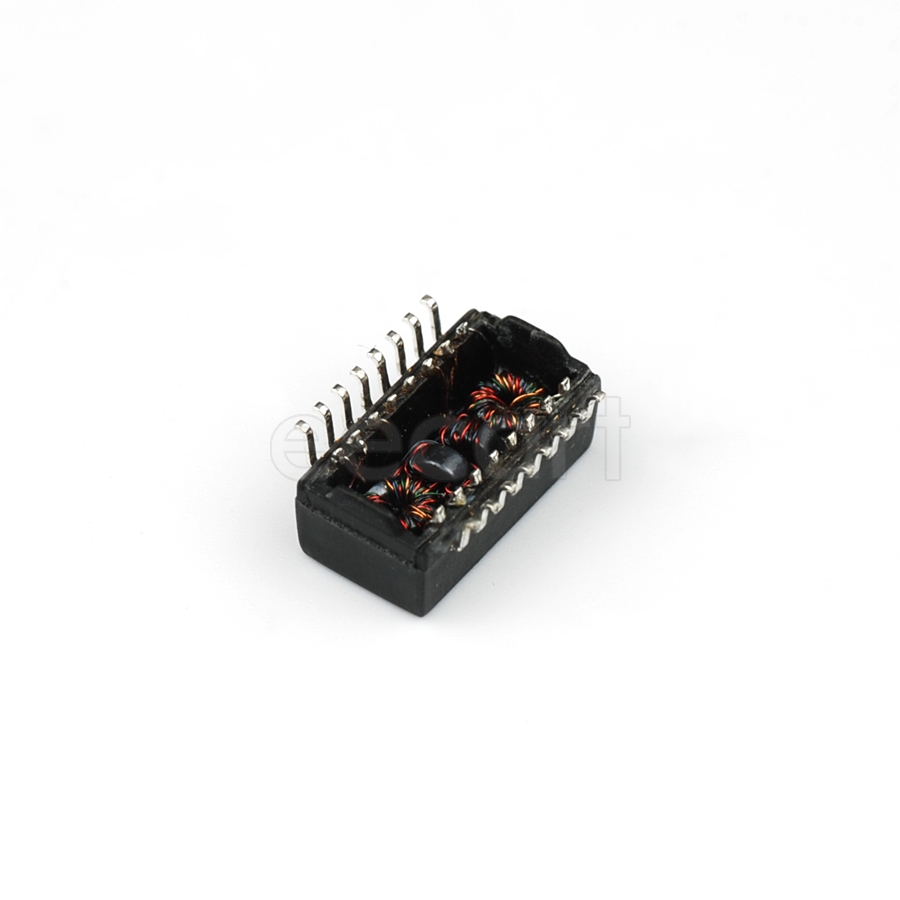

PT61017PEL
Manufacturer:
Bourns
Mfr.Part #:
PT61017PEL
Datasheet:
Description:
Transformers SMD/SMT 350 µH
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 5.65 mm |
| Length | 12.8 mm |
| Width | 6.9 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 16 |
| Height | 5.65 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 700.006425 mg |
| Contact Plating | Tin |
| Lead/Base Style | Gull Wing |
| Type | Module |
| DC Resistance (DCR) | 1.1 Ω |
| Insertion Loss (dB) | 1.1 dB |
| Shielding | Shielded |
| Inductance | 350 µH |
| Turns Ratio | 1:1 |
| Max Frequency | 100 MHz |
| Isolation Voltage | 1.5 kV |
| Max DC Current | 8 mA |
Stock: 690
Distributors
pcbx
pcbxUnit Price$1.20307
Ext.Price$1.20307
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20307 | $1.20307 |
| 10 | $0.98515 | $9.85150 |
| 25 | $0.89432 | $22.35800 |
| 50 | $0.81187 | $40.59350 |
| 100 | $0.73701 | $73.70100 |
| 300 | $0.70619 | $211.85700 |
| 500 | $0.67665 | $338.32500 |
| 1000 | $0.64835 | $648.35000 |
