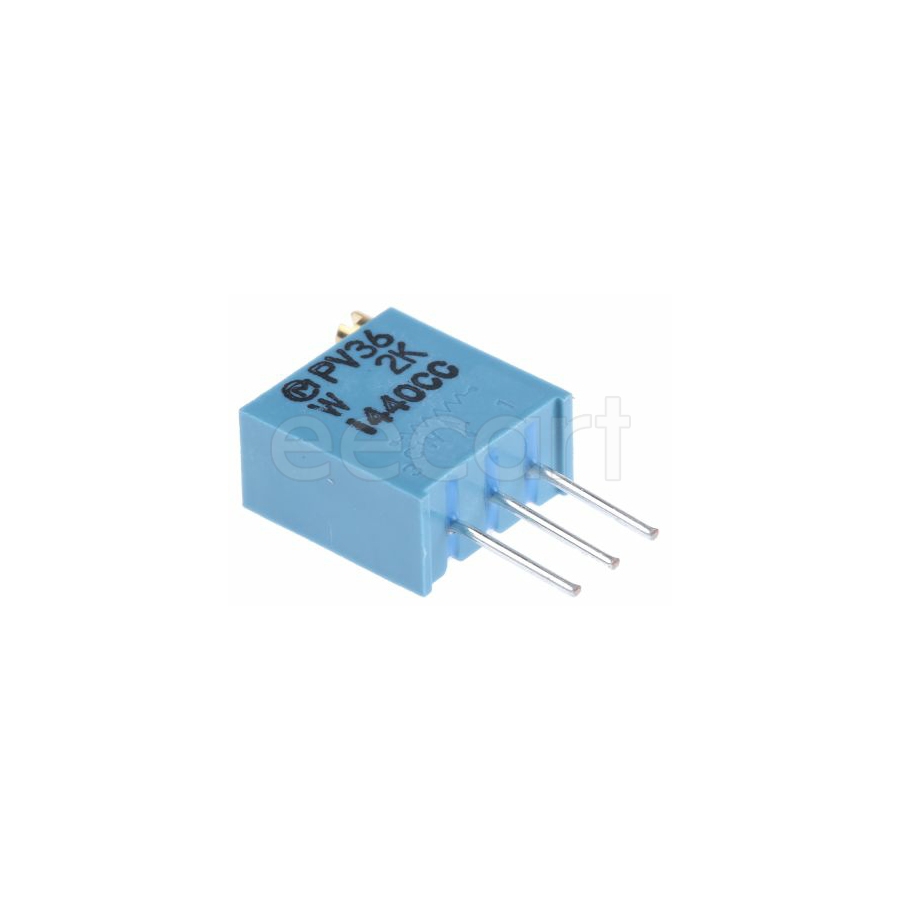

PV36W202C01B00
Manufacturer:
Bourns
Mfr.Part #:
PV36W202C01B00
Datasheet:
Description:
Through-Hole Resistors Through Hole 2 kΩ 10 % 500 mW Cermet
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Termination | PC Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 2 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 25 |
| Height | 10.0076 mm |
| RoHS | Compliant |
| Max Power Dissipation | 500 mW |
| Schedule B | 8533400080 |
| Packaging | Bulk |
Stock: 1030
Distributors
pcbx
pcbxUnit Price$0.95752
Ext.Price$0.95752
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.95752 | $0.95752 |
| 10 | $0.75747 | $7.57470 |
| 25 | $0.73490 | $18.37250 |
| 50 | $0.71301 | $35.65050 |
| 100 | $0.65744 | $65.74400 |
| 300 | $0.62591 | $187.77300 |
| 500 | $0.59589 | $297.94500 |
| 1000 | $0.56596 | $565.96000 |
| 3000 | $0.53293 | $1598.79000 |
| 5000 | $0.50184 | $2509.20000 |
