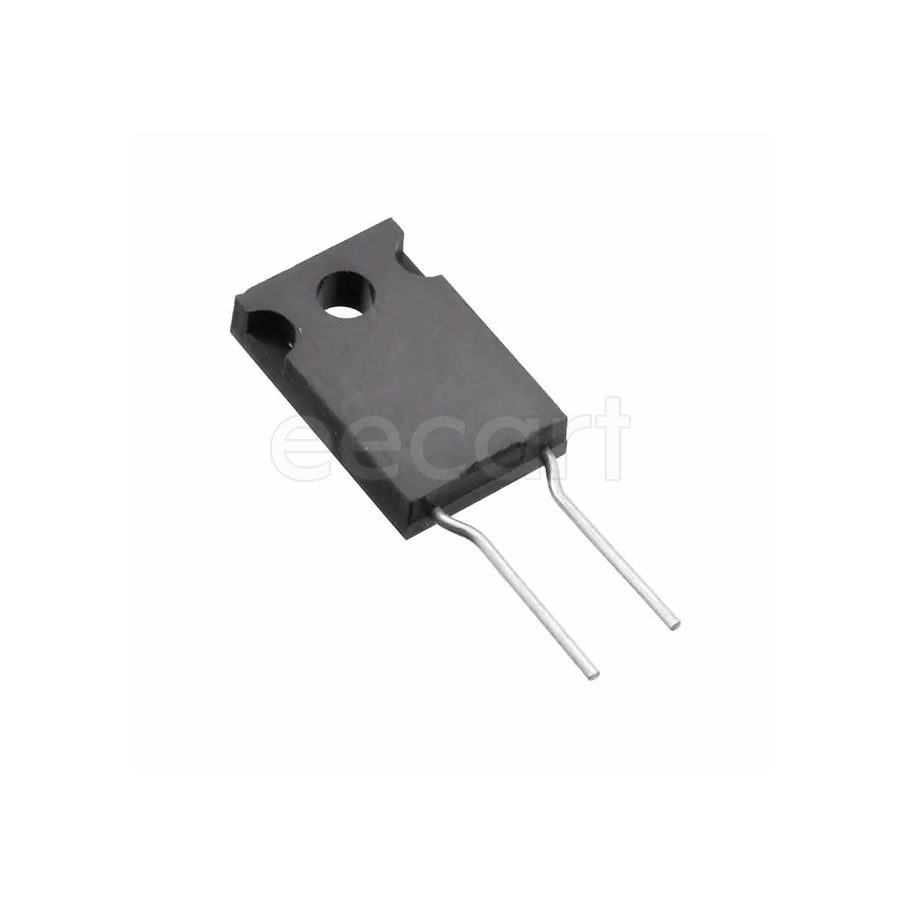

PWR221T-30-1R00J
Manufacturer:
Bourns
Mfr.Part #:
PWR221T-30-1R00J
Datasheet:
Description:
Through-Hole Resistors Through Hole 1 Ω 5 % 30 W Thick Film
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 19.3 mm |
| Length | 10.414 mm |
| Width | 3.175 mm |
| Termination | Radial |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 1 Ω |
| Power Rating | 30 W |
| Composition(Kit Type) | Thick Film |
| Temperature Coefficient | 100 ppm/°C |
| Height | 19.304 mm |
| Voltage Rating | 2000 V (2 kV) |
| RoHS | Compliant |
| Lead Diameter | 720 µm |
| Lead Pitch | 5.08 mm |
| REACH SVHC | No SVHC |
| Features | Automotive AEC-Q200 |
| Terminal Pitch | 5.08 mm |
| Max Power Dissipation | 30 W |
| Number of Terminations | 2 |
| Packaging | Tube |
Stock: 61
Distributors
pcbx
pcbxUnit Price$5.38862
Ext.Price$5.38862
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.38862 | $5.38862 |
| 10 | $3.71723 | $37.17230 |
| 25 | $3.35884 | $83.97100 |
| 50 | $3.03500 | $151.75000 |
| 100 | $2.72893 | $272.89300 |
| 300 | $2.50331 | $750.99300 |
| 500 | $2.29634 | $1148.17000 |
| 1000 | $2.15870 | $2158.70000 |
