PWR263S-35-10R0F
Manufacturer:
Bourns
Mfr.Part #:
PWR263S-35-10R0F
Datasheet:
Description:

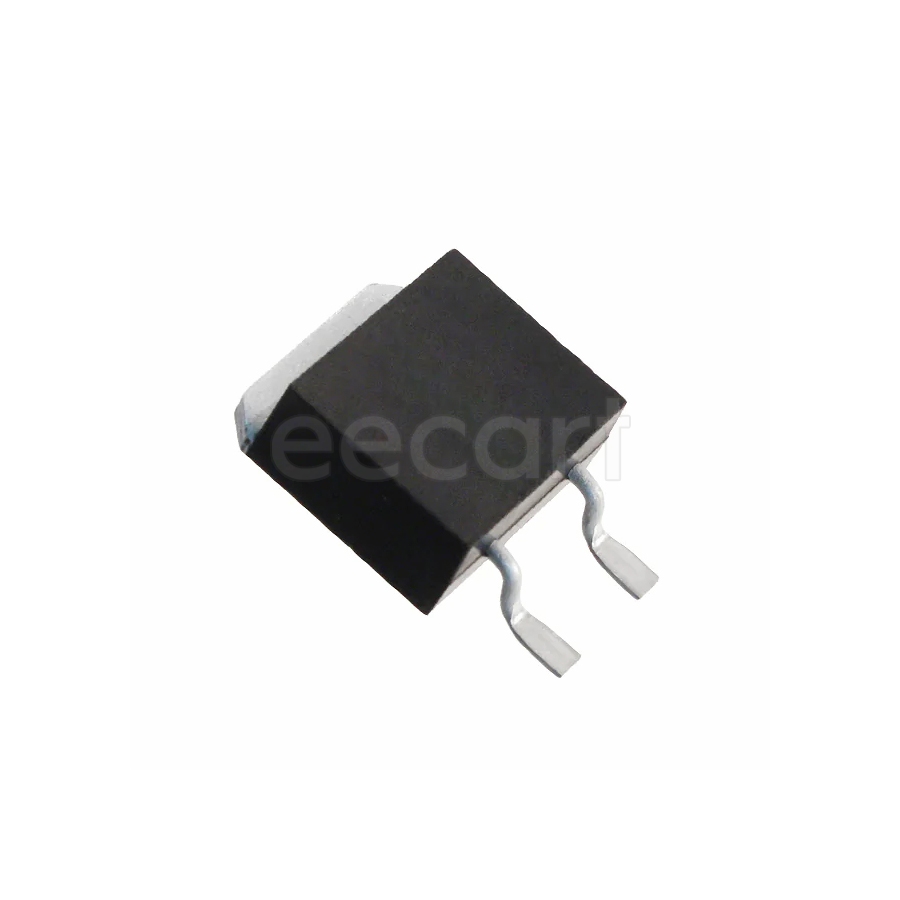

Chip SMD Resistors TO-263-3 SMD/SMT Thick Film 10 Ω 1 % 35 W 100 ppm/°C
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Tolerance | 1 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 10.1 mm |
| Width | 10.3886 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 10 Ω |
| Power Rating | 35 W |
| Composition(Kit Type) | Thick Film |
| Temperature Coefficient | 100 ppm/°C |
| Height | 10.4 mm |
| Depth | 4.5 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Features | Automotive AEC-Q200 |
| Max Power Dissipation | 35 W |
| Number of Terminations | 2 |
| Packaging | Reel |
| Voltage Rating | 250 V |
| RoHS | Compliant |
Stock: 15
Distributors
pcbx
pcbxUnit Price$3.37785
Ext.Price$3.37785
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.37785 | $3.37785 |
| 10 | $2.86221 | $28.62210 |
| 25 | $2.55596 | $63.89900 |
