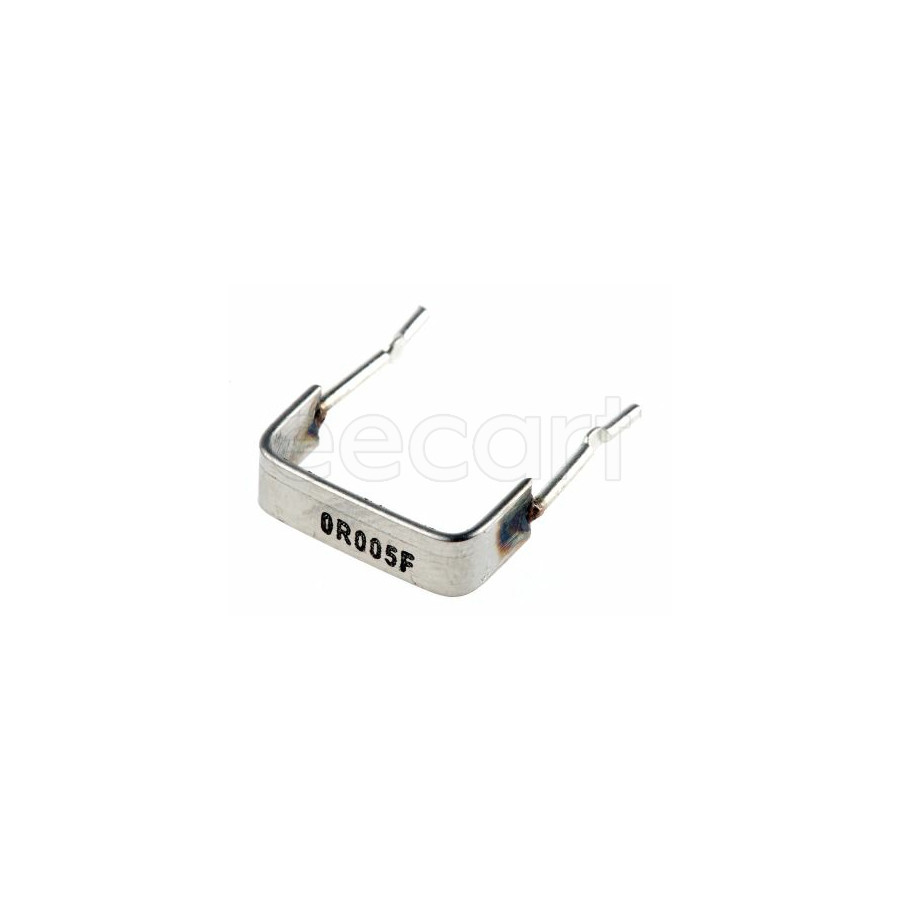

PWR4412-2SCR0050F
Manufacturer:
Bourns
Mfr.Part #:
PWR4412-2SCR0050F
Datasheet:
Description:
Through-Hole Resistors Through Hole 5 mΩ 1 % 3 W Metal Element, Metal Film, Metal Strip
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Height - Seated (Max) | 25.4 mm |
| Length | 16.25 mm |
| Width | 4 mm |
| Termination | Radial |
| Max Operating Temperature | 270 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 5 mΩ |
| Power Rating | 3 W |
| Composition(Kit Type) | Metal Element, Metal Film, Metal Strip |
| Temperature Coefficient | 20 ppm/°C |
| Height | 25.4 mm |
| Packaging | Bulk |
| Depth | 4.8 mm |
| Lead Pitch | 15.24 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Features | Moisture Resistant |
| Military Standard | Not |
| Max Power Dissipation | 3 W |
| Number of Terminations | 2 |
| Threshold Voltage | 100 mV |
| Schedule B | 8533210090 |
| RoHS | Compliant |
