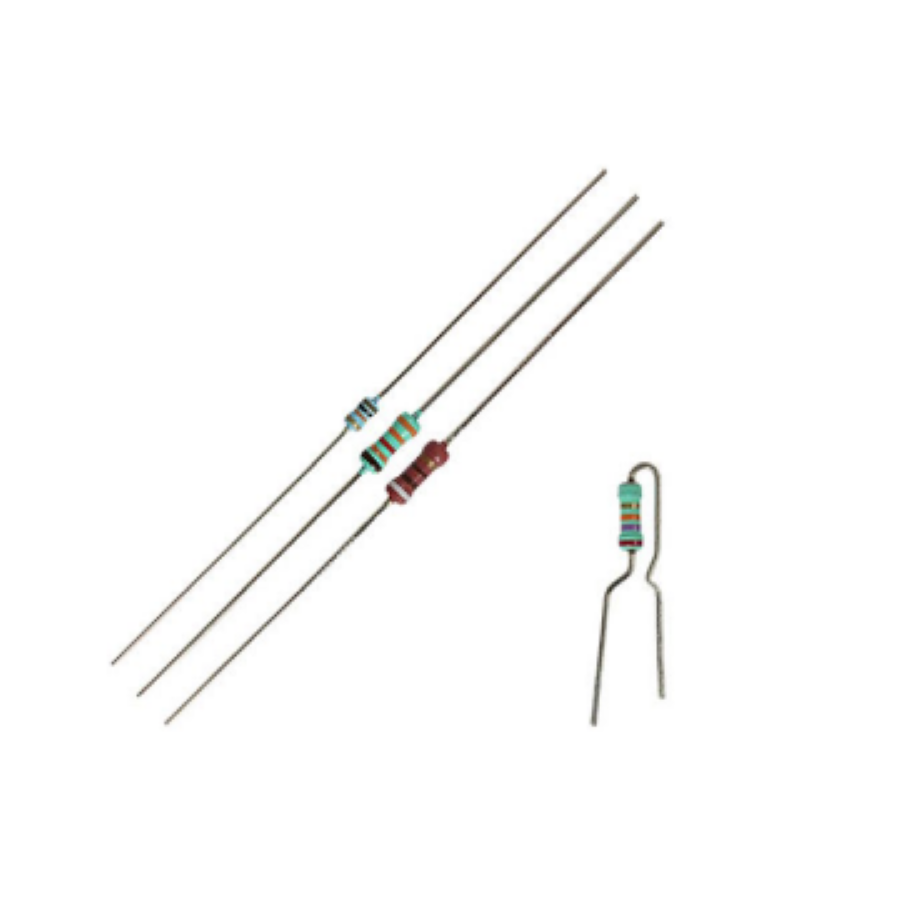

SFR16S0002490FR500
Manufacturer:
Vishay
Mfr.Part #:
SFR16S0002490FR500
Datasheet:
Description:
Through-Hole Resistors Through Hole 249 Ω 1 % 500 mW Metal Film
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 200 V |
| Tolerance | 1 % |
| Length | 3.5052 mm |
| Termination | Axial |
| Diameter | 1.9 mm |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 249 Ω |
| Power Rating | 500 mW |
| Composition(Kit Type) | Metal Film |
| Temperature Coefficient | 100 ppm/°C |
| Packaging | Reel |
| Voltage Rating | 200 V |
| RoHS | Compliant |
| Lead Diameter | 450 µm |
| REACH SVHC | Unknown |
| Max Power Dissipation | 500 mW |
| Number of Terminations | 2 |
| Schedule B | 8533210090 |
Stock: 6786
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.06198 | $0.61980 |
| 50 | $0.05022 | $2.51100 |
| 100 | $0.04069 | $4.06900 |
| 500 | $0.03129 | $15.64500 |
| 1000 | $0.02753 | $27.53000 |
| 3000 | $0.02493 | $74.79000 |
| 5000 | $0.02257 | $112.85000 |
| 10000 | $0.02189 | $218.90000 |
