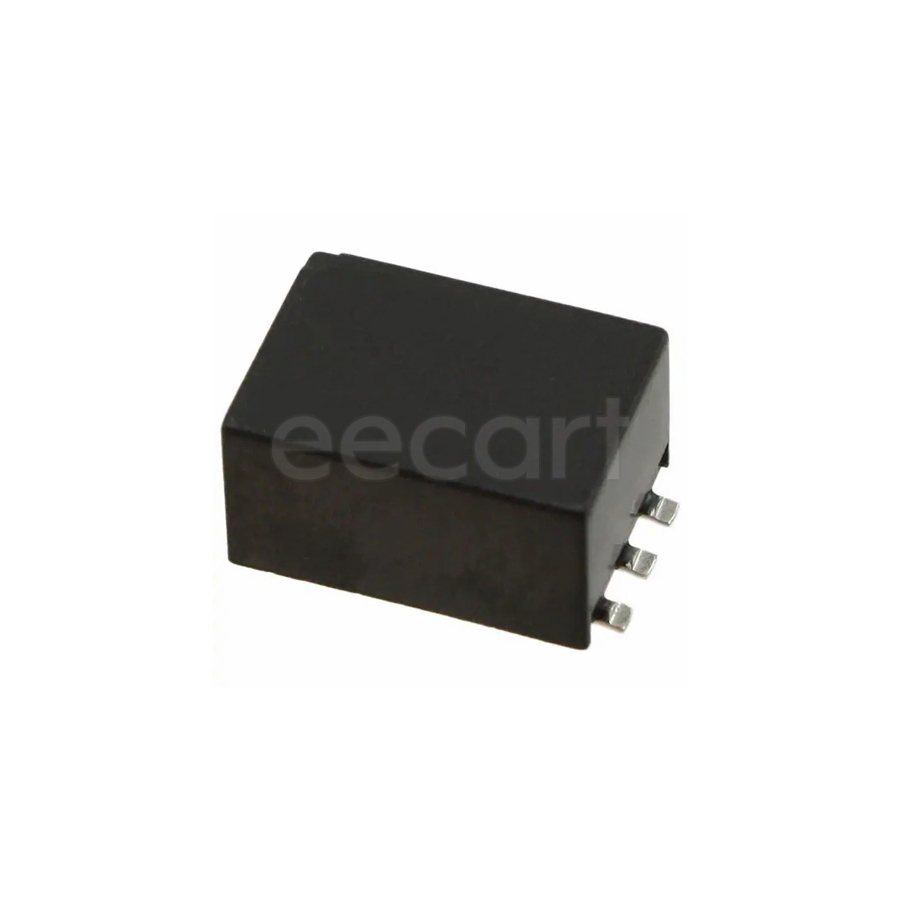

SM-LP-5001
Manufacturer:
Bourns
Mfr.Part #:
SM-LP-5001
Datasheet:
Description:
Transformers SMD/SMT 4 kHz 6 mH
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 7.5 mm |
| Length | 9.6 mm |
| Width | 7.36 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 6 |
| Height | 9.6 mm |
| Packaging | Tube |
| Depth | 14 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Lead/Base Style | Gull Wing |
| Frequency | 4 kHz |
| DC Resistance (DCR) | 115 Ω |
| Insertion Loss (dB) | 2 dB |
| Shielding | Unshielded |
| Inductance | 6 mH |
| Turns Ratio | 1:1 |
| Max Frequency | 4 kHz |
| Isolation Voltage | 2 kV |
| Return Loss | 24 dB |
| Schedule B | 8504312000 |
Stock: 2088
Distributors
pcbx
pcbxUnit Price$1.40807
Ext.Price$1.40807
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.40807 | $1.40807 |
| 10 | $1.26444 | $12.64440 |
| 25 | $1.13278 | $28.31950 |
| 50 | $1.10591 | $55.29550 |
| 100 | $1.07967 | $107.96700 |
| 300 | $1.05406 | $316.21800 |
| 500 | $1.02905 | $514.52500 |
| 1000 | $1.00464 | $1004.64000 |
| 3000 | $0.98081 | $2942.43000 |
| 5000 | $0.95752 | $4787.60000 |
