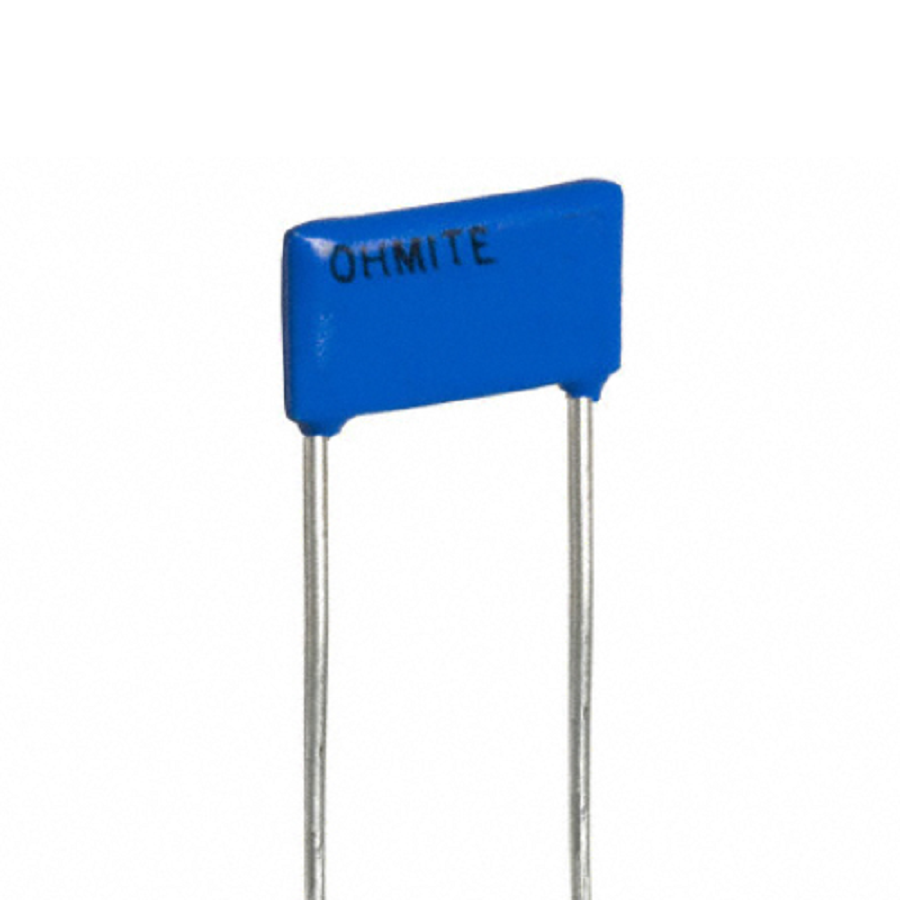

SM102035004FE
Manufacturer:
Ohmite
Mfr.Part #:
SM102035004FE
Datasheet:
Description:
Through-Hole Resistors PCB Mount 5 MΩ 1 % 1 W Thick Film
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 kV |
| Tolerance | 1 % |
| Length | 14.73 mm |
| Width | 2.54 mm |
| Termination | Radial |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 5 MΩ |
| Power Rating | 1 W |
| Composition(Kit Type) | Thick Film |
| Temperature Coefficient | 50 ppm/°C |
| Height | 8.64 mm |
| Packaging | Bulk |
| Voltage Rating | 5000 V (5 kV) |
| Depth | 2.54 mm |
| RoHS | Compliant |
| Lead Diameter | 813 µm |
| Lead Pitch | 10.16 mm |
| REACH SVHC | Unknown |
| Features | High Voltage |
| Lead Length | 33 mm |
| Terminal Pitch | 10.16 mm |
| Max Power Dissipation | 1 W |
| Number of Terminations | 2 |
Stock: 1375
Distributors
pcbx
pcbxUnit Price$2.70329
Ext.Price$2.70329
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.70329 | $2.70329 |
| 10 | $1.79023 | $17.90230 |
| 25 | $1.72625 | $43.15625 |
| 50 | $1.66455 | $83.22750 |
| 100 | $1.37644 | $137.64400 |
| 300 | $1.37044 | $411.13200 |
| 500 | $1.36447 | $682.23500 |
| 1000 | $1.33283 | $1332.83000 |
| 3000 | $1.31388 | $3941.64000 |
| 5000 | $1.29522 | $6476.10000 |
