SMM02040C1509FB000
Manufacturer:
Vishay
Mfr.Part #:
SMM02040C1509FB000
Datasheet:
Description:

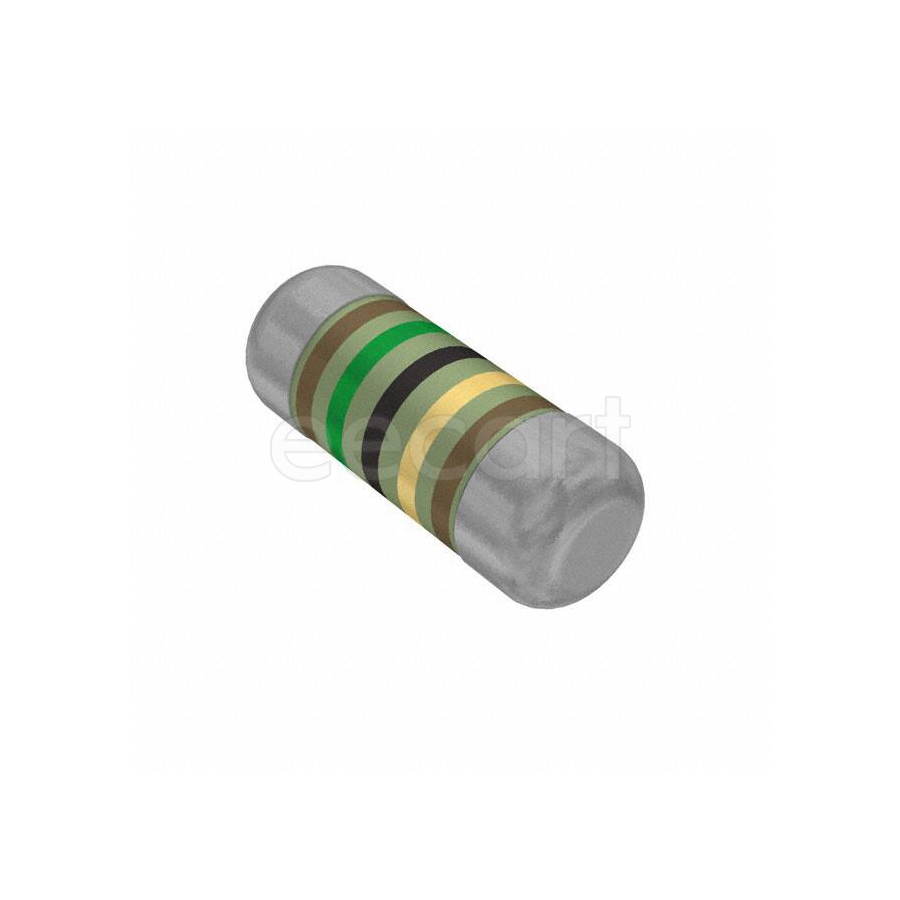

Chip SMD Resistors MELF,0204 SMD/SMT Thin Film 15 Ω 1 % 250 mW 50 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Length | 3.6 mm |
| Width | 1.4 mm |
| Diameter | 1.4 mm |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 15 Ω |
| Power Rating | 250 mW |
| Composition(Kit Type) | Thin Film |
| Temperature Coefficient | 50 ppm/°C |
| Voltage Rating | 200 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Number of Terminations | 2 |
| Packaging | Reel |
Stock: 1344
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.06130 | $0.61300 |
| 50 | $0.04994 | $2.49700 |
| 100 | $0.04069 | $4.06900 |
| 500 | $0.03129 | $15.64500 |
| 1000 | $0.02941 | $29.41000 |
| 3000 | $0.02576 | $77.28000 |
| 5000 | $0.02257 | $112.85000 |
| 10000 | $0.02001 | $200.10000 |
