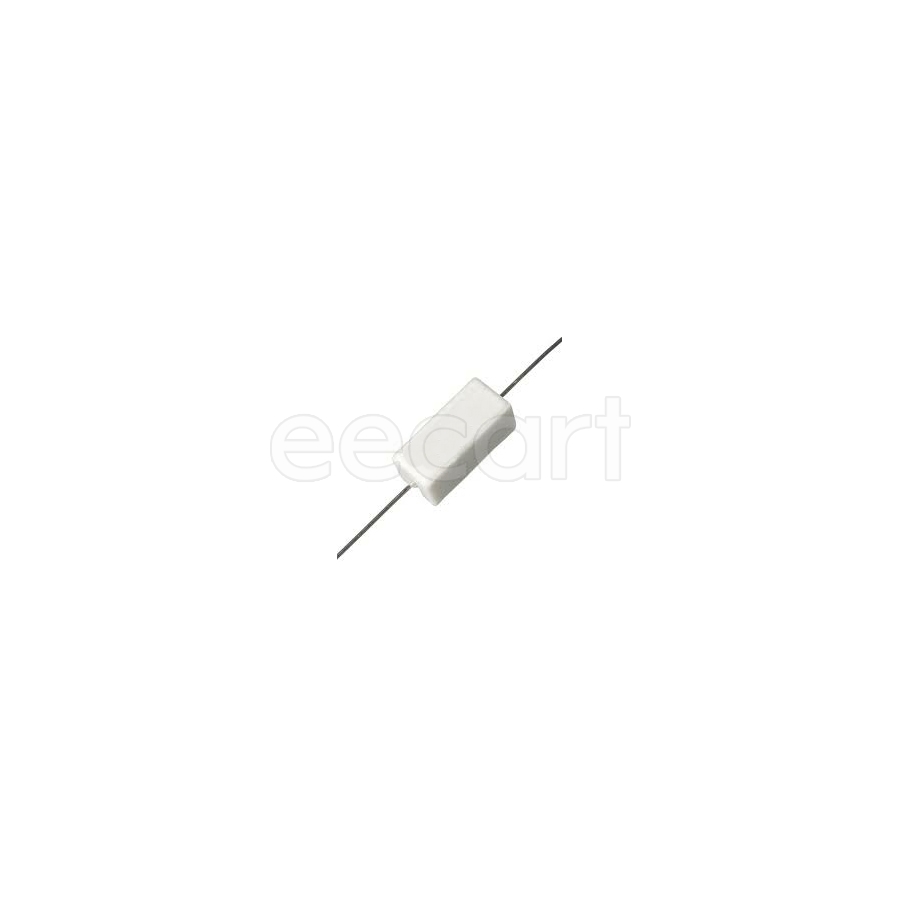

SQP500JB-10R
Manufacturer:
Yageo
Mfr.Part #:
SQP500JB-10R
Datasheet:
Description:
Through-Hole Resistors Through Hole 10 Ω 5 % 5 W Wirewound
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Tolerance | 5 % |
| Length | 21.9964 mm |
| Termination | Axial |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 10 Ω |
| Power Rating | 5 W |
| Composition(Kit Type) | Wirewound |
| Temperature Coefficient | 300 ppm/°C |
| Packaging | Bulk |
| Depth | 9.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Features | Moisture Resistant |
| Military Standard | Not |
| Max Power Dissipation | 5 W |
| Number of Terminations | 2 |
Stock: 9111
Distributors
pcbx
pcbxUnit Price$0.30036
Ext.Price$0.30036
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30036 | $0.30036 |
| 10 | $0.19331 | $1.93310 |
| 50 | $0.14579 | $7.28950 |
| 100 | $0.13002 | $13.00200 |
| 500 | $0.11368 | $56.84000 |
| 1000 | $0.09939 | $99.39000 |
| 3000 | $0.08690 | $260.70000 |
| 5000 | $0.07597 | $379.85000 |
