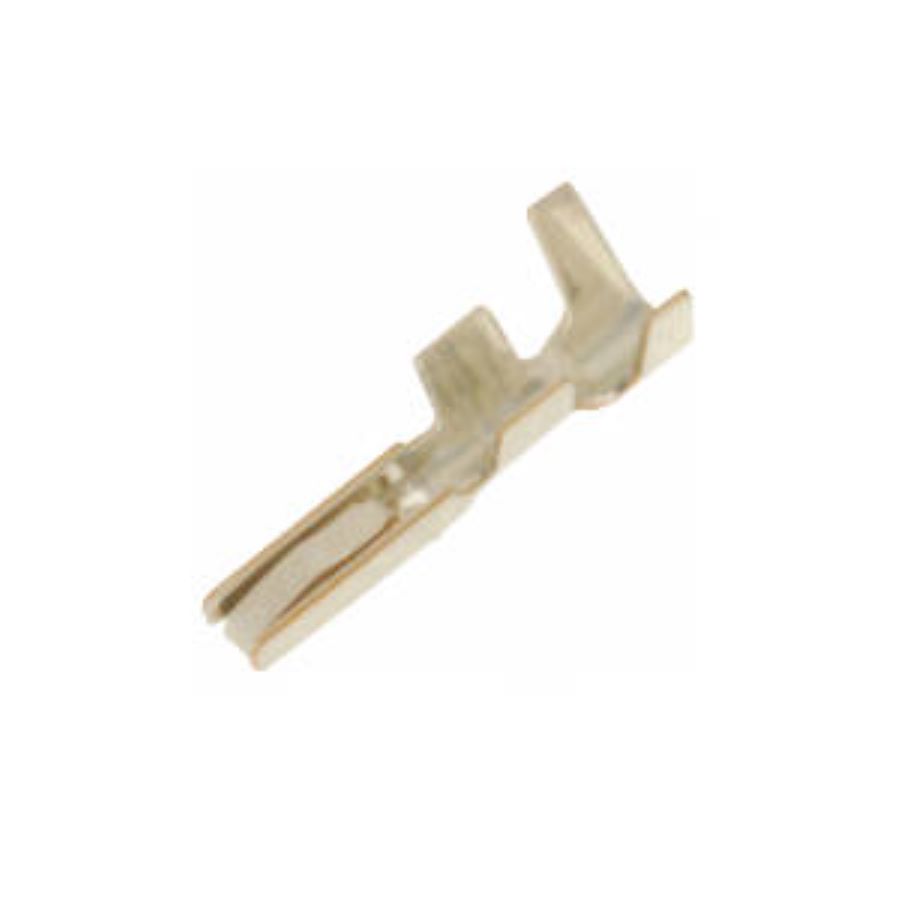

SSHL-002T-P0.2
Manufacturer:
JST
Mfr.Part #:
SSHL-002T-P0.2
Datasheet:
Description:
Terminal Blocks 1.25 mm 1 A 50 V 30 AWG to 26 AWG
| Parameter | Value |
|---|---|
| Length | 4.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Non-Compliant |
| Voltage | |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Orientation | |
| Color | Natural |
| Gender | Male |
| Wire/Cable Gauge | 30 AWG |
| Number of Positions | |
| Number of Positions Per Level | |
| Number of Levels | |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 26 AWG |
| Termination Style | Crimp |
| Connection Method | |
| Wire Gauge Range | 30 AWG to 26 AWG |
| Current Rating (IEC) | |
| Voltage Rating (IEC) |
Stock: 480062
Distributors
pcbx
pcbxUnit Price$0.03934
Ext.Price$0.03934
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.03934 | $0.03934 |
| 10 | $0.01967 | $0.19670 |
| 50 | $0.01513 | $0.75650 |
| 100 | $0.01164 | $1.16400 |
| 500 | $0.01030 | $5.15000 |
| 1000 | $0.00912 | $9.12000 |
| 3000 | $0.00813 | $24.39000 |
| 5000 | $0.00768 | $38.40000 |
| 10000 | $0.00725 | $72.50000 |
| 30000 | $0.00707 | $212.10000 |
| 50000 | $0.00690 | $345.00000 |
| 100000 | $0.00673 | $673.00000 |
