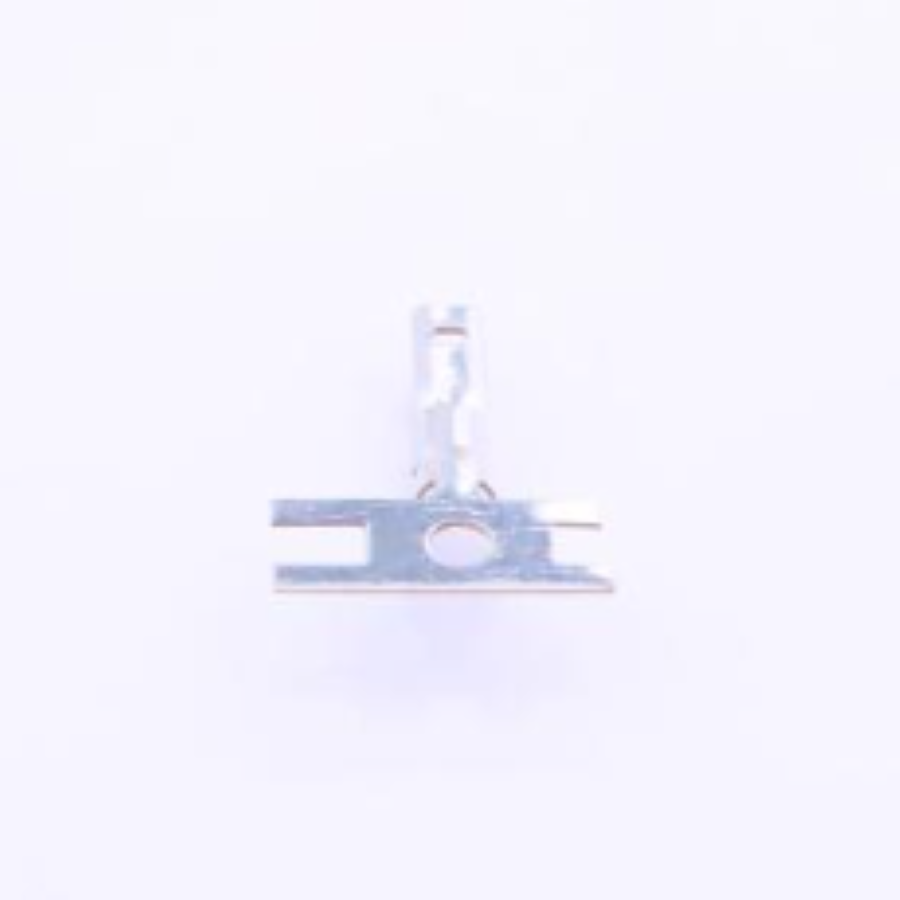

SXA-001T-P0.6
Manufacturer:
JST
Mfr.Part #:
SXA-001T-P0.6
Datasheet:
Description:
Terminals Through Hole 28 AWG Female
| Parameter | Value |
|---|---|
| Length | 6.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Gender | Female |
| Wire/Cable Gauge | 28 AWG |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Termination Style | Crimp |
Stock: 110591
Distributors
pcbx
pcbxUnit Price$0.03120
Ext.Price$0.03120
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.03120 | $0.03120 |
| 10 | $0.01560 | $0.15600 |
| 50 | $0.01200 | $0.60000 |
| 100 | $0.01079 | $1.07900 |
| 500 | $0.00970 | $4.85000 |
| 1000 | $0.00888 | $8.88000 |
| 3000 | $0.00813 | $24.39000 |
| 5000 | $0.00744 | $37.20000 |
| 10000 | $0.00681 | $68.10000 |
| 30000 | $0.00624 | $187.20000 |
